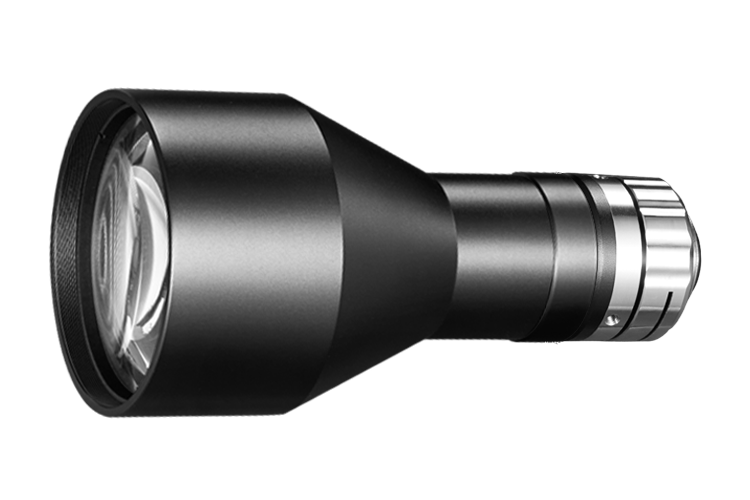

LensBi-Telecentric - RCT125B-26-AL
Raisen Vision · Lens

RCT125B-26-AL

Bi-Telecentric

The Raisen Vision RCT125B-26-AL is a Telecentric lens on a C-Mount mount. It opens to F5 and covers sensors up to 1/2.5" - 7mm. The field of view is 26mm at a working distance of 72±2mm, with distortion of <0.1%. The body measures 97.6mm and weighs 270 g.

Series Type
Telecentric
Aperture
F5
Sensor Size
1/2.5" - 7mm
Working Distance
72±2mm
In stockModel: RCT125B-26-AL
Get a quote
Performance highlights

Engineered for precise industrial imaging

  • Near-zero perspective distortion – Object dimensions remain highly consistent across the image.
  • High measurement accuracy – Ideal for dimensional inspection and precision measurement.
  • Constant magnification – Changes in object distance have very little effect on image size within the telecentric range.
  • High image uniformity – Provides consistent image quality from the center to the edges.
  • Large depth of field – Certain telecentric designs can maintain acceptable focus over a relatively large height range.
  • Excellent edge definition – Suitable for detecting small defects and measuring object contours.
  • Low optical distortion – Important for applications requiring reliable dimensional measurement.
RCT125B-26-ALGet a quote
