Lens
Raisen Vision · Lens
RCT110-72-AL
Bi-Telecentric

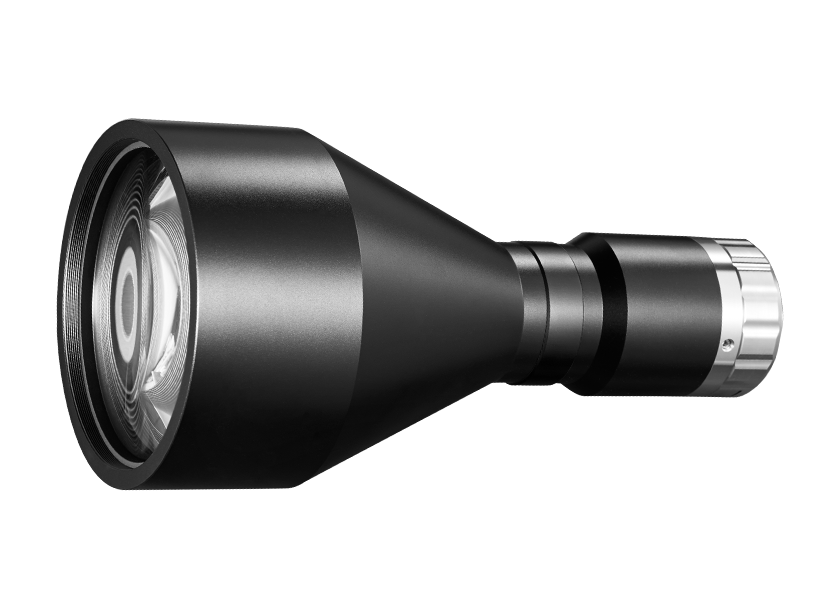

The Raisen Vision RCT110-72-AL is a Telecentric lens on a C-Mount mount. It opens to F6.5 and covers sensors up to 1" - 16.6mm. The field of view is 72mm at a working distance of 178±2mm, with distortion of <0.1%. The body measures 208.5mm and weighs 1.11 kg.
- Series Type
- Telecentric
- Aperture
- F6.5
- Sensor Size
- 1" - 16.6mm
- Working Distance
- 178±2mm
In stockModel: RCT110-72-AL
Performance highlights
Engineered for precise industrial imaging
- Near-zero perspective distortion – Object dimensions remain highly consistent across the image.
- High measurement accuracy – Ideal for dimensional inspection and precision measurement.
- Constant magnification – Changes in object distance have very little effect on image size within the telecentric range.
- High image uniformity – Provides consistent image quality from the center to the edges.
- Large depth of field – Certain telecentric designs can maintain acceptable focus over a relatively large height range.
- Excellent edge definition – Suitable for detecting small defects and measuring object contours.
- Low optical distortion – Important for applications requiring reliable dimensional measurement.
Technical data
Product parameters
Telecentric Lens is a specialized optical lens designed for high-precision machine vision inspection and measurement. Unlike conventional lenses, it minimizes perspective distortion, allowing objects to be measured accurately even when their position or height varies.
Basic
- Series Type
- Telecentric
- Aperture
- F6.5
- Sensor Size
- 1" - 16.6mm
- Working Distance
- 178±2mm
- Magnification
- 0.231x
- Resolution
- 5MP
- Mount
- C-Mount
Optical
- Field of View
- 72mm
- Depth of Field
- ±4mm
- Distortion
- <0.1%
Mechanical
- Dimensions
- 208.5mm
- Weight
- 1.11 kg
Mechanical drawing
Compact housing dimensions
208.5mm
