WWK30-110C-111

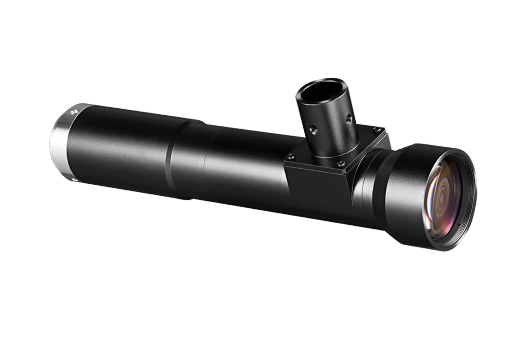

Large - Tele Lens
The Coolens WWK30-110C-111 is a Telecentric lens on a C-Mount mount. It opens to F20.1 and covers sensors up to 1.1" - 18mm. The field of view is 14.19mm x 10.38mm at a working distance of 110±2mm, with distortion of <0.1%. The body measures 166.1mm.
- Series Type
- Telecentric
- Aperture
- F20.1
- Sensor Size
- 1.1" - 18mm
- Working Distance
- 110±2mm
In stockModel: WWK30-110C-111
Performance highlights
Engineered for precise industrial imaging
- Object side telecentric lens, support 5Mp-20Mp
- area scan camera.
- High defi nition, low distortion, good
- telecentricity, especially suitable for high precision AOI and positioning applications.
- Built-in coaxial lighting, especially suitable for inspection of wafers, glass devices.
- Quickly customization apply to different camera specifications, as well as magnification, working distance, DOF requirements.
Technical data
Product parameters
Telecentric Lens is a specialized optical lens designed for high-precision machine vision inspection and measurement. Unlike conventional lenses, it minimizes perspective distortion, allowing objects to be measured accurately even when their position or height varies.
Basic
- Series Type
- Telecentric
- Aperture
- F20.1
- Sensor Size
- 1.1" - 18mm
- Working Distance
- 110±2mm
- Magnification
- 3.0x
- Resolution
- >20MP - 4.5µm
- Mount
- C-Mount
Optical
- Field of View
- 14.19mm x 10.38mm
- Depth of Field
- ±0.09mm@F20.1
- Distortion
- <0.1%
Mechanical
- Dimensions
- 166.1mm
Mechanical drawing
Compact housing dimensions
166.1mm
