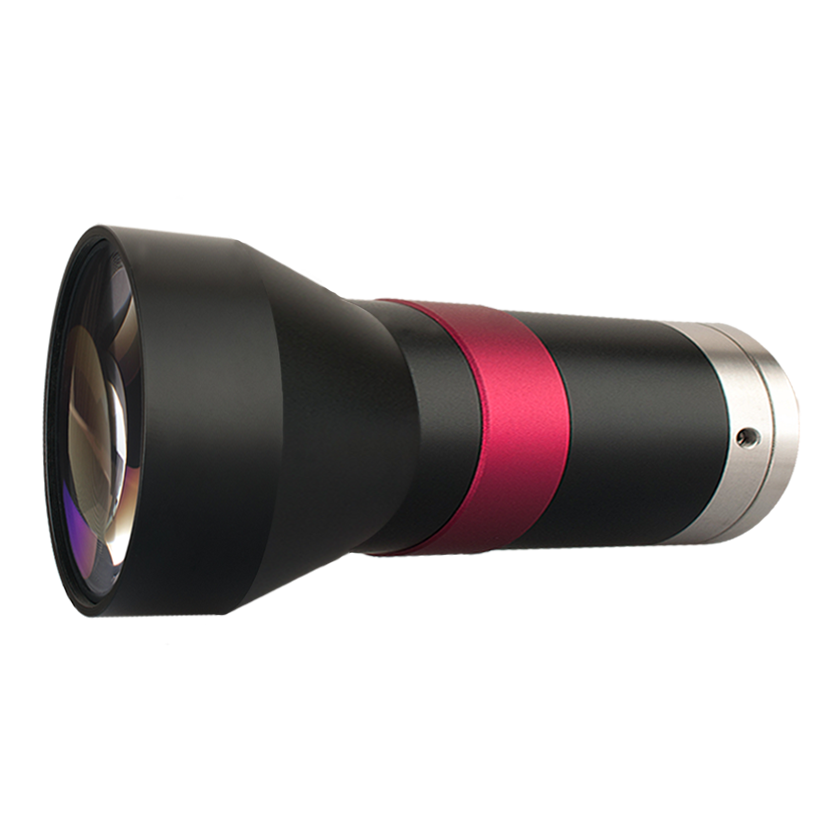

DTCM110-48
Bi-Telecentric
The Coolens DTCM110-48 is a Telecentric lens on a C-Mount mount. It opens to F#6.5 and covers sensors up to 1". The field of view is 48mm at a working distance of 128±3mm, with distortion of <0.1%. The body measures 155.4 and weighs 500g.
- Series Type
- Telecentric
- Aperture
- F#6.5
- Sensor Size
- 1"
- Working Distance
- 128±3mm
In stockModel: DTCM110-48
Performance highlights
Engineered for precise industrial imaging
- Excellent resolution for high pixel cameras
- Low distortion, good telecentricity, big aperture and big depth of field for high end application
- Dual-telecentric design for excellent imaging
- Precision-calibrated with test report
Technical data
Product parameters
Bi-Telecentric Lens is a high-precision optical lens designed for machine vision measurement and inspection applications where dimensional accuracy, image stability, and low distortion are critical.
Basic
- Series Type
- Telecentric
- Aperture
- F#6.5
- Sensor Size
- 1"
- Working Distance
- 128±3mm
- Magnification
- 0.346X
- Mount
- C-Mount
Optical
- Field of View
- 48mm
- Depth of Field
- ±5.3mm@F16
- Distortion
- <0.1%
Mechanical
- Dimensions
- 155.4
- Weight
- 500g

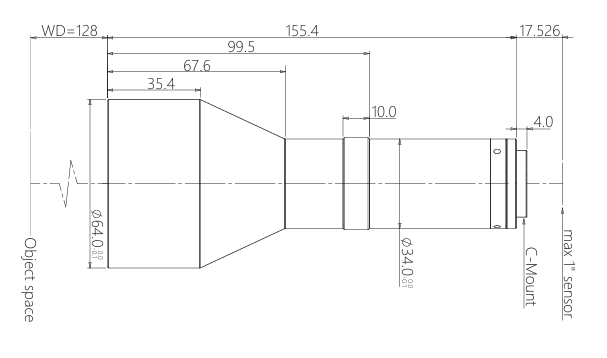

Mechanical drawing
Compact housing dimensions
