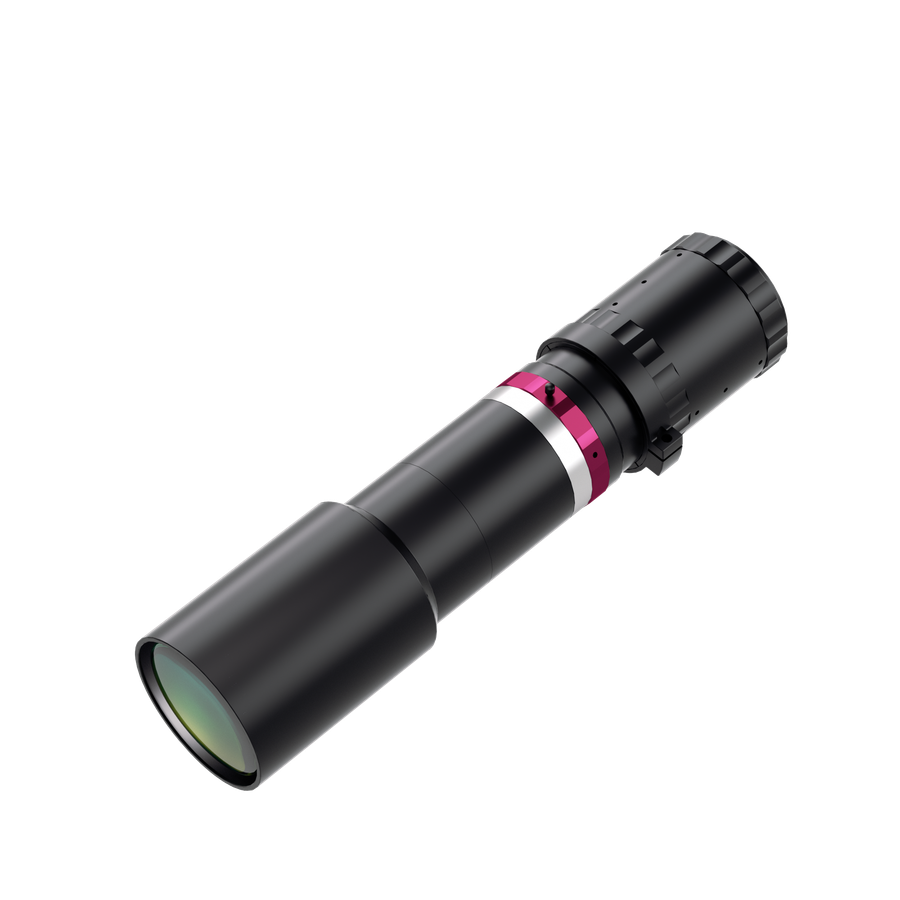

DTCA35F-44-G-M58-AL
High-pre Lens Tele
The Coolens DTCA35F-44-G-M58-AL is a Telecentric lens on an M58 mount. It opens to F6.1 - F32 and covers sensors up to 44 mm. The field of view is 36.43mm x 27.62mm at a working distance of 102 mm, with distortion of 0.04%. The body measures 297.3 mm.
- Series Type
- Telecentric
- Aperture
- F6.1 - F32
- Sensor Size
- 44 mm
- Working Distance
- 102 mm
In stockModel: DTCA35F-44-G-M58-AL
Performance highlights
Engineered for precise industrial imaging
- DTCA 35F series lenses are designed specially for
- compatibility with large sensor.
- Support newest developments in machine vision field: 35Full(44mm) camera and 65Mp , 71Mp camera.
- Extreme imaging aperture, extraordinary aberration correction, diffraction limited imaging resolution.
- Adjustable aperture, good telecentricity, near zero distortion, for high quality imaging.
Technical data
Product parameters
Telecentric Lens is a specialized optical lens designed for high-precision machine vision inspection and measurement. Unlike conventional lenses, it minimizes perspective distortion, allowing objects to be measured accurately even when their position or height varies.
Basic
- Series Type
- Telecentric
- Aperture
- F6.1 - F32
- Sensor Size
- 44 mm
- Working Distance
- 102 mm
- Magnification
- 1.0x
- Resolution
- 71MP - 4.0 µm
- Mount
- M58
Optical
- Field of View
- 36.43mm x 27.62mm
- Depth of Field
- 0.49mm -2.56mm
- Distortion
- 0.04%
Mechanical
- Dimensions
- 297.3 mm
Mechanical drawing
Compact housing dimensions
297.3 mm
