LensLens 12mm - RC-FA1228-10M
Raisen Vision · Lens

RC-FA1228-10M

Lens 12mm

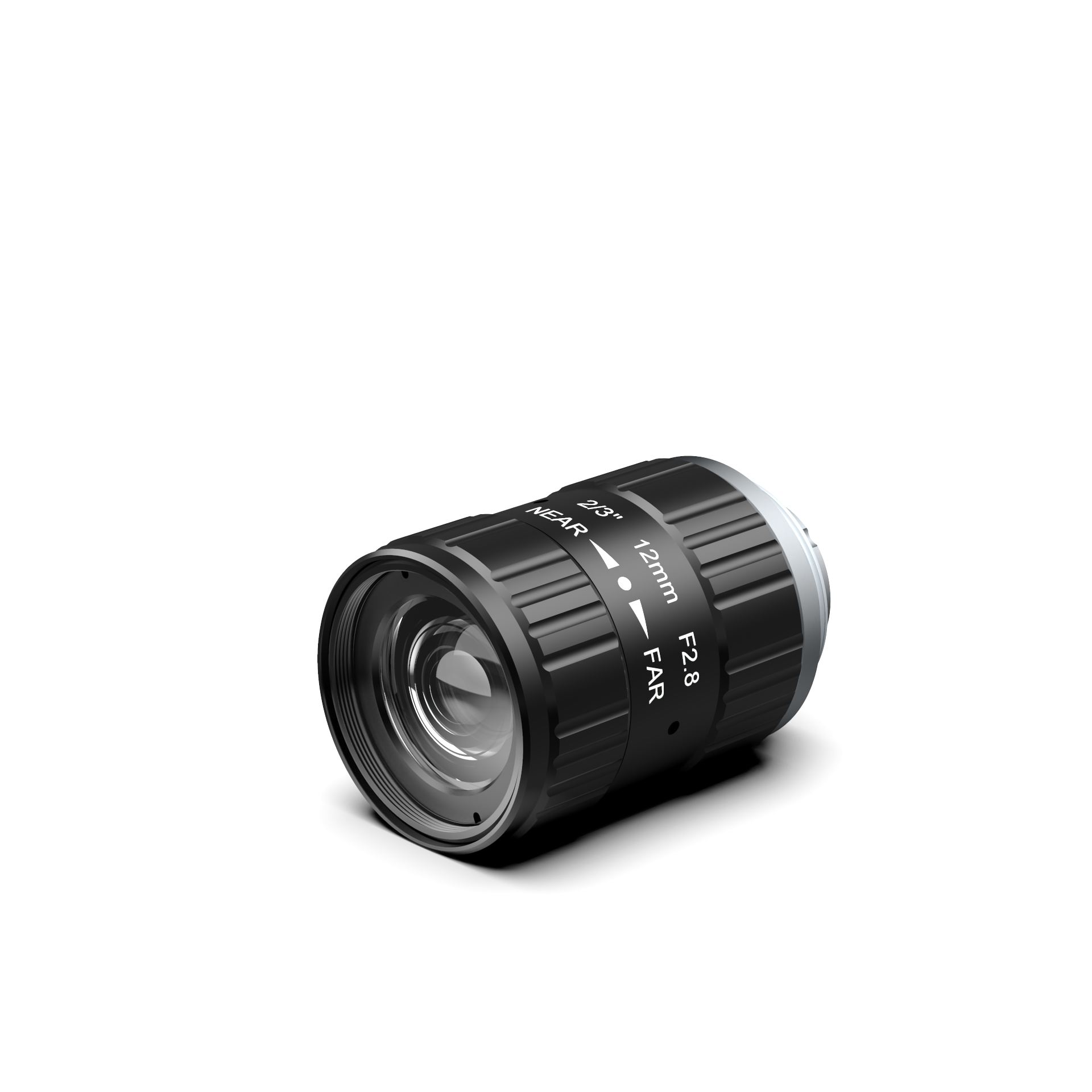

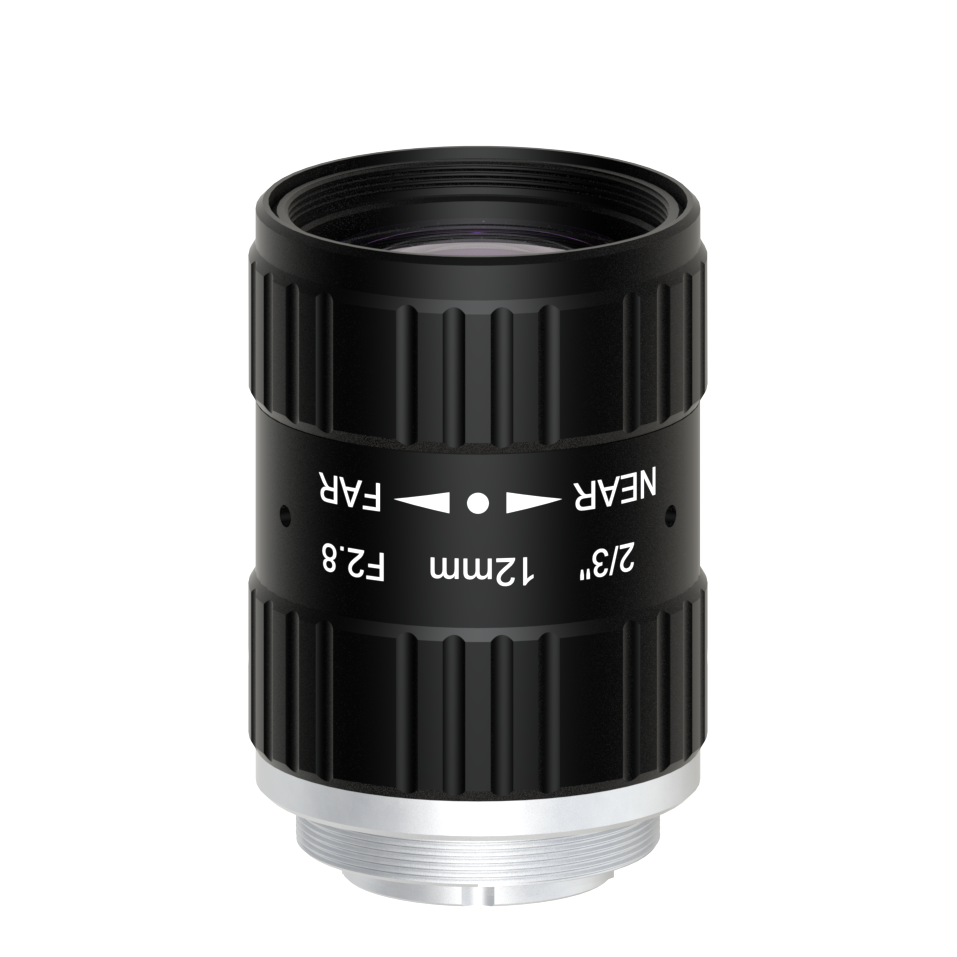

The Raisen Vision RC-FA1228-10M is a 12mm FA lens on a C-Mount mount. It opens to F2.8 - F16 and covers sensors up to 2/3" - 11.1mm. The field of view is 40.44°×30.89°, with distortion of -0.13% @0.5m. The body measures Φ32×43.5mm and weighs 78.4g.

Series Type
FA
Focal Length
12mm
Aperture
F2.8 - F16
Sensor Size
2/3" - 11.1mm
In stockModel: RC-FA1228-10M
Get a quote
Performance highlights

Engineered for precise industrial imaging

  • High optical resolution – Provides sharp images for detecting small defects and fine details.
  • Low distortion – Maintains accurate object geometry, which is important for measurement and dimensional inspection.
  • Stable optical performance – Designed for continuous operation in industrial environments.
  • Wide range of focal lengths – Available in different focal lengths to match various FOV, working distance, and camera sensor sizes.
  • Compatibility with industrial cameras – Commonly used with 1/1.8", 1/1.7", 2/3", 1.1", and other machine-vision sensors.
  • Manual or motorized adjustment – Depending on the model, focus and aperture can be adjusted manually or automatically.
  • C-mount interface – Widely compatible with industrial cameras.
RC-FA1228-10MGet a quote
