Industrial Camera
iRayple · Industrial Camera
SCAH-P20-F19-RCU-0C
Camera 20MP
The iRayple SCAH-P20-F19-RCU-0C is a 20 MP colour USB3 industrial camera. It is built on the Sony - IMX183 (1" CMOS) sensor with a rolling shutter and reads out 5472 × 3648 at 19.1 fps. It takes C-mount optics and connects over USB3 (USB 3.0). It draws ≈2.9W (USB3.0 provide power supply) and operates from -30℃~+50℃. The body measures 29 mm × 44 mm × 30 mm and weighs Approx 85g.
- Series Type
- Area Camera
- Sensor
- 1" CMOS
- Image Sensor
- Sony - IMX183
- Shutter
- Rolling
In stockModel: SCAH-P20-F19-RCU-0C
Performance highlights
Engineered for precise industrial imaging
- USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface；
- Compact size of 29mmx29mmx30mm
- 256MB on-board cache for data transmission or image resend
- Support Software Trigger/Hardware Trigger/Free Run Mode
- Support ISP functions including Gamma,LUT,BlackLevel ,Correction,TargetBrightness,Contrast,FFC,Denoising Sharpness,BalanceWhite,CCM,ColorAdjustment,Multi-color temperature adjustment, multi-function interpolation adjustment etc.
- Support multiple image data formats output,ROI,Binning(Including Pixel arbitrary scaling),Mirror, AutoFunction,Sequencer（ Gain、Exposure） etc.
- Compatible with USB3.0 Vision protocol and GenICam standard
- Conform to CE/UKCA/UL/KC,RoHS
Technical data
Product parameters
The A Pro area scan products are designed with a compact and lightweight form, meanwhile offering high industrial performance.
Basic
- Series Type
- Area Camera
- Sensor
- 1" CMOS
- Image Sensor
- Sony - IMX183
- Shutter
- Rolling
- Resolution
- 5472 × 3648
- Frame Rate
- 19.1 fps
- Bit Depth
- 12
- Type
- Color
- Pixel Size
- 2.4 μm × 2.4 μm
- Image Format
- Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed,YUV422_8_UYVY,YUV422_8,RGB8,BGR8
- Binning
- off/onebytwo/twobyone/twobytwo/onebyfour/fourbyone/...
- Dynamic Range
- 61.5 dB
- ROI
- Support
- X Flip
- Support
- Y Flip
- Support
- Gain
- 1～32X
- Exposure Time
- 16 μs ~ 10sec
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
- SPC
- Support
Performance
- User Setting
- Support three sets of user-defined configurations
- Image Buffer
- 256MB
Communication
- Interface
- USB 3.0
- Mount
- C-mount
Power Supply
- Input Voltage
- Power supply via USB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V
- Power
- ≈2.9W (USB3.0 provide power supply)
Environment
- Operating Temperature
- -30℃~+50℃
- Storage Temperature
- -30~80℃
Mechanical
- Dimensions
- 29 mm × 44 mm × 30 mm (not including lens mount and rear case connector)
- Weight
- Approx 85g

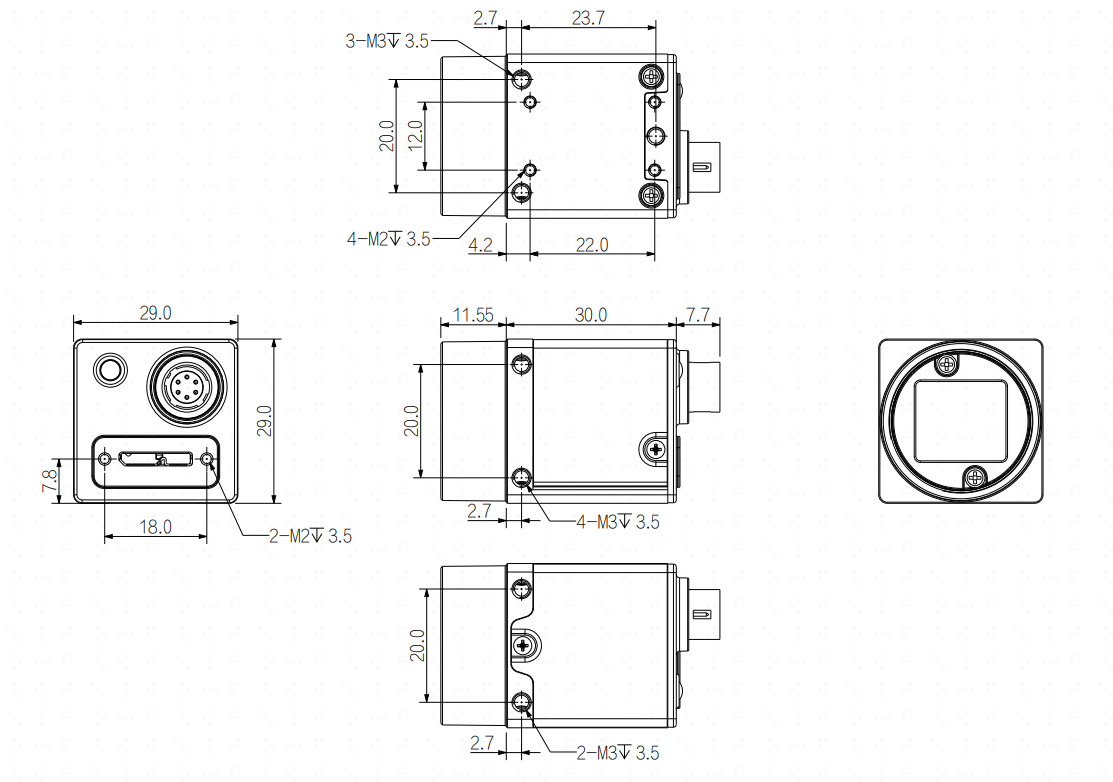

Mechanical drawing
Compact housing dimensions
29 mm × 44 mm × 30 mm
