AH7500MU075E
Camera 5MP
The iRayple AH7500MU075E is a 5 MP monochrome USB3 industrial camera. It is built on the IMX250 (2/3" - CMOS) sensor with a global shutter and reads out 2448 × 2048 at 75.2 fps. It takes C-mount optics and connects over USB3 (USB 3.0), outputting Mono8/10/10Packed/Mono12/Mono12Packed at up to 12 bits. It draws ≈2.8W(USB3.0 provide power supply) and operates from -30℃~+50℃. The body measures 29 mm×29 mm×30 mm and weighs Approx 85g.
- Series Type
- Area Camera
- Sensor
- 2/3" - CMOS
- Image Sensor
- IMX250
- Shutter
- Global
In stockModel: AH7500MU075E
Performance highlights
Engineered for precise industrial imaging
- USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface；
- Compact size of 29mmx29mmx30mm
- 256MB on-board cache for data transmission or image resend
- Support Software Trigger/Hardware Trigger/Free Run Mode
- Support ISP functions including Gamma,LUT,BlackLevel,Correction,TargetBrightness,Contrast,FFC,Denoising Sharpness etc.
- Support multiple image data formats output,ROI,Binning(Including Pixel arbitrary scaling),Mirror, AutoFunction,Sequencer（ Gain、Exposure） etc.
- Compatible with USB3.0 Vision protocol and GenICam standard
- Conform to CE/UKCA/UL/KC,RoHS
Technical data
Product parameters
The A Pro area scan products are designed with a compact and lightweight form, meanwhile offering high industrial performance.
Basic
- Series Type
- Area Camera
- Sensor
- 2/3" - CMOS
- Image Sensor
- IMX250
- Shutter
- Global
- Resolution
- 2448 × 2048
- Frame Rate
- 75.2 fps
- Bit Depth
- 12
- Type
- Mono
- Pixel Size
- 3.5 μm × 3.5 μm
- Image Format
- Mono8/10/10Packed/Mono12/Mono12Packed
- Binning
- off/onebytwo/twobyone/twobytwo/onebyfour/fourbyone/...
- Dynamic Range
- 70 dB
- ROI
- Support
- X Flip
- Support
- Y Flip
- Support
- Gain
- 1～32X
- Exposure Time
- SE: 1 μs ~ 14 μsUE: 15 μs ~ 10 sec
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
- SPC
- Support
Performance
- User Setting
- Support three sets of user-defined configurations
- Image Buffer
- 256MB
Communication
- Interface
- USB 3.0
- Digital IO
- 1× 6 pin Hirose: 1× Opto-isolated input, 1× Opto-isolated output, 1 configurable input and output
- Mount
- C-mount
Power Supply
- Input Voltage
- Power supply via USB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V
- Power
- ≈2.8W(USB3.0 provide power supply)
Environment
- Operating Temperature
- -30℃~+50℃
- Storage Temperature
- -30~80℃
Mechanical
- Dimensions
- 29 mm×29 mm×30 mm (not including lens mount and rear case connector)
- Weight
- Approx 85g

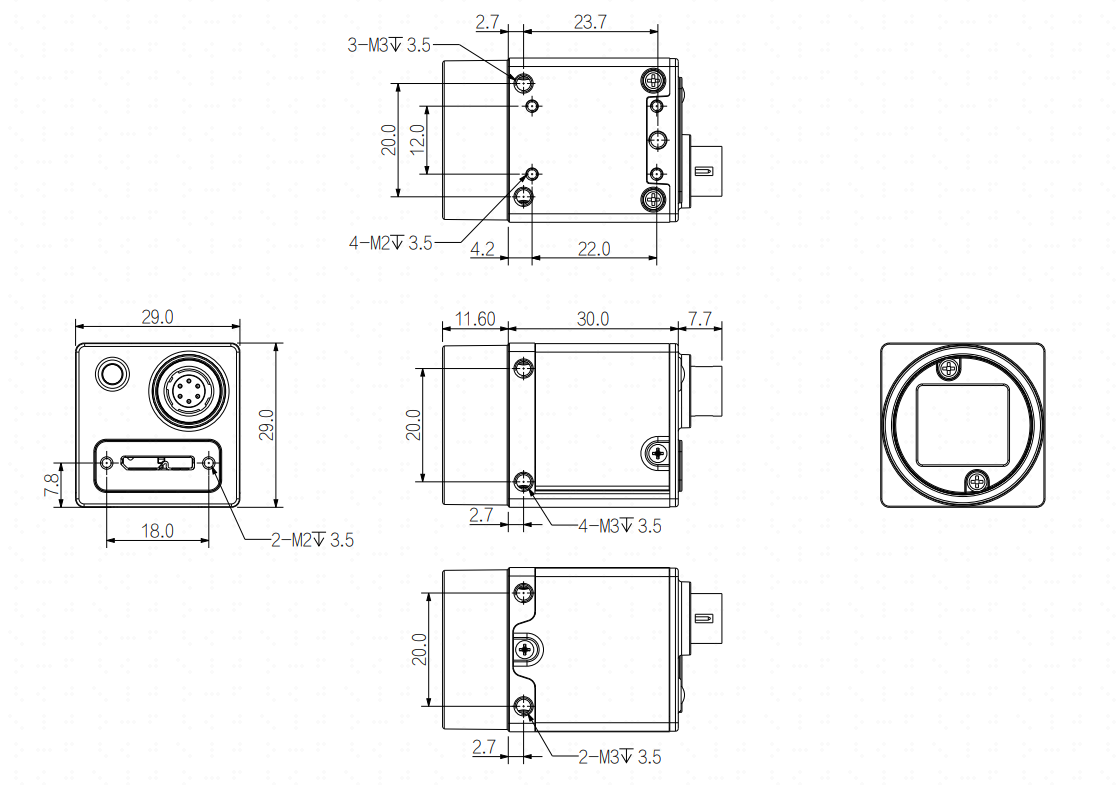

Mechanical drawing
Compact housing dimensions
29 mm×29 mm×30 mm
