RS3013MU-05-MGGF1E
Handheld Code 3000
The iRayple RS3013MU-05-MGGF1E is a 1.3 MP smart code. It uses a global shutter and reads out 1280 × 1024 at 50 fps. It draws 2.5W(standard);4.5W(Max) and operates from -20℃～+50℃. The body measures 89 mm × 78 mm × 180 mm and weighs Approx.210g (Without cable).
- Series Type
- RS 3000
- Resolution
- 1280 × 1024
- Frame Rate
- 50 fps
- Shutter
- Global
In stockModel: RS3013MU-05-MGGF1E
Performance highlights
Engineered for precise industrial imaging
- Highly efficient AI algorithm ensures excellent code reading performance in complex scenarios
- Integrated three-color(Red/White/Blue) illumination, actively switches to the optimal light source
- High frame rate CMOS image sensor with 1280*1024 resolution enables high accuracy and fast scanning
- Intelligent tuning tool provides optimal settings for Direct Part Mark(DPM) code reading
Technical data
Product parameters
Handheld Code Readers provide a flexible and efficient solution for barcode and 2D code identification in industrial and commercial environments. Designed for fast and reliable scanning, they can read a wide range of codes, including 1D barcodes, QR codes, Data Matrix, and other commonly used industrial codes.
Basic
- Series Type
- RS 3000
- Resolution
- 1280 × 1024
- Frame Rate
- 50 fps
- Shutter
- Global
- Function
- 1D：Code 39, Code 93, Code 128, ITF 14/25, CodaBar, EAN8, EAF13, UPCA, UPCE、Pharmacode；2D：QR Code, Data Matrix、Micro QR、QR Model1、PDF417
- Light Source
- Red/white/blue three-color integrated light
- Trigger Mode
- Key push scan, Auto sensing scan
- Software
- EasyID
Decoding
- DPM Support
- 4mil
- Reading Distance
- 1D： Code39（5 mil）：40~ 160 mm Code128（10 mil）：10~ 400 mm 2D： QR Code（7 mil）：65~ 120 mm Data Matrix（10 mil）：30~ 200 mm QR Code（15 mil）：15~ 280 mm QR Code（20 mil）：20~ 400 mm
- Reading Field
- Horizontal 43°, vertical 36°
Communication
- Communication
- COM - Ethernet
- Connector Port
- USB2.0, RS-232, DC terminal
- Communicate Protocol
- SmartSDK, USB(HID), RS-232
Power Supply
- Input Voltage
- 5 VDC(USB)；Support DC12V～24V wide range voltage input
- Power
- 2.5W(standard);4.5W(Max)
Environment
- Operating Temperature
- -20℃～+50℃
- Storage Temperature
- -40℃～+70℃
- Relative Humidity
- 20% RH to 80% RH (no condensation)
Mechanical
- Dimensions
- 89 mm × 78 mm × 180 mm
- Weight
- Approx.210g (Without cable)
- Protection
- IP54

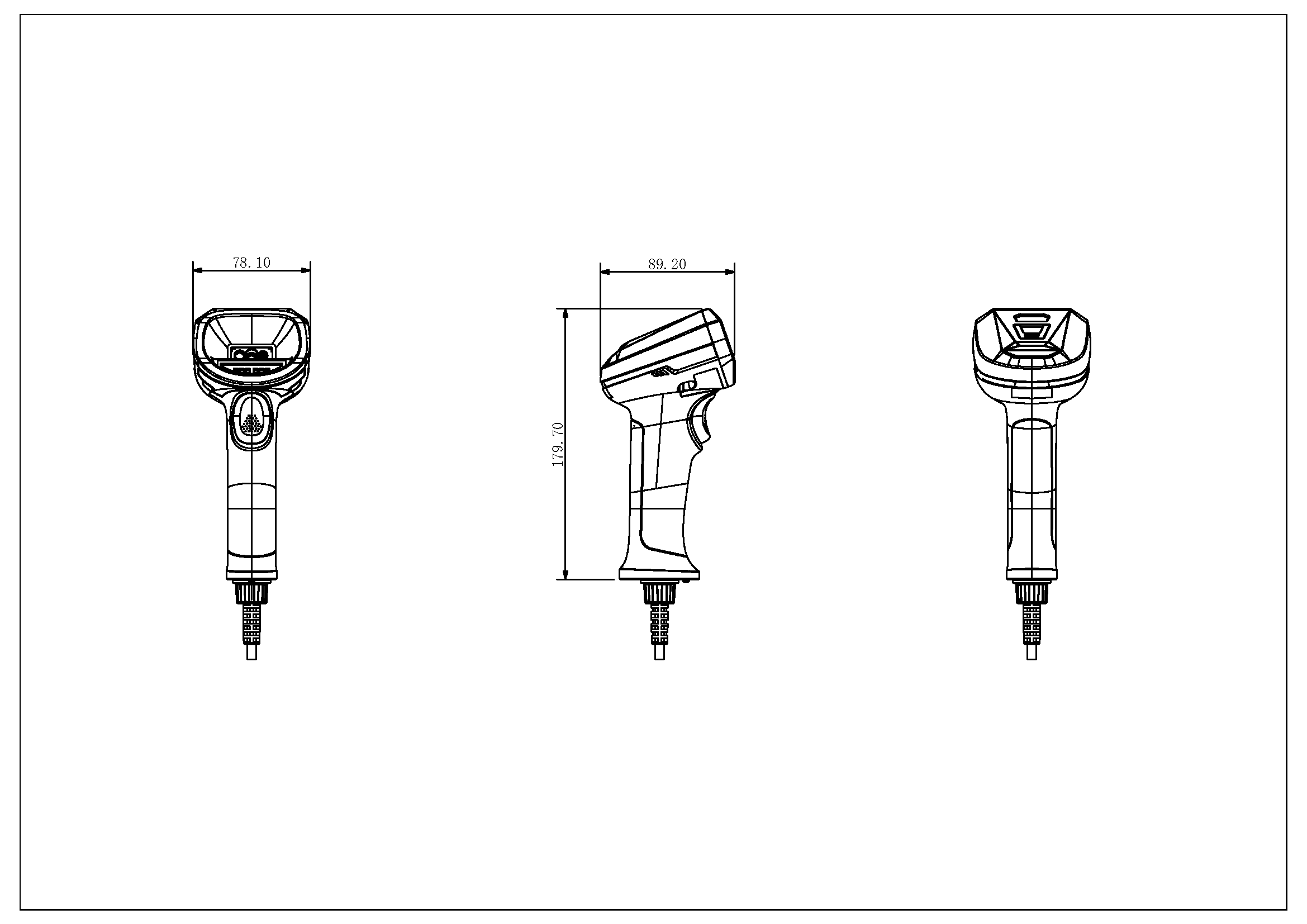

Mechanical drawing
Compact housing dimensions
89 mm × 78 mm × 180 mm
