RS3013MB-05-MGGF1E
Handheld Code 3000

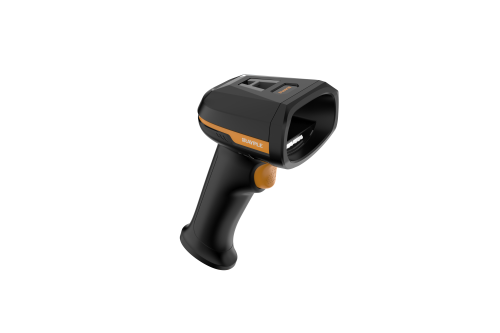

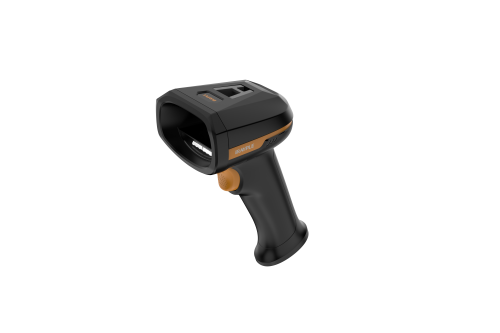

The iRayple RS3013MB-05-MGGF1E is a 1.3 MP smart code. It uses a global shutter and reads out 1280 × 1024 at 50 fps. It runs on DC 12～24V and operates from -20℃～+50℃. The body measures 137 mm × 106 mm × 81 mm and weighs Approx. 310g.
- Series Type
- RS 3000
- Resolution
- 1280 × 1024
- Frame Rate
- 50 fps
- Shutter
- Global
In stockModel: RS3013MB-05-MGGF1E
Performance highlights
Engineered for precise industrial imaging
- Highly efficient AI algorithm ensures excellent code reading performance in complex scenarios
- Integrated three-color(Red/White/Blue) illumination, actively switches to the optimal light source
- High frame rate CMOS image sensor with 1280*1024 resolution enables high accuracy and fast scanning
- Ergonomic and Reliable mechanical design makes operation comfortable and durable in industrial environment
- Intelligent tuning tool provides optimal settings for Direct Part Mark(DPM) code reading
- Adopting Bluetooth 5.0 Wireless technology, freeing from the constraints of cables, enabling more efficient and convenient operation

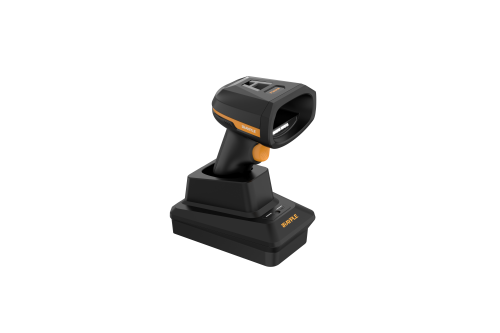

- With the smart communication and charging dock, it can connect to EasyID for parameter configuration and device management
Technical data
Product parameters
Bluetooth Handheld Code Readers provide a convenient and flexible solution for mobile barcode and 2D code scanning. Using wireless Bluetooth communication, operators can scan codes freely without being restricted by cables, making them ideal for applications that require mobility and efficient data collection.
Basic
- Series Type
- RS 3000
- Resolution
- 1280 × 1024
- Frame Rate
- 50 fps
- Shutter
- Global
- Function
- 1D：Code 39, Code 93, Code 128, ITF 14/25, CodaBar, EAN8, EAF13, UPCA, UPCE、Pharmacode; 2D：QR Code, Data Matrix、Micro QR、QR Model1、PDF417
- Light Source
- Red/white/blue three-color integrated light
- Trigger Mode
- Key push scan, Auto sensing scan
- Software
- EasyID
Decoding
- DPM Support
- 4mil
- Reading Distance
- 1D： Code39（5 mil）：40~ 160 mm Code128（10 mil）：10~ 400 mm 2D： QR Code（7 mil）：65~ 120 mm Data Matrix（10 mil）：30~ 200 mm QR Code（15 mil）：15~ 280 mm QR Code（20 mil）：20~ 400 mm
- Reading Field
- Horizontal 43°, vertical 36°
Communication
- Communication
- Bluetooth - BT 5.0, BLE
- Connector Port
- Fast Ethernet (100 Mbit/s), USB2.0, RS-232, DC terminal
- Communicate Protocol
- SmartSDK, TCP Client, Serial, FTP, HTTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, Fins, USB(HID), RS-232, Bluetooth
Power Supply
- Input Voltage
- DC 12～24V
- Power
- Battery Capacity: 3250mAh - Operating Time: 13 h (interval scanning, once in 2 seconds) - Charging Time: 3.5 h
Environment
- Operating Temperature
- -20℃～+50℃
- Storage Temperature
- -20℃~+60℃
- Protection Class
- IP40
Mechanical
- Dimensions
- 137 mm × 106 mm × 81 mm
- Weight
- Approx. 310g

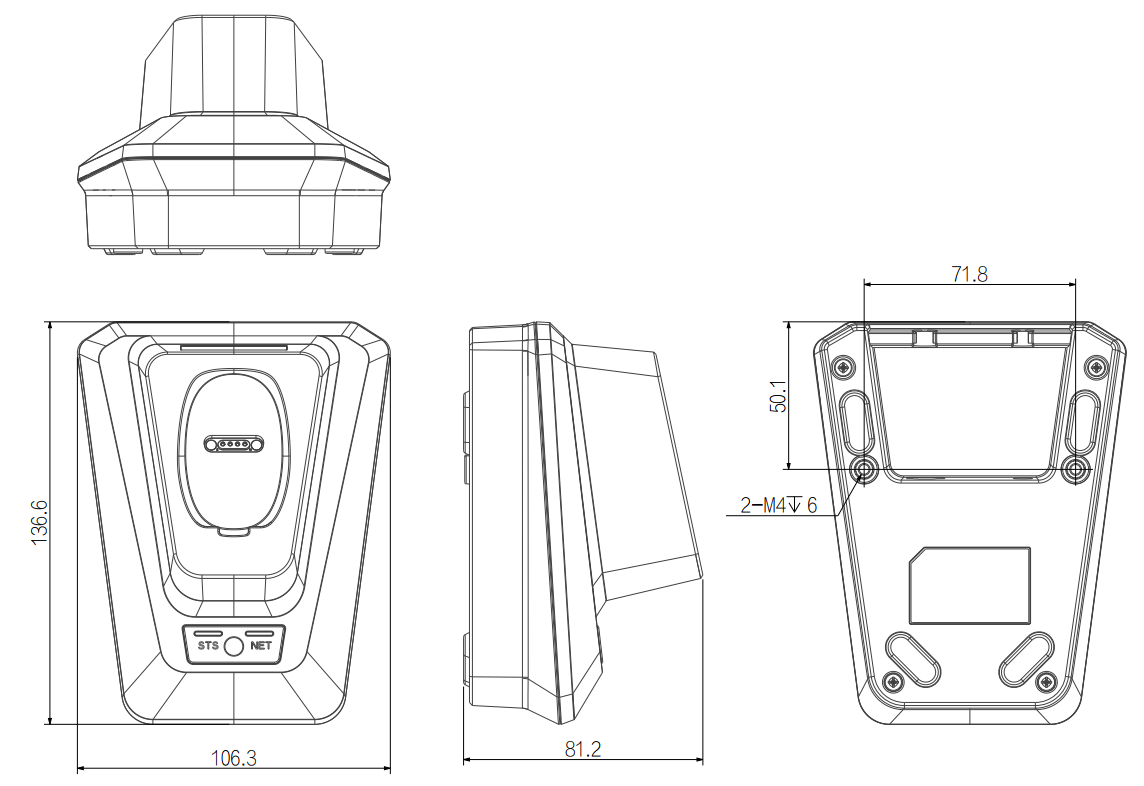

Mechanical drawing
Compact housing dimensions
137 mm × 106 mm × 81 mm
