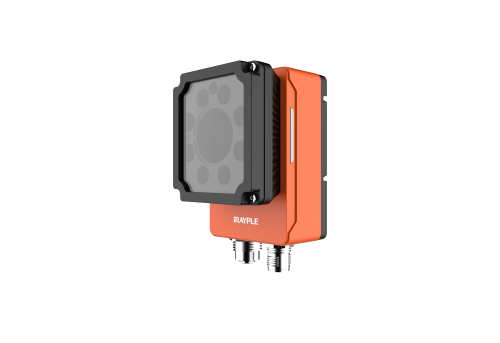

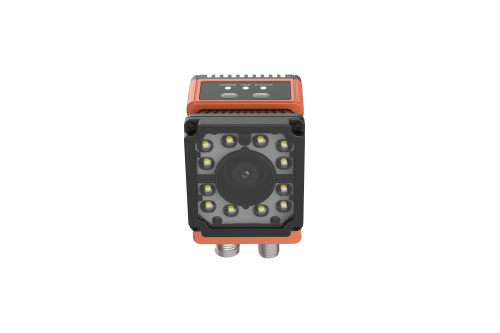

R5050MG-16M-RGG02E
Code Reader 5000
The iRayple R5050MG-16M-RGG02E is a 4.2 MP monochrome smart code. It uses a global shutter and reads out 2368 × 1792 at 45 fps. It draws <18 W(light included) and operates from -20℃～+50℃. The body measures 82mm×55mm×50.7mm (not including connector) and weighs <350 g.
- Series Type
- R5000
- Resolution
- 2368 × 1792
- Frame Rate
- 45 fps
- Shutter
- Global
Engineered for precise industrial imaging
- Light-integrated design makes red/white/blue illumination optional, support control separately
- Support different focal lengths, electrical auto focus and one-click auto training
- GigE interface, IP65 protection level
- Abundant IO interfaces such as Ethernet, RS232, GPIO, support multiple communication protocols
- Support various code formats and evaluations of code quality
- Built-in deep-learning algorithms and multi-parameters polling to ensure effects of complex applications
Product parameters
AI-enabled R5000 series code readers achieve high decoding rates and support various 1D and 2D codes in complex scenarios. Their 1.6MP and 5MP resolution image sensors, working in conjunction with high-performance chipsets, excel in applications requiring high speed, rapid pace, and decoding of small codes. Various user-friendly functions enhance flexible and easy deployment, including one-click training, multi-configuration polling, multi-camera networking, and more.
Basic
- Series Type
- R5000
- Resolution
- 2368 × 1792
- Frame Rate
- 45 fps
- Shutter
- Global
- Type
- Mono
- Function
- lD: Code 39/Code 93/Code128/CodaBar/EAN8/EAN13/UPCA/UPCE/ITF25/2of5（Industrial2of5）/standard25/GS1-128 etc. and 2D: Data Matrix/MQR/GS1 DM/GS1QR etc.; Quality Evaluation: ISO/IEC 29158(AIM-DPM), ISO/IEC 15415, ISO/IEC 15416）
- Focal Length
- M12 - 16mm
- Focus Control
- Auto Focus
- Light Source
- Red
- Trigger Mode
- Software trigger/External trigger/Free run modes
- Software
- EasyID
Decoding
- DPM Support
- 1D code 0.04 mm/ 2D code 0.04 mm
- Reading Distance
- 100mm-1500mm
- Reading Field
- 99 mm×75 mm@WD200mm
- Read Speed
- 90 codes/s
Communication
- Communication
- RS232, Ethernet
- Connector Port
- 2 Industrial connectors support GigE and GPIO
- Network Port
- GigE
- GPIO Interface
- RS232, 2 Opto-isolated inputs and 3 Opto-isolated outputs
- Communicate Protocol
- SmartSDK, TCP Client, Serial, FTP, HTTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, Fins, USB(HID), RS-232, Bluetooth
Power Supply
- Input Voltage
- 9~26V DC, 2A input, suitable for industrial environment
- Power
- <18 W(light included)
Environment
- Operating Temperature
- -20℃～+50℃
- Storage Temperature
- -30℃～+70℃
- Relative Humidity
- 20%～95%(no condensation)
- Protection Class
- IP65
Mechanical
- Dimensions
- 82mm×55mm×50.7mm (not including connector)
- Weight
- <350 g

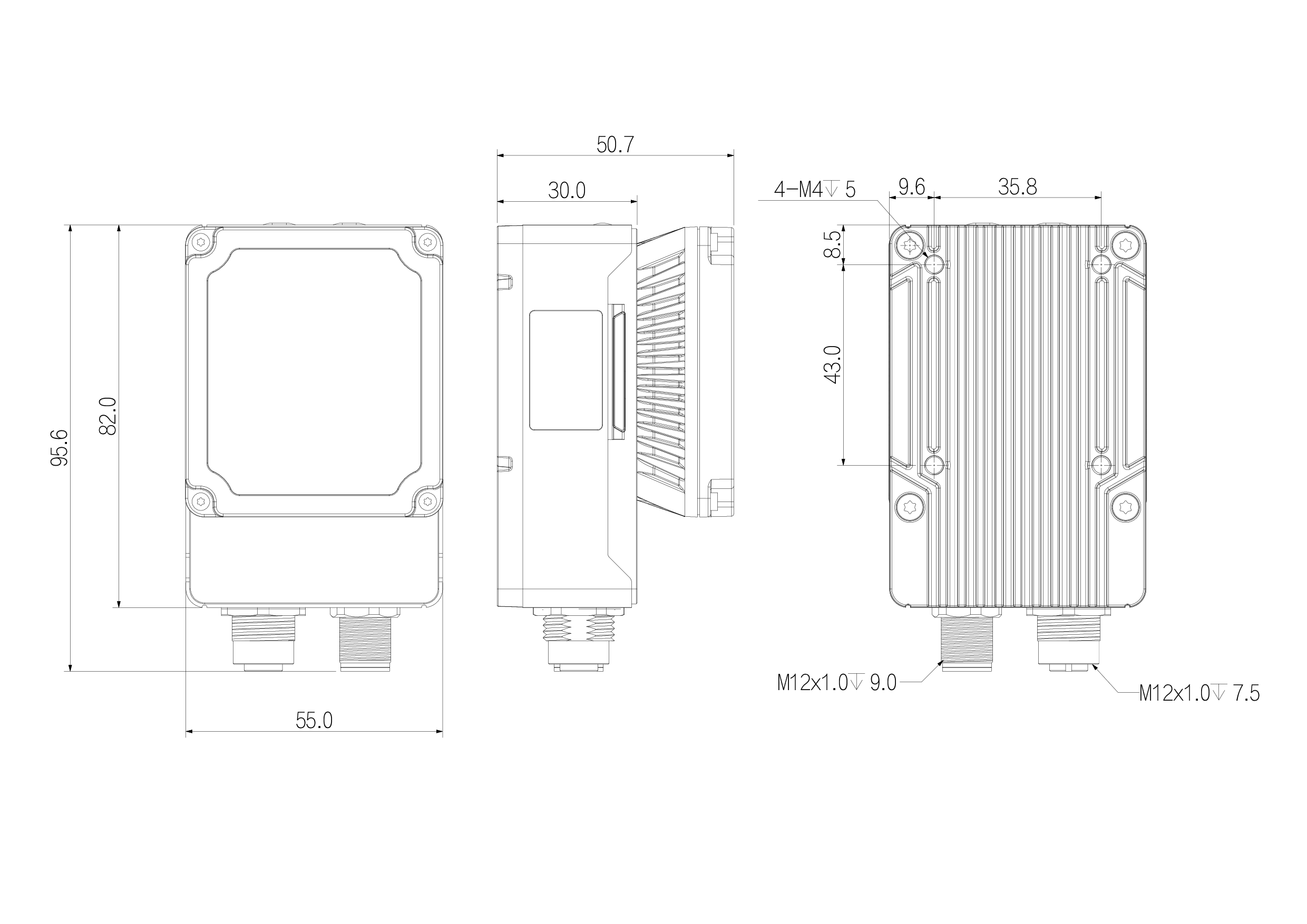

Compact housing dimensions
82mm×55mm×50.7mm
