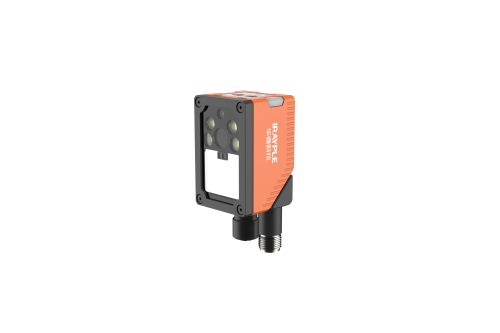

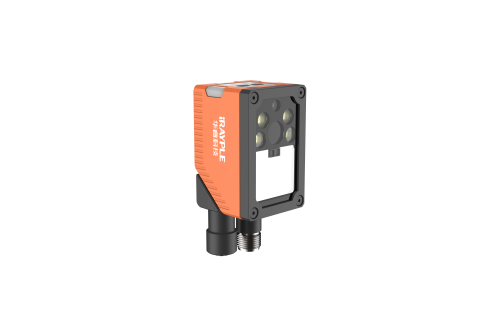

R5016PMG-12L-RGG01E
Code Reader 5000
The iRayple R5016PMG-12L-RGG01E is a 1.6 MP monochrome smart code. It uses a global shutter and reads out 1440 × 1080 at 60 fps. It draws <6 W(light included) and operates from 0℃～+45℃. The body measures 57mm × 37mm × 39mm(not including connector) and weighs ＜160 g.
- Series Type
- R5000
- Resolution
- 1440 × 1080
- Frame Rate
- 60 fps
- Shutter
- Global
Engineered for precise industrial imaging
- Light-integrated design makes red/white illumination optional, support control separately
- Support liquid lens focus and one-click auto training
- Liquid device integrates TOF technology to achieve fast real-time focusing
- GigE interface, IP67 protection level
- Abundant IO interfaces such as Ethernet, RS232, GPIO, support multiple communication protocols
- Support various code formats and evaluations of code quality
- ● Built-in deep-learning algorithms and multi-parameters polling to ensure effects of complex applications
Product parameters
AI-enabled R5000 series code readers achieve high decoding rates and support various 1D and 2D codes in complex scenarios. Their 1.6MP and 5MP resolution image sensors, working in conjunction with high-performance chipsets, excel in applications requiring high speed, rapid pace, and decoding of small codes. Various user-friendly functions enhance flexible and easy deployment, including one-click training, multi-configuration polling, multi-camera networking, and more.
Basic
- Series Type
- R5000
- Resolution
- 1440 × 1080
- Frame Rate
- 60 fps
- Shutter
- Global
- Type
- Mono
- Function
- 1D: Code 39/Code 93/Code128/CodaBar/EAN8/EAN13/UPCA/UPCE/ITF25/2of5（Industrial2of5）/standard25/GS1-128 etc. and 2D: Data Matrix/MQR/GS1 DM/GS1QR/PDF417 etc.; Quality Evaluation: ISO/IEC 29158(AIM-DPM), ISO/IEC 15415, ISO/IEC 15416）
- Focal Length
- M10 - 12mm
- Focus Control
- liquid lens focus
- Light Source
- Red, Polarized/Non-polarized; White,diffuse light
- Trigger Mode
- Software trigger/External trigger/Free run modes
- Software
- EasyID
Decoding
- DPM Support
- 1D code 0.028mm/2D code 0.059mm
- Reading Distance
- 90-2000mm
- Reading Field
- 24mm×18mm-488mm×366mm
- Read Speed
- 120 codes/s
Communication
- Communication
- RS232, Ethernet
- Connector Port
- 2 Industrial M12 connectors support GigE and GPIO
- Network Port
- 100M Ethernet
- GPIO Interface
- RS232, 2 Opto-isolated inputs and 3 Opto-isolated outputs
- Communicate Protocol
- SDK,TCP Client,TCP Server,FTP,RS232,Profinet,Modbus,EtherNet/IP,MC(SLMP),FINS/UDP,FINS/TCP
Power Supply
- Input Voltage
- 16~26V DC, 1A input, suitable for industrial environment
- Power
- <6 W(light included)
Environment
- Operating Temperature
- 0℃～+45℃
- Storage Temperature
- -30℃～+70℃
- Relative Humidity
- 20%～95%(no condensation)
Mechanical
- Dimensions
- 57mm × 37mm × 39mm(not including connector)
- Weight
- ＜160 g
- Protection
- IP67

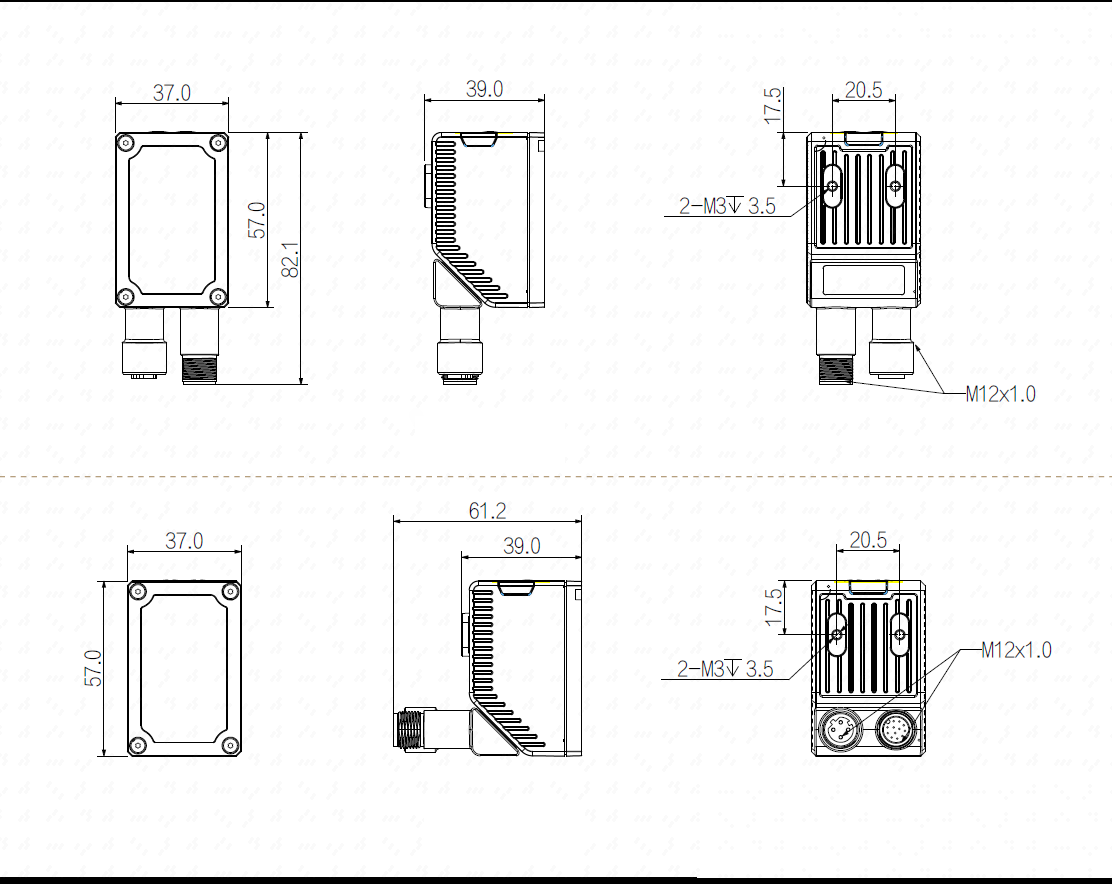

Compact housing dimensions
57mm × 37mm × 39mm
