R3016PMG-07H-WGN01E
Coder Reader 3000
The iRayple R3016PMG-07H-WGN01E is a 1.6 MP monochrome smart code. It uses a global shutter and reads out 1440 × 1080 at 60 fps. It draws <10.5W and operates from -20℃～+50℃. The body measures 45.0mm × 35.0mm × 25.5mm(Without cable) and weighs ＜110 g.
- Series Type
- R3000
- Resolution
- 1440 × 1080
- Frame Rate
- 60 fps
- Shutter
- Global
In stockModel: R3016PMG-07H-WGN01E
Performance highlights
Engineered for precise industrial imaging
- Built-in Whitelight, integrated design
- Support multiple trigger modes such as software trigger/external trigger/free run
- 100M Ethernet interface, IP65 protection level
- Abundant IO interfaces such as Ethernet, RS232, GPIO, support multiple communication protocols
- Support various code formats and evaluations of code quality
- Built-in AI code reading algorithms and multi-parameters polling to ensure effects of complex applications.
Technical data
Product parameters
The 3000 series stands as an introductory-level code reader, distinguished by its ingeniously compact design that harmonizes perfectly with confined spaces. It boasts a seamless integration of optics and illumination, culminating in a user-friendly deployment experience.
Basic
- Series Type
- R3000
- Resolution
- 1440 × 1080
- Frame Rate
- 60 fps
- Shutter
- Global
- Type
- Mono
- Function
- 1D: Code 39/Code 93/Code128/CodaBar/EAN8/EAN13/UPCA/UPCE/ITF25/2of5（Industrial2of5）etc. and 2D:QR/Data Matrix/MQR/GS1 DM/GS1QR/PDF417/QRModel1/DMECC000-140 etc.; Quality Evaluation: ISO/IEC 29158(AIM-DPM), ISO/IEC 15415, ISO/IEC 15416）
- Focal Length
- 6.72 mm
- Focus Control
- Manual Focus
- Light Source
- White
- Trigger Mode
- Support multiple trigger modes such as software trigger/external trigger/free run;
- Software
- EasyID
Decoding
- DPM Support
- 1D code 0.05mm/ 2D code 0.08mm
- Reading Distance
- 40 - 150 mm
- Reading Field
- 30 × 22 mm - 111 × 83 mm
- Read Speed
- 50 codes/s
Communication
- Communication
- RS232, Ethernet
- Connector Port
- Industrial-grade M12 connectors are Ethernet and GPIO interfaces
- Network Port
- 100M Ethernet
- GPIO Interface
- 1x RS232 interface, 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
- Communicate Protocol
- SDK，TCP Client，TCP Server，FTP，RS232，Profinet、Modbus、EtherNet/IP、MC（SLMP）、FINS/UDP、FINS/TCP
Power Supply
- Input Voltage
- Support 9~26VDC, 1A input, suitable for industrial environment
- Power
- <10.5W
Environment
- Operating Temperature
- -20℃～+50℃
- Storage Temperature
- -30℃～+70℃
- Relative Humidity
- 20%～95%, Non condensing
- Protection Class
- IP65
Mechanical
- Dimensions
- 45.0mm × 35.0mm × 25.5mm(Without cable)
- Weight
- ＜110 g

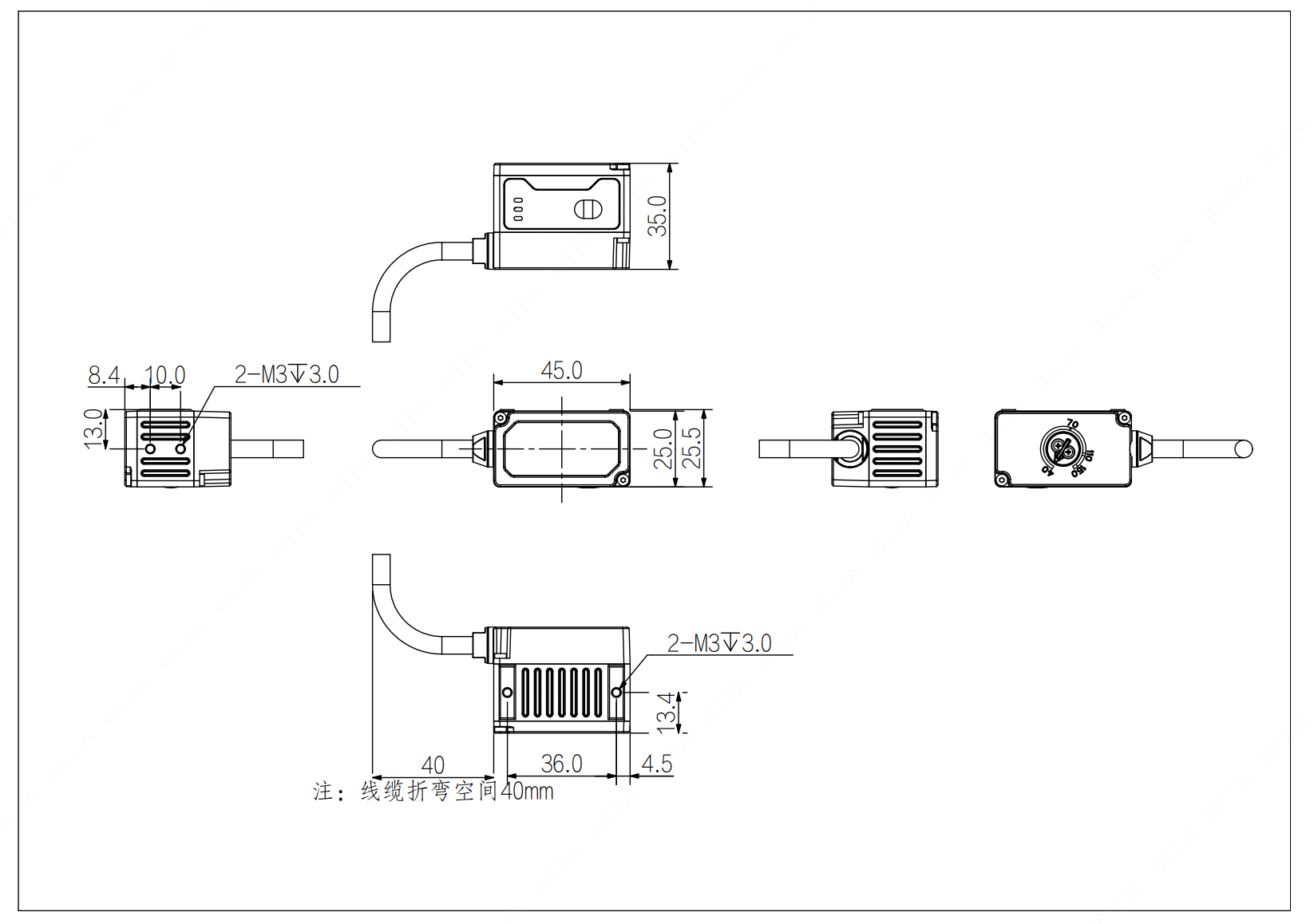

Mechanical drawing
Compact housing dimensions
45.0mm × 35.0mm × 25.5mm
