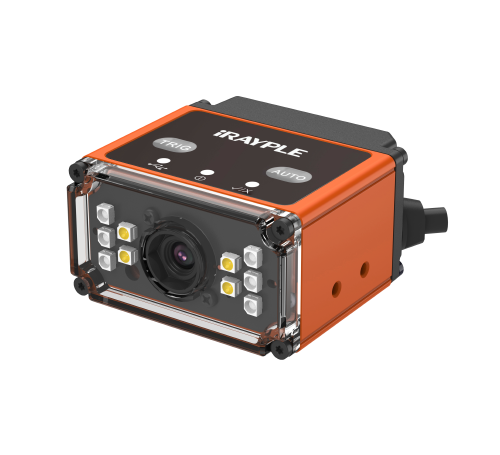

R3013MU-05H-DEE01E
Code Reader 3000
The iRayple R3013MU-05H-DEE01E is a 1.3 MP monochrome smart code. It uses a global shutter and reads out 1280 × 1024 at 60 fps. It draws <2.5 W from 9 – 26VDC,0.5A input; 5V(USB) and operates from -15℃～+50℃. The body measures 50mm × 50mm × 28.5mm (Without cable) and weighs <130 g.
- Series Type
- R3000
- Resolution
- 1280 × 1024
- Frame Rate
- 60 fps
- Shutter
- Global
In stockModel: R3013MU-05H-DEE01E
Performance highlights
Engineered for precise industrial imaging
- Built-in Red/white dual light, integrated design
- Support multiple trigger modes such as software trigger/external trigger/free run
- Rich IO interface such as USB2.0, RS232, GPIO
- 9–26V DC power supply, consumption no more than 2.5W
- 5VDC(USB)
- Abundant decoding algorithms, 1D: CODE128/EAN/CODE39/CODE93/CODEBAR/ITF25 etc., 2D: DM/QR/DPM/PDF417 etc.
Technical data
Product parameters
Basic
- Series Type
- R3000
- Resolution
- 1280 × 1024
- Frame Rate
- 60 fps
- Shutter
- Global
- Type
- Mono
- Function
- lD: Code 39/Code 93/Code128/CodaBar/EAN8/EAN13/UPCA/UPCE/ITF25/2of5（Industrial2of5）/standard25/GS1-128 etc. and 2D: Data Matrix/MQR/GS1 DM/GS1QR/PDF417 etc.; Quality Evaluation: ISO/IEC 29158(AIM-DPM), ISO/IEC 15415, ISO/IEC 15416）
- Focal Length
- 4.8mm
- Focus Control
- Manual Focus
- Light Source
- Red/white dual light
- Trigger Mode
- Support multiple trigger modes such as software trigger/external trigger/free run;
- Software
- EasyID
Decoding
- DPM Support
- 1D code 0.05mm / 2D code 0.08mm
- Reading Distance
- 40 - 150 mm
- Reading Field
- 30 × 24 mm - 110 × 88 mm
- Read Speed
- 31 code/s
Communication
- Communication
- RS232, USB
- Connector Port
- DB15, USB 2.0, GPIO interface
- GPIO Interface
- Power indicator, Network indicator, Result indicator
- Communicate Protocol
- SmartSDK, USB(HID), RS-232
Power Supply
- Input Voltage
- 9 – 26VDC,0.5A input; 5V(USB)
- Power
- <2.5 W
Environment
- Operating Temperature
- -15℃～+50℃
- Storage Temperature
- -30℃～+70℃
- Relative Humidity
- 20%～95%, Non-condensing
Mechanical
- Dimensions
- 50mm × 50mm × 28.5mm (Without cable)
- Weight
- <130 g

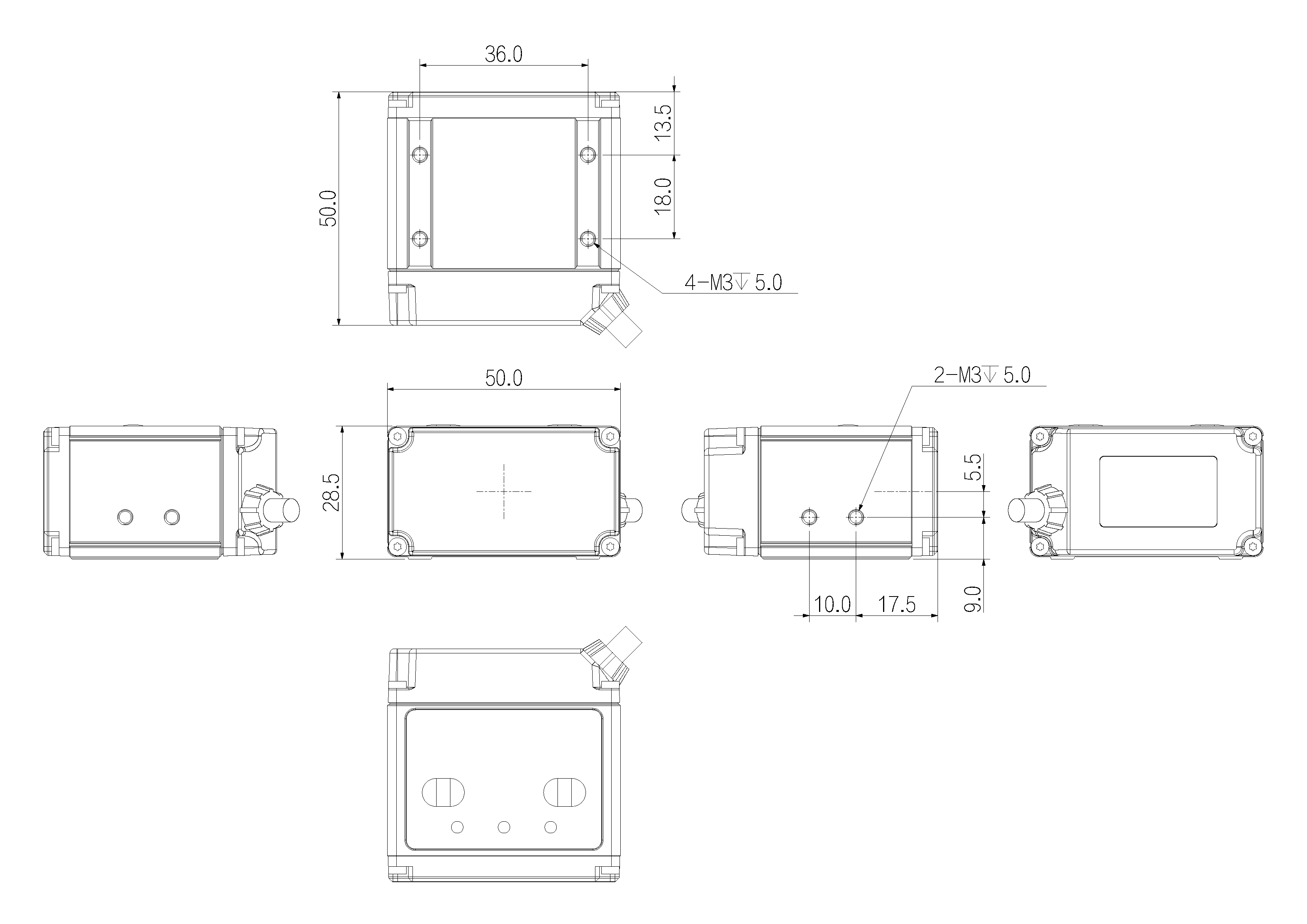

Mechanical drawing
Compact housing dimensions
50mm × 50mm × 28.5mm
