AX7Q27CT470E
Camera 152MP
The iRayple AX7Q27CT470E is a 152 MP colour 10GigE industrial camera. It is built on the Gpixel - GMAX32152 (53.0 mm × 29.4 mm CMOS) sensor with a global shutter and reads out 16544 × 9200 at 7.76 fps. It takes M72 x 0.75 optics and connects over 10GigE (10 GigE), outputting BayerGB8/10/10Packed/12/12Packed at up to 12 bits. It draws 20W from 24V and operates from 0℃~+50℃. The body measures 110 mm x 110 mm x 99.4 mm and weighs 990 g.
- Series Type
- Large Camera
- Sensor
- 53.0 mm × 29.4 mm CMOS
- Image Sensor
- Gpixel - GMAX32152
- Shutter
- Global
Engineered for precise industrial imaging
- 10GigE interface, provides up to 10Gbps effective bandwidth
- A patented flatness mediation scheme to eliminate area defocusing
- Excellent heat dissipation design, precise temperature control and constant temperature maintenance
- 1GB on-board cache for data transmission or image resend
- Support Software Trigger/Hardware Trigger/Free Run mode
- Support user-defined ROI, horizontal mirror and vertical mirror
- Support ISP functions including Auto Exposure/Auto Gain/Auto BlackLevel/Gamma Correction/LUT etc.
- Mono cameras support auto contrast adjustment
- Support for FFC function to provide more uniform picture quality
- Support fan speed adaptive function for setting the target temperature of the sensor
- Conform to GigE Vision protocol and GenICam standard
- Support DC 24V power supply
- Conform to CE, KC, RoHS
Product parameters
The large area scan camera is the high-end series of iRAYPLE area scan cameras that offer resolutions ranging from 5 MP to 604 MP and are designed to provide high resolution, high frame rate, and high image quality. An excellent ISP algorithm is utilized to ensure optimal image effects. Some models also have TEC cooling capabilities, which help maintain a stable temperature for the sensor. This makes them well-suited for industries such as EV, photovoltaic, semiconductor, liquid crystal, and more.
Basic
- Series Type
- Large Camera
- Sensor
- 53.0 mm × 29.4 mm CMOS
- Image Sensor
- Gpixel - GMAX32152
- Shutter
- Global
- Resolution
- 16544 × 9200
- Frame Rate
- 7.76 fps
- Bit Depth
- 12
- Type
- Color
- Pixel Size
- 3.2 μm × 3.2 μm
- Image Format
- BayerGB8/10/10Packed/12/12Packed
- Binning
- Support
- Dynamic Range
- 67.3 dB
- ROI
- Support
- X Flip
- Support
- Y Flip
- Support
- Gain
- 1～32
- Exposure Time
- 38 μs～15 s
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
- SPC
- Support
Performance
- User Setting
- Support two sets of user-defined configurations
- Image Buffer
- 1 GB
Communication
- Interface
- 10 GigE
- Mount
- M72 x 0.75
Power Supply
- Input Voltage
- 24V
- Power
- 20W
Environment
- Operating Temperature
- 0℃~+50℃
- Storage Temperature
- -30℃~+80℃
Mechanical
- Dimensions
- 110 mm x 110 mm x 99.4 mm (Non including rear case connector)
- Weight
- 990 g

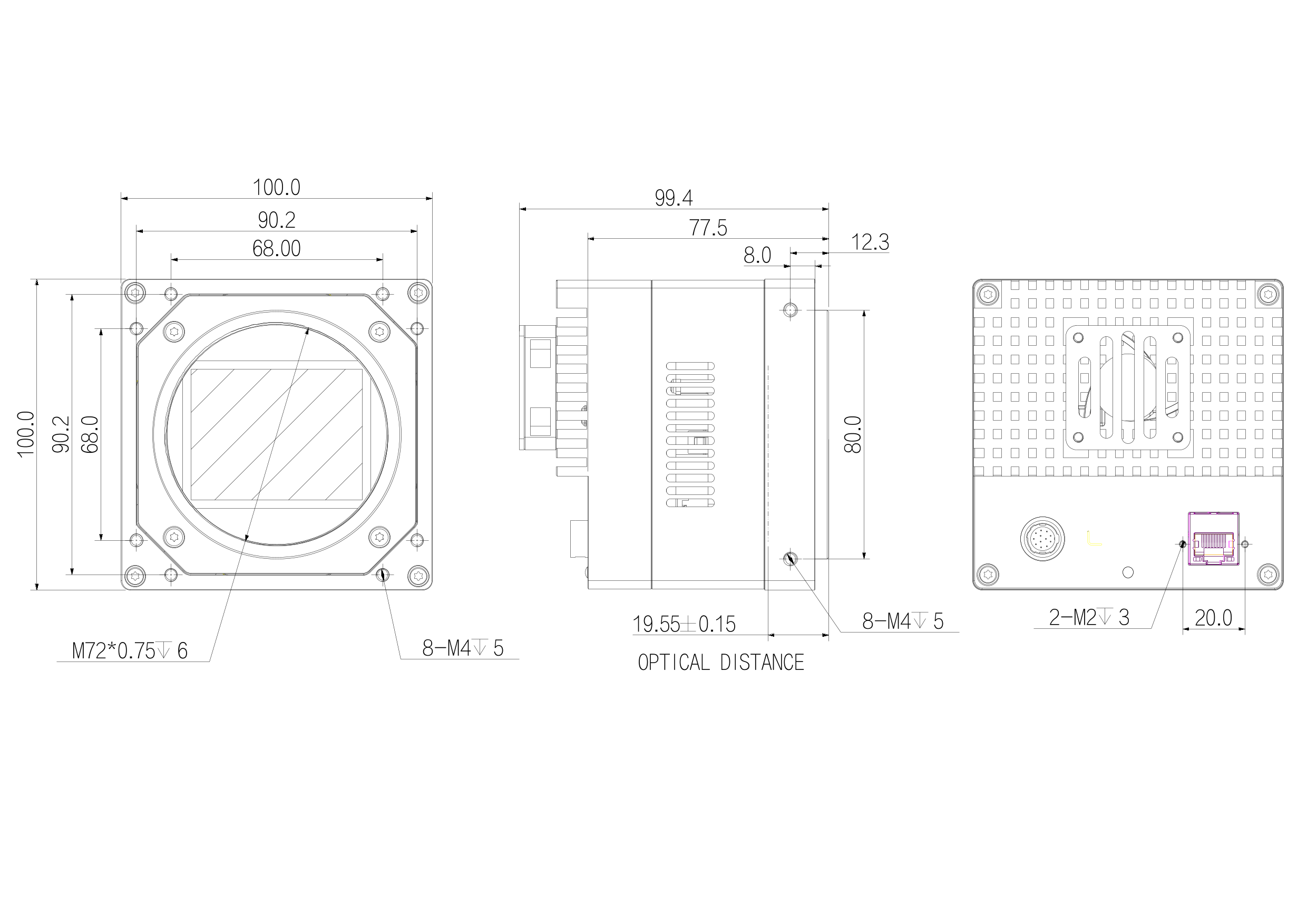

Compact housing dimensions
110 mm x 110 mm x 99.4 mm
