A9A87MX703E
Camera 18MP
The iRayple A9A87MX703E is an 18 MP monochrome CoaXPress industrial camera. It is built on the Gpixel - GMAX2518 (11.27 mm × 10.24 mm CMOS) sensor with a global shutter and reads out 4496 × 4096 at 64 fps. It takes C-mount optics and connects over CoaXPress (CXP-6), outputting Mono8/10/Mono12 at up to 12 bits. It draws 24V ≈ 8W and operates from -30℃~+40℃. The body measures 50 mm × 50 mm × 44.8 mm.
- Series Type
- Large Camera
- Sensor
- 11.27 mm × 10.24 mm CMOS
- Image Sensor
- Gpixel - GMAX2518
- Shutter
- Global
Engineered for precise industrial imaging
- CXP-6 interface, 2 x 6.25Gbps theoretical transfer bandwidth
- Support hardware trigger/free run mode
- Support FFC (block) function
- Support multiple image data formats output, ROI and etc.；
- Support PoCXP and DC 24V power supply
- Conforms to CoaXPress protocol and GenICam standard
- Conform to CE, KC and RoHS
Product parameters
The large area scan camera is the high-end series of iRAYPLE area scan cameras that offer resolutions ranging from 5 MP to 604 MP and are designed to provide high resolution, high frame rate, and high image quality. An excellent ISP algorithm is utilized to ensure optimal image effects. Some models also have TEC cooling capabilities, which help maintain a stable temperature for the sensor. This makes them well-suited for industries such as EV, photovoltaic, semiconductor, liquid crystal, and more.
Basic
- Series Type
- Large Camera
- Sensor
- 11.27 mm × 10.24 mm CMOS
- Image Sensor
- Gpixel - GMAX2518
- Shutter
- Global
- Resolution
- 4496 × 4096
- Frame Rate
- 64 fps
- Bit Depth
- 12
- Type
- Mono
- Pixel Size
- 2.5 μm × 2.5 μm
- Image Format
- Mono8/10/Mono12
- Dynamic Range
- 66.9 dB
- ROI
- Support
- X Flip
- Support
- Y Flip
- Support
- Gain
- Analog gain: 1x ~ 4x, Digital gain: 1x ~ 100x
- Exposure Time
- 8 μS ～ 5 S
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
- SPC
- Support
Performance
- User Setting
- Support two sets of user-defined configurations
Communication
- Interface
- CXP-6
- Mount
- C-mount
Power Supply
- Input Voltage
- DC 24V power supply via 6 Hirose interface，support PoCXP
- Power
- 24V ≈ 8W
Environment
- Operating Temperature
- -30℃~+40℃
- Storage Temperature
- -30℃~+80℃
Mechanical
- Dimensions
- 50 mm × 50 mm × 44.8 mm (Non including rear case connector)

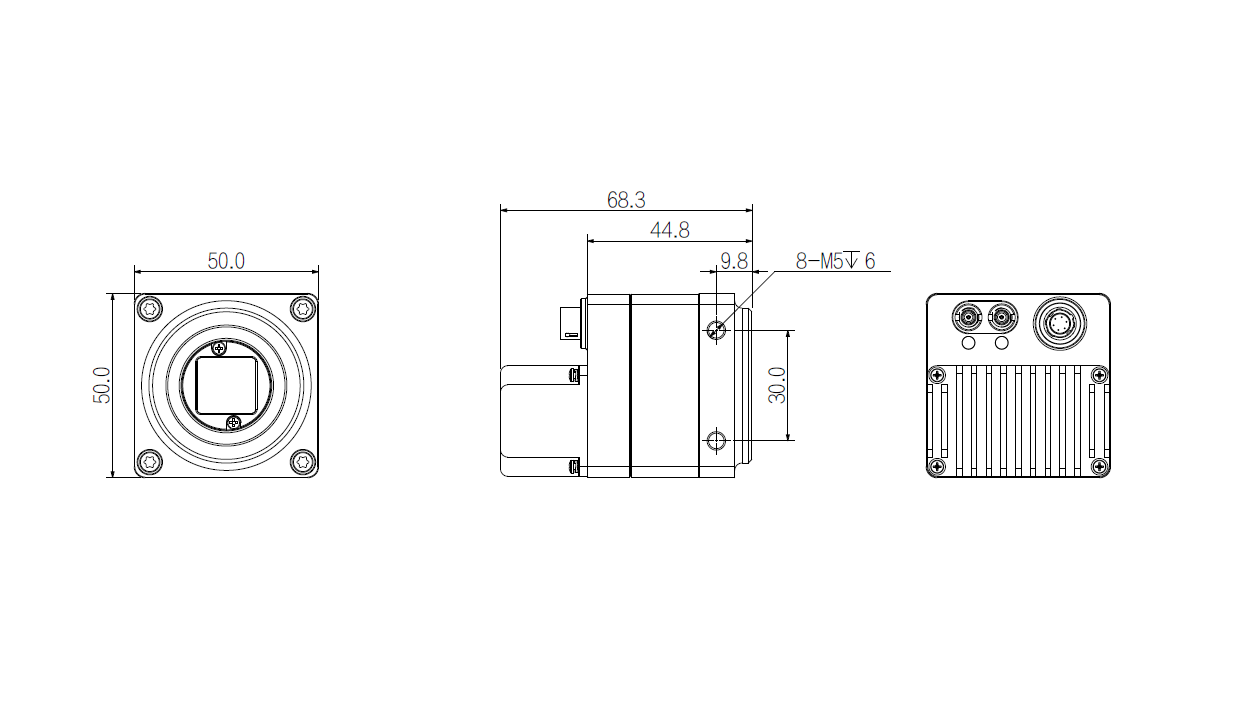

Compact housing dimensions
50 mm × 50 mm × 44.8
