AX7Q27CP470E
Camera 152MP
The iRayple AX7Q27CP470E is a 152 MP colour CoaXPress industrial camera. It is built on the Gpixel - GMAX32152 (53.0 mm × 29.4 mm CMOS) sensor with a global shutter and reads out 16544 × 9200 at 16 fps. It takes M72 x 0.75 optics and connects over CoaXPress (CXP-12), outputting BayerGB8/10/12 at up to 12 bits. It draws 20W and operates from -30℃~+50℃. The body measures 110 mm x 110 mm x 89.4 mm and weighs 900 g.
- Series Type
- Large Camera
- Sensor
- 53.0 mm × 29.4 mm CMOS
- Image Sensor
- Gpixel - GMAX32152
- Shutter
- Global
Engineered for precise industrial imaging
- CXP-12 interface, 4 x 12.5Gbps theoretical transfer bandwidth
- Support hardware trigger/free run mode
- Support pixel-by-pixel FFC function
- Support multiple image data formats output, ROI and etc.；
- Support PoCXP and DC 24V power supply
- Conforms to CoaXPress protocol and GenICam standard
- Conform to CE, KC and RoHS
Product parameters
The large area scan camera is the high-end series of iRAYPLE area scan cameras that offer resolutions ranging from 5 MP to 604 MP and are designed to provide high resolution, high frame rate, and high image quality. An excellent ISP algorithm is utilized to ensure optimal image effects. Some models also have TEC cooling capabilities, which help maintain a stable temperature for the sensor. This makes them well-suited for industries such as EV, photovoltaic, semiconductor, liquid crystal, and more.
Basic
- Series Type
- Large Camera
- Sensor
- 53.0 mm × 29.4 mm CMOS
- Image Sensor
- Gpixel - GMAX32152
- Shutter
- Global
- Resolution
- 16544 × 9200
- Frame Rate
- 16 fps
- Bit Depth
- 12
- Type
- Color
- Pixel Size
- 3.2 μm × 3.2 μm
- Image Format
- BayerGB8/10/12
- Binning
- Support
- Dynamic Range
- 67.3 dB
- ROI
- Support
- X Flip
- Support
- Y Flip
- Support
- Gain
- Analog gain: 1x ~ 5.2x, Digital gain: 1x ~ 100x
- Exposure Time
- 19 μs～15 s
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
- SPC
- Support
Performance
- User Setting
- Support two sets of user-defined configurations
Communication
- Interface
- CXP-12
- Mount
- M72 x 0.75
Power Supply
- Input Voltage
- DC 24V power supply via 6 Hirose interface，support PoCXP
- Power
- 20W
Environment
- Operating Temperature
- -30℃~+50℃
- Storage Temperature
- -30℃~+80℃
Mechanical
- Dimensions
- 110 mm x 110 mm x 89.4 mm (Non including rear case connector)
- Weight
- 900 g

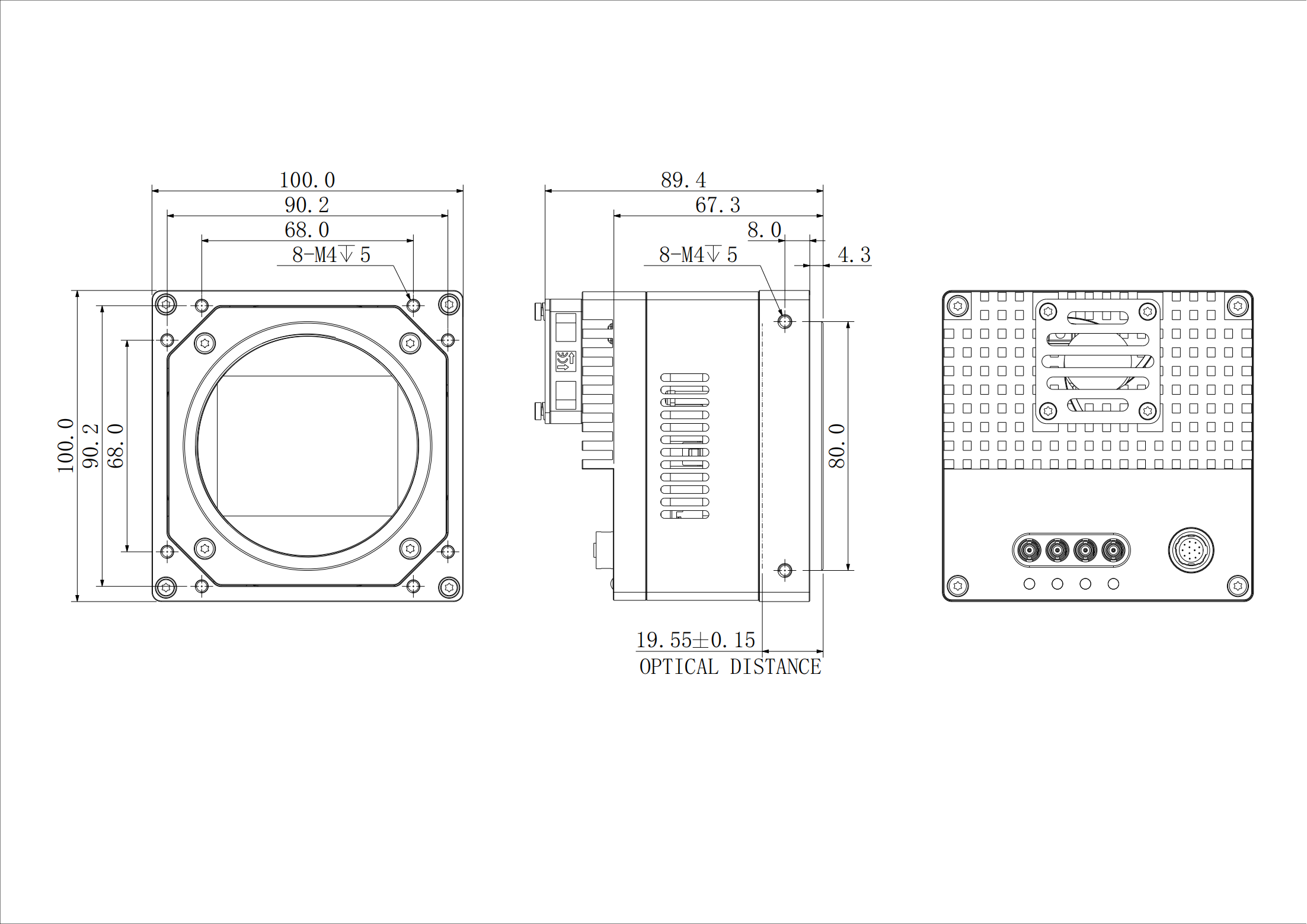

Compact housing dimensions
110 mm x 110 mm x 89.4 mm
