AX7Q10MX670E
Camera 600MP

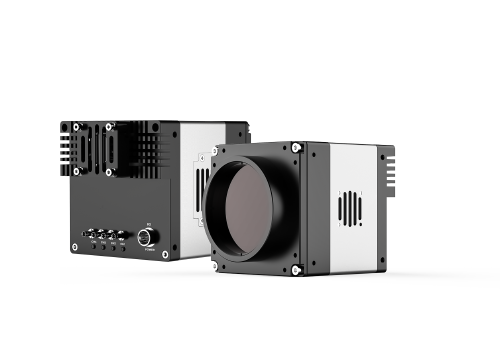

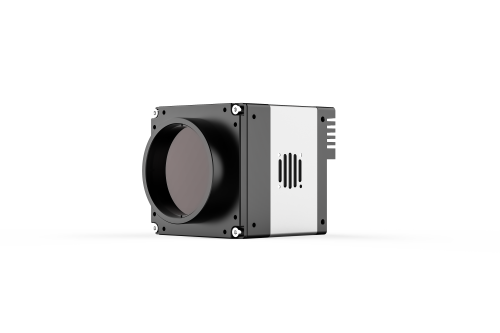

The iRayple AX7Q10MX670E is a 604 MP monochrome CoaXPress industrial camera. It is built on the Sony - IMX411 (53.4 mm x 40.0 mm CMOS) sensor with a rolling shutter and reads out 28384 × 21280 at 1.55 fps. It takes M72 x 0.75 optics and connects over CoaXPress (CXP-6), outputting Mono8/10/Mono12 at up to 12 bits. It draws 26 W and operates from 0℃~+50℃. The body measures 100 mm x 100 mm x 88.4 mm and weighs 1 kg.
- Series Type
- Large Camera
- Sensor
- 53.4 mm x 40.0 mm CMOS
- Image Sensor
- Sony - IMX411
- Shutter
- Rolling
Engineered for precise industrial imaging
- CXP-6 interface, 4 x 6.25Gbps theoretical transfer bandwidth
- Support hardware trigger/free run mode
- Support pixel-by-pixel FFC function
- Support multiple image data formats output, ROI and etc.
- Support DC 24V power supply
- Conforms to CoaXPress protocol and GenICam standard
- Conform to CE, KC and RoHS
Product parameters
The large area scan camera is the high-end series of iRAYPLE area scan cameras that offer resolutions ranging from 5 MP to 604 MP and are designed to provide high resolution, high frame rate, and high image quality. An excellent ISP algorithm is utilized to ensure optimal image effects. Some models also have TEC cooling capabilities, which help maintain a stable temperature for the sensor. This makes them well-suited for industries such as EV, photovoltaic, semiconductor, liquid crystal, and more.
Basic
- Series Type
- Large Camera
- Sensor
- 53.4 mm x 40.0 mm CMOS
- Image Sensor
- Sony - IMX411
- Shutter
- Rolling
- Resolution
- 28384 × 21280
- Frame Rate
- 1.55 fps
- Bit Depth
- 12
- Type
- Mono
- Pixel Size
- 3.76 μm × 3.76 μm
- Image Format
- Mono8/10/Mono12
- Dynamic Range
- 78 dB
- ROI
- Support
- X Flip
- Support
- Y Flip
- Support
- Gain
- Analog gain: 1x ~ 63x, Digital gain: 1x ~ 100x
- Exposure Time
- 30 μs ~ 5 s
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
- SPC
- Support
Performance
- User Setting
- Support two sets of user-defined configurations
Communication
- Interface
- CXP-6
- Mount
- M72 x 0.75
Power Supply
- Input Voltage
- DC 24V power supply via 6 Hirose interface，support PoCXP
- Power
- 26 W
Environment
- Operating Temperature
- 0℃~+50℃
- Storage Temperature
- -30℃~+80℃
Mechanical
- Dimensions
- 100 mm x 100 mm x 88.4 mm (Non including rear case connector)
- Weight
- 1 kg

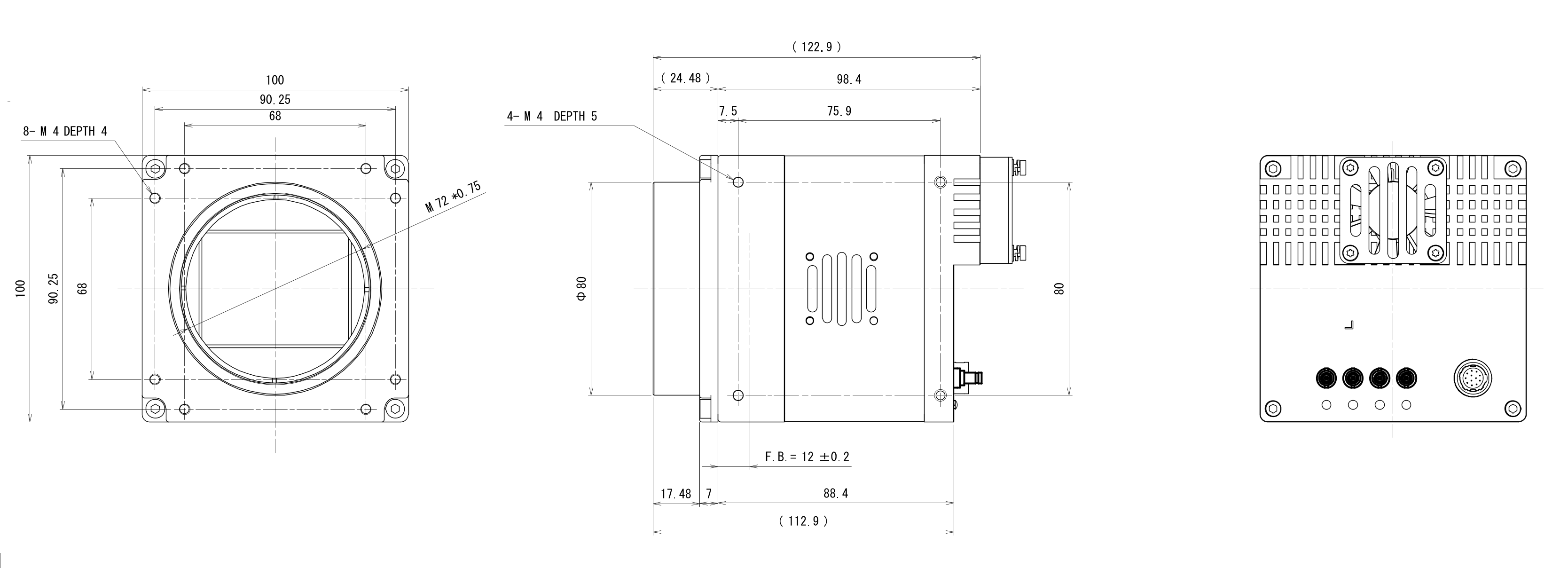

Compact housing dimensions
100 mm x 100 mm x 88.4 mm
