AX5B17MP050E
Camera 21MP
The iRayple AX5B17MP050E is a 21 MP monochrome CoaXPress industrial camera. It is built on the Gpixel - GSPRINT4521 (23.0 mm × 18.4 mm CMOS) sensor with a global shutter and reads out 5120 × 4096 at 219 fps. It takes M58 x 0.75 optics and connects over CoaXPress (CXP-12), outputting Mono8/10/Mono12 at up to 12 bits. It draws 24 V ≈ 34.56 W and operates from -30℃~+50℃. The body measures 80 mm x 80 mm x 75 mm and weighs 775 g.
- Series Type
- Large Camera
- Sensor
- 23.0 mm × 18.4 mm CMOS
- Image Sensor
- Gpixel - GSPRINT4521
- Shutter
- Global
Engineered for precise industrial imaging
- CXP-12 interface, 4 x 12.5Gbps theoretical transfer bandwidth
- Support hardware trigger/free run mode
- Support pixel-by-pixel FFC function
- Support multiple image data formats output, ROI and etc.；
- Support PoCXP and DC 24V power supply
- Conforms to CoaXPress protocol and GenICam standard
- Conform to CE, KC and RoHS
Product parameters
The large area scan camera is the high-end series of iRAYPLE area scan cameras that offer resolutions ranging from 5 MP to 604 MP and are designed to provide high resolution, high frame rate, and high image quality. An excellent ISP algorithm is utilized to ensure optimal image effects. Some models also have TEC cooling capabilities, which help maintain a stable temperature for the sensor. This makes them well-suited for industries such as EV, photovoltaic, semiconductor, liquid crystal, and more.
Basic
- Series Type
- Large Camera
- Sensor
- 23.0 mm × 18.4 mm CMOS
- Image Sensor
- Gpixel - GSPRINT4521
- Shutter
- Global
- Resolution
- 5120 × 4096
- Frame Rate
- 219 fps
- Bit Depth
- 12
- Type
- Mono
- Pixel Size
- 4.5 μm × 4.5 μm
- Image Format
- Mono8/10/Mono12
- Dynamic Range
- 69 dB
- ROI
- Support
- X Flip
- None Support
- Y Flip
- Support
- Gain
- Analog gain: 1x ~ 4x, Digital gain: 1x ~ 100x
- Exposure Time
- 4 μs ~ 5 s
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
- SPC
- Support
Performance
- User Setting
- Support two sets of user-defined configurations
Communication
- Interface
- CXP-12
- Mount
- M58 x 0.75
Power Supply
- Input Voltage
- DC 24V power supply via 6 Hirose interface，support PoCXP
- Power
- 24 V ≈ 34.56 W
Environment
- Operating Temperature
- -30℃~+50℃
- Storage Temperature
- -30℃~+80℃
Mechanical
- Dimensions
- 80 mm x 80 mm x 75 mm (not including rear case connector)
- Weight
- 775 g

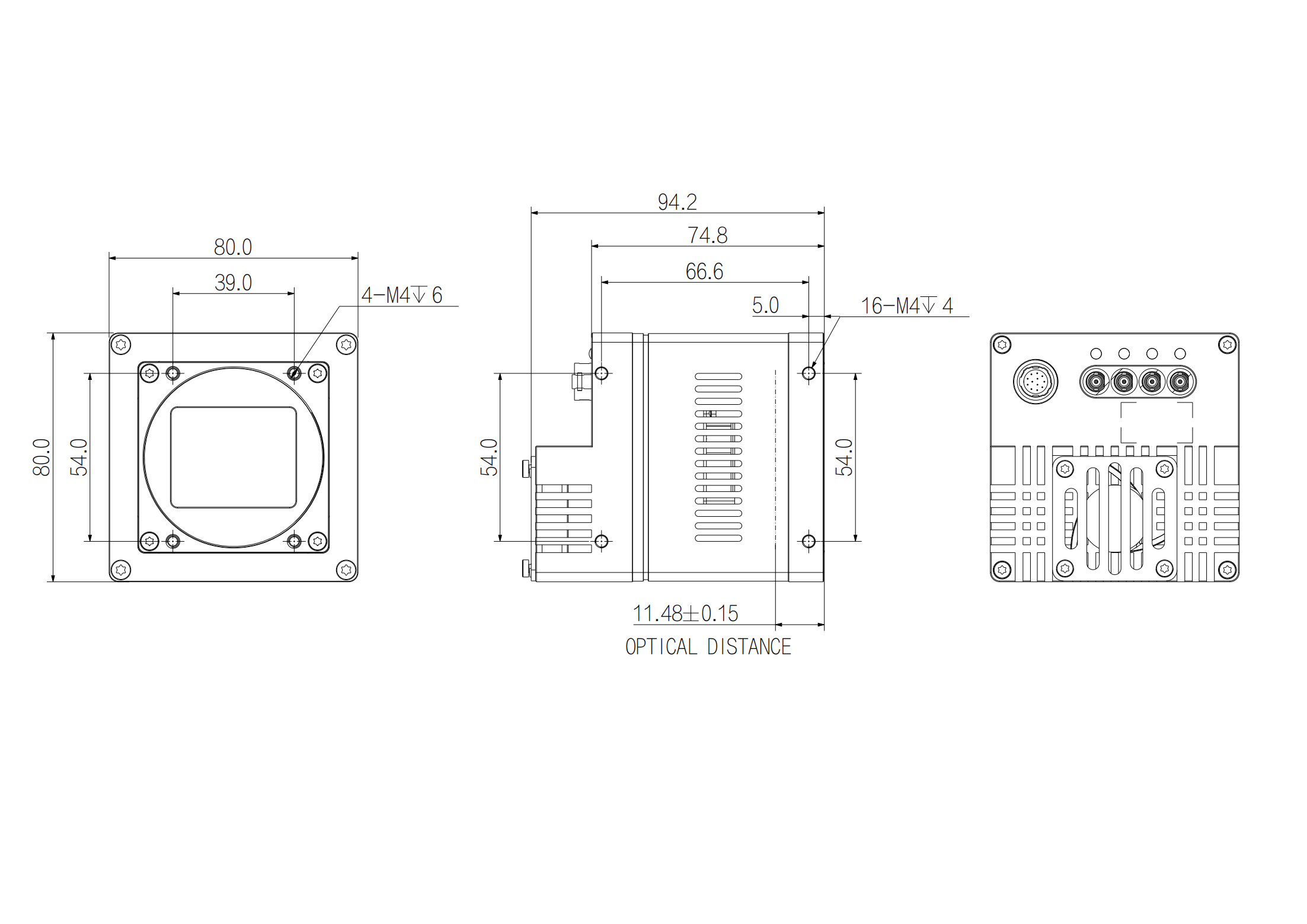

Compact housing dimensions
80 mm x 80 mm x 75 mm
