AE2000RMSE
Camera 20MP
The iRayple AE2000RMSE is a 20 MP monochrome industrial camera. It is built on the Sony - IMX183 (1" CMOS) sensor with a rolling shutter and reads out 5472 × 3648 at 22 fps. It takes C-mount optics and connects over FAKRA, outputting Mono8/10/Mono12 at up to 12 bits. It draws 12 VDC≈2.3W from PoC and operates from -30℃~+50℃. The body measures 29 mm×29 mm×30 mm and weighs 75g.
- Series Type
- AE Series
- Sensor
- 1" CMOS
- Image Sensor
- Sony - IMX183
- Shutter
- Rolling
Engineered for precise industrial imaging
- Ultra-high speed: Effective bandwidth up to 5.2 Gbps, several times that of a gigabit Ethernet port, easily achieving high frame rate acquisition.
- Ultra-stable: Utilizes automotive-grade serial transmission protocol, with strong anti-interference capabilities, ensuring smooth 24/7 operation.
- Long distance: Transmission distance up to 15 meters, flexible cabling, covering most production lines.
- Simple cabling: Only a single coaxial cable is needed to simultaneously achieve 12V PoC power supply, GPIO control, and high-speed image data transmission.
- Conform to CE, RoHS
Product parameters
The iRAYPLE AE series area scan camera offers a wide range of resolutions, as well as a comprehensive set of functional baselines and ISP algorithms. This combination effectively enhances image brightness and signal-to-noise ratio, resulting in improved image quality. With its high performance, reliability, and durability, it can be applied to various complex industrial scenarios and industries such as EV battery, 3C, semiconductor, and pharmaceutical.
Basic
- Series Type
- AE Series
- Sensor
- 1" CMOS
- Image Sensor
- Sony - IMX183
- Shutter
- Rolling
- Resolution
- 5472 × 3648
- Frame Rate
- 22 fps
- Bit Depth
- 12
- Type
- Mono
- Pixel Size
- 2.4 μm × 2.4 μm
- Image Format
- Mono8/10/Mono12
- Binning
- Support
- Dynamic Range
- 61.5 dB
- ROI
- Support
- X Flip
- Support
- Y Flip
- Support
- Gain
- 1～22.4X
- Exposure Time
- NE:28μs～2.5 sec
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode，Triggering is controlled by FrameGrab
- SPC
- Support
Performance
- User Setting
- Support two sets of user-defined configurations
Communication
- Interface
- FAKRA
- Mount
- C-mount
Power Supply
- Input Voltage
- PoC
- Power
- 12 VDC≈2.3W
Environment
- Operating Temperature
- -30℃~+50℃
- Storage Temperature
- -30~80℃
Mechanical
- Dimensions
- 29 mm×29 mm×30 mm (not including lens mount and rear case connector)
- Weight
- 75g

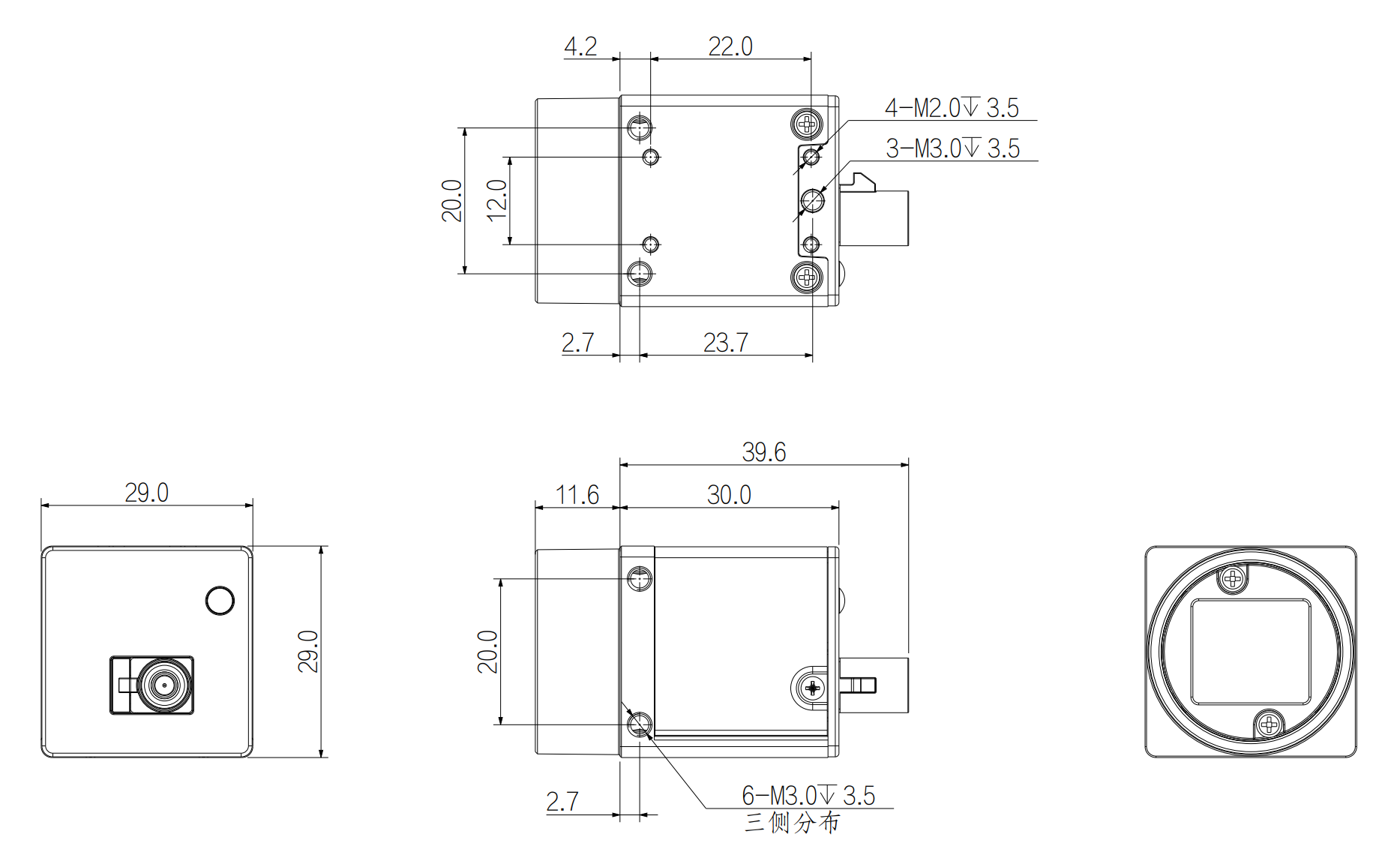

Compact housing dimensions
29 mm×29 mm×30 mm
