AE3B00CG010E
Camera 20MP
The iRayple AE3B00CG010E is a 20 MP colour GigE industrial camera. It is built on the Sony - IMX183 (1" CMOS) sensor with a rolling shutter and reads out 5472 × 3648 at 6 fps. It takes C-mount optics and connects over GigE (GigE, PoE). It draws 12 VDC≈3.3W from PoE/ DC 9V~24V power supply via Hirose interface and operates from 0℃~+50℃. The body measures 29 mm×29 mm×42 mm and weighs 88 g.
- Series Type
- AE Series
- Sensor
- 1" CMOS
- Image Sensor
- Sony - IMX183
- Shutter
- Rolling
Engineered for precise industrial imaging
- Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m
- 256MB on-board cache for data transmission or image resend
- Support Software Trigger/Hardware Trigger/Free Run Mode
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
- Support multiple image data formats output/ROI/Binning/Mirror, etc.
- Conform to GigE Vision V2.0 protocol and GenICam standard
- Conform to CE, RoHS
Product parameters
The iRAYPLE AE series area scan camera offers a wide range of resolutions, as well as a comprehensive set of functional baselines and ISP algorithms. This combination effectively enhances image brightness and signal-to-noise ratio, resulting in improved image quality. With its high performance, reliability, and durability, it can be applied to various complex industrial scenarios and industries such as EV battery, 3C, semiconductor, and pharmaceutical.
Basic
- Series Type
- AE Series
- Sensor
- 1" CMOS
- Image Sensor
- Sony - IMX183
- Shutter
- Rolling
- Resolution
- 5472 × 3648
- Frame Rate
- 6 fps
- Bit Depth
- 12
- Type
- Color
- Pixel Size
- 2.4 μm × 2.4 μm
- Image Format
- Mono8,BayerRG8/10/10Packed,YUV422_8_UYVY,YUV422_8
- Binning
- Support
- Dynamic Range
- 60 dB
- ROI
- Support
- X Flip
- Support
- Y Flip
- Support
- Gain
- 1～32
- Exposure Time
- 16 μs～1 s
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
- SPC
- Support
Performance
- User Setting
- Support two sets of user-defined configurations
- Image Buffer
- 256MB
Communication
- Interface
- GigE, PoE
- Mount
- C-mount
Power Supply
- Input Voltage
- PoE/ DC 9V~24V power supply via Hirose interface
- Power
- 12 VDC≈3.3W
Environment
- Operating Temperature
- 0℃~+50℃
- Storage Temperature
- -30~80℃
Mechanical
- Dimensions
- 29 mm×29 mm×42 mm (not including lens mount and rear case connector)
- Weight
- 88 g

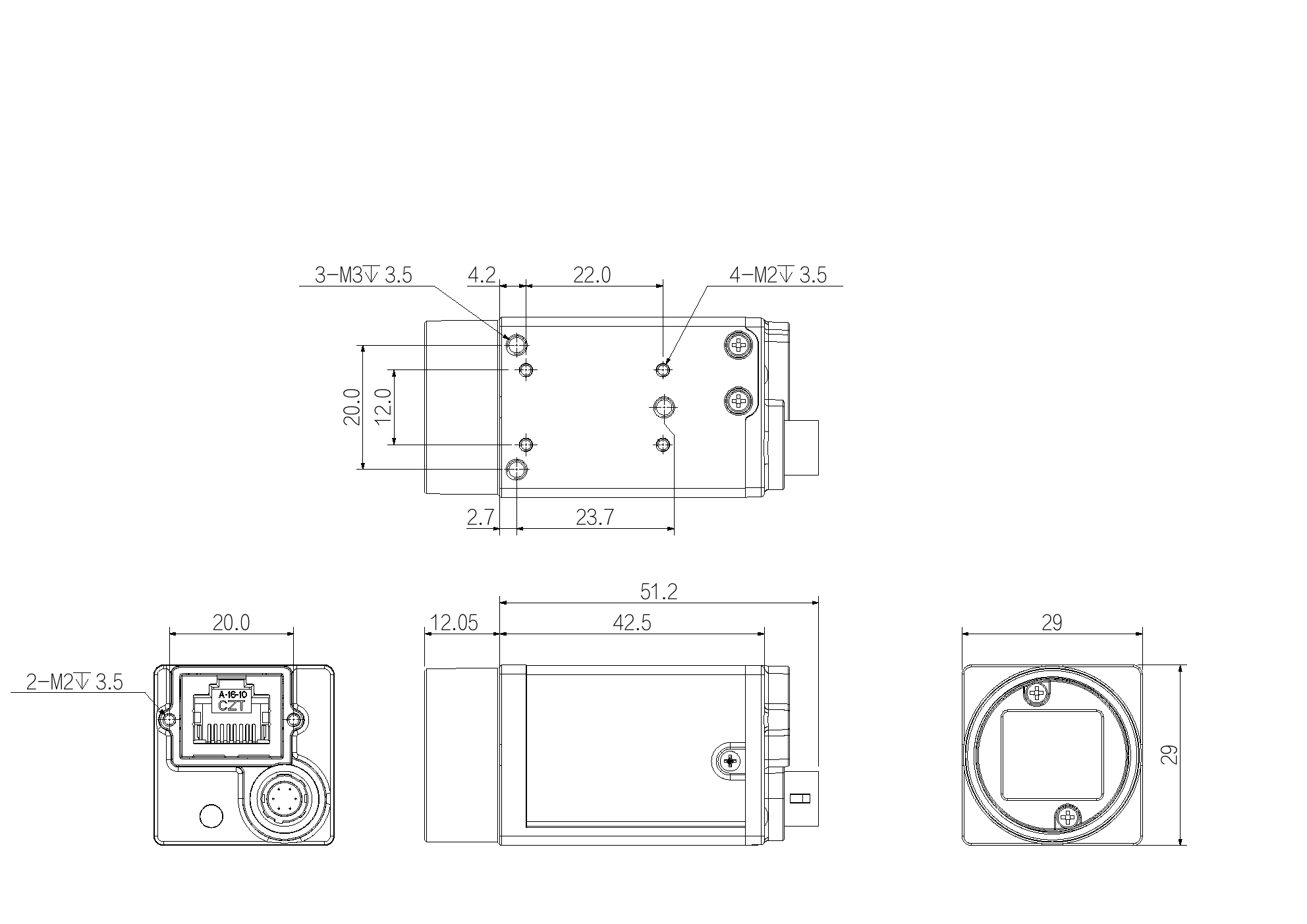

Compact housing dimensions
29 mm×29 mm×42 mm
