Inverter
Inovance · Inverter
MD200T2.2B-NC

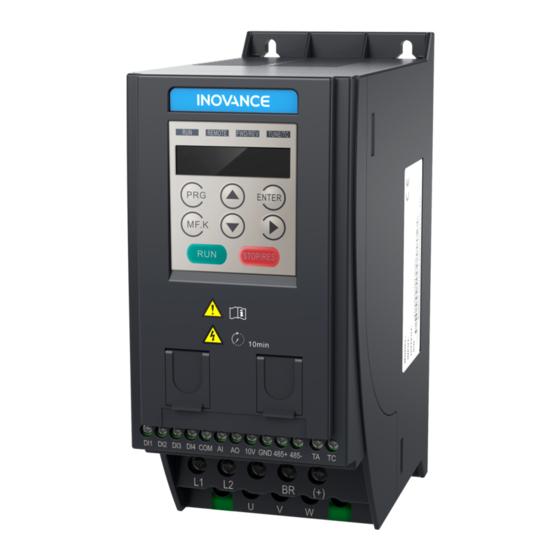

Inverter MD200
The Inovance MD200T2.2B-NC is an MD200 inverter. Rated specifications: Rated Current 5.5A, Frequency Max 500 Hz, Input Type Three-phase 380 to 480 Vac -15% to +10%, Output Type 380 to 480 Vac (proportional to input voltage). It draws 2.2kW. The body measures 180mm x 75mm x 145mm.
- Series Type
- MD200
- Model
- MD200T2.2B-NC
- Power
- 2.2kW
- Rated Current
- 5.5A
In stockModel: MD200T2.2B-NC
Performance highlights
Engineered for precise industrial imaging
- Open loop V/F & sensorless vector control
- Automatic torque boost
- Slip compensation
- Easy start-up with simplified parameters
- Flexible programmable I/Os
- Built-in dynamic braking unit
Technical data
Product parameters
Basic
- Series Type
- MD200
- Model
- MD200T2.2B-NC
- Power
- 2.2kW
- Rated Current
- 5.5A
- Frequency
- Max 500 Hz
- Input Type
- Three-phase 380 to 480 Vac -15% to +10%
- Output Type
- 380 to 480 Vac (proportional to input voltage)
- Brake Control
- Integrate
Control
- Control Mode
- Frequency - sensorless vector
- Overload Capacity
- 150% for 60 s & 180% for 3 s
Power Supply
- Supply Voltage
- Three-phase 400 Vac
Mechanical
- Dimensions
- 180mm x 75mm x 145mm
Mechanical drawing
Compact housing dimensions
180mm x 75mm x 145mm
