Inverter
Inovance · Inverter

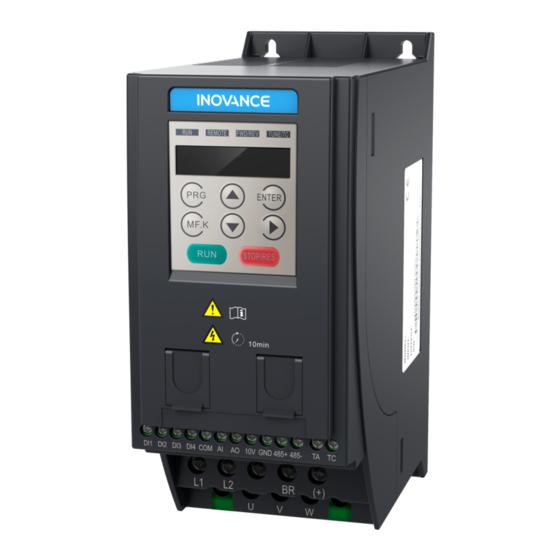

MD200S0.75B-NC
Inverter MD200
The Inovance MD200S0.75B-NC is an MD200 inverter. Rated specifications: Rated Current 4.6A, Frequency Max 500 Hz, Input Type Single-phase 200 to 240 Vac -15% to +10%, Output Type 200 to 240 Vac (proportional to input voltage). It draws 0.75kW. The body measures 180mm x 75mm x 145mm.
- Series Type
- MD200
- Model
- MD200S0.75B-NC
- Power
- 0.75kW
- Rated Current
- 4.6A
In stockModel: MD200S0.75B-NC
Performance highlights
Engineered for precise industrial imaging
- Open loop V/F & sensorless vector control
- Automatic torque boost
- Slip compensation
- Easy start-up with simplified parameters
- Flexible programmable I/Os
- Built-in dynamic braking unit
Technical data
Product parameters
Basic
- Series Type
- MD200
- Model
- MD200S0.75B-NC
- Power
- 0.75kW
- Rated Current
- 4.6A
- Frequency
- Max 500 Hz
- Input Type
- Single-phase 200 to 240 Vac -15% to +10%
- Output Type
- 200 to 240 Vac (proportional to input voltage)
- Brake Control
- Integrate
Control
- Control Mode
- Frequency - sensorless vector
- Overload Capacity
- 150% for 60 s & 180% for 3 s
Power Supply
- Supply Voltage
- Single-phase 220 Vac
Mechanical
- Dimensions
- 180mm x 75mm x 145mm
Mechanical drawing
Compact housing dimensions
180mm x 75mm x 145mm
