Motion ControlMotion Card - IMC60G-E-016-PCIe
Inovance · Motion Control

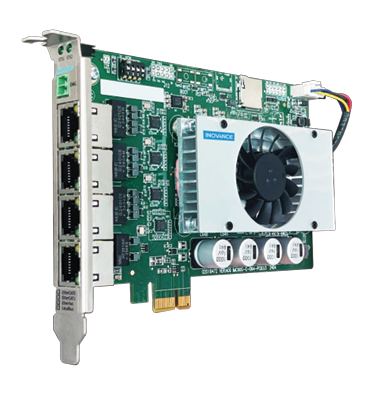

IMC60G-E-016-PCIe

Motion Card

The Inovance IMC60G-E-016-PCIe is an IMC60 Series motion control. Rated specifications: Axis 16, Card Type PCI-e, DI 8-channel digital input, DO 8-channel digital output.

Series Type
IMC60 Series
Model
IMC60G-E-016-PCIe
Card Type
PCI-e
Axis
16
In stockModel: IMC60G-E-016-PCIe
Get a quote
Performance highlights

Engineered for precise industrial imaging

  • Ultimate performance: The performance of the main control chip is improved by four times and the efficiency of response to key commands is improved by five times compared with the previous generation.
  • High-speed bus: 32 axes achieve precise control with a control cycle of 250 μs and a minimum bus scanning cycle of 62.5 μs
  • Dual-master configuration: Supports a universal master device and a
  • dedicated high-speed I/O master device, with the high-speed I/O master device capable of processing 1280 inputs and 1280 outputs within 125 μs
  • Convenient and easy-to-use: Servo parameters can be read/written in batches and one-click automatic parameter configuration is supported
