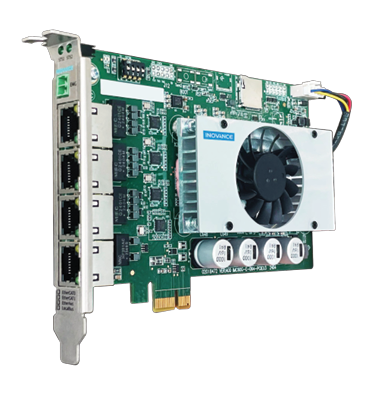

IMC60G-E-006-PCIe

Engineered for precise industrial imaging

• Ultimate performance: The performance of the main control chip is improved by four times and the efficiency of response to key commands is improved by five times compared with the previous generation.
• High-speed bus: 32 axes achieve precise control with a control cycle of 250 μs and a minimum bus scanning cycle of 62.5 μs
• Dual-master configuration: Supports a universal master device and a
• dedicated high-speed I/O master device, with the high-speed I/O master device capable of processing 1280 inputs and 1280 outputs within 125 μs
• Convenient and easy-to-use: Servo parameters can be read/written in batches and one-click automatic parameter configuration is supported
