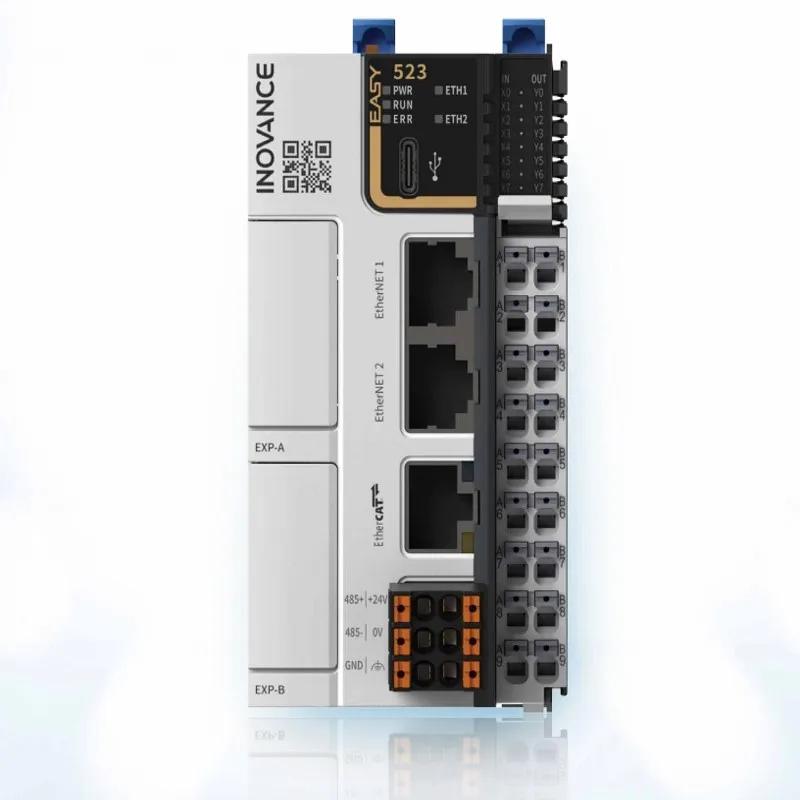

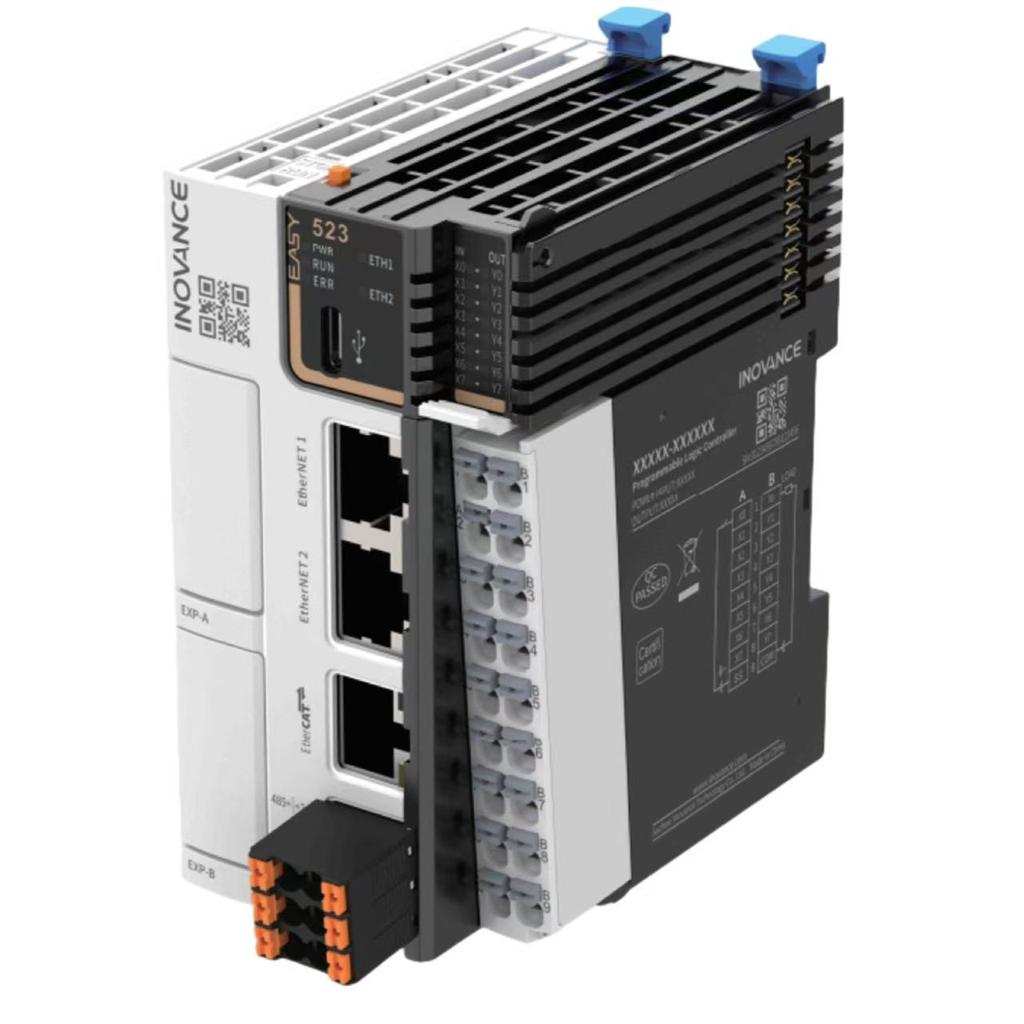

Easy523-0808TN
Easy 523
The Inovance Easy523-0808TN is an Easy Series PLC. Rated specifications: DI 8 Bits, DO 8 Bits, Program Memory 200 k step, Data Memory 2 Mbyte (128 KB non-volatile). The body measures 53mm x 100mm x 80mm.
- Series Type
- Easy Series
- Model
- Easy523-0808TN
- Scan Time
- 0.578 us
- Program Memory
- 200 k step
In stockModel: Easy523-0808TN
Performance highlights
Engineered for precise industrial imaging
- Compact footprint
- A complete product range – from the simplest to
- the most complex motion control capable PLC
- PLCopen compliant axis control
- Simulation mode for offline debugging
- Real-time fieldbus
Technical data
Product parameters
The Easy PLC series can cover anything from the simplest pulse control architecture to the most complex motion control applications using EtherCAT and Ethernet/IP
Basic
- Series Type
- Easy Series
- Model
- Easy523-0808TN
- Scan Time
- 0.578 us
- Program Memory
- 200 k step
- Data Memory
- 2 Mbyte (128 KB non-volatile)
IO
- DI
- 8 Bits
- DO
- 8 Bits
- PWM Output
- 5 pulse control axes
Module
- Module slot
- 16
- Remote Support
- None Support
- Module IO
- Gl20 Series
- Module Communication
- GE20 Series
Communication
- Communication
- EtherCAT slaves - Modbus TCP - Modbus RTU/ASC - Ethernet/IP
- Communication Support
- Modbus TCP up to 32 slaves - Ethernet/IP scanner/adapter - Modbus RTU/ASC 16 slaves
Motion
- Support Control
- A total of 32 synchronised axes are possible
Power Supply
- Supply Voltage
- DC24V
Programming
- Programming Software
- Auto Shop
- Language support
- LD, SFC, ST, FB/FC (supports encryption functionality)
Mechanical
- Dimensions
- 53mm x 100mm x 80mm
Mechanical drawing
Compact housing dimensions
53mm x 100mm x 80mm
