PLC
Inovance · PLC
Easy302-0808TN
Easy 302

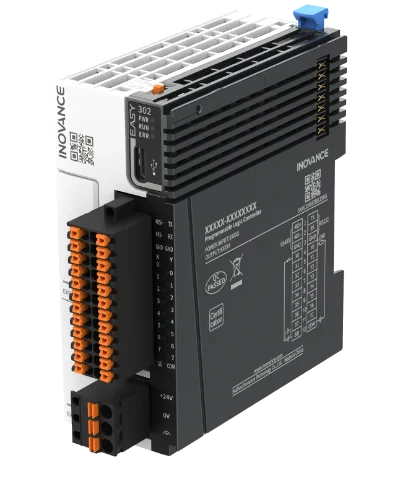

The Inovance Easy302-0808TN is an Easy Series PLC. Rated specifications: DI 8 Bits, DO 8 Bits, Program Memory 128 K step, Data Memory 1 Mbyte (128 KB non-volatile). The body measures 40mm x 100mm x 83mm.
- Series Type
- Easy Series
- Model
- Easy302-0808TN
- Scan Time
- 0.578 us
- Program Memory
- 128 K step
In stockModel: Easy302-0808TN
Performance highlights
Engineered for precise industrial imaging
- Compact footprint
- A complete product range – from the simplest to
- the most complex motion control capable PLC
- PLCopen compliant axis control
- Simulation mode for offline debugging
- Real-time fieldbus
Technical data
Product parameters
The Easy PLC series can cover anything from the simplest pulse control architecture to the most complex motion control applications using EtherCAT and Ethernet/IP
Basic
- Series Type
- Easy Series
- Model
- Easy302-0808TN
- Scan Time
- 0.578 us
- Program Memory
- 128 K step
- Data Memory
- 1 Mbyte (128 KB non-volatile)
IO
- DI
- 8 Bits
- DO
- 8 Bits
- PWM Output
- 5 pulse control axes
Module
- Module slot
- 16
- Remote Support
- None Support
- Module IO
- Gl20 Series
- Module Communication
- GE20 Series
Communication
- Communication
- Modbus RTU/ASC 16 slaves - 1 x CAN expansion
- Communication Support
- Serial communication
Power Supply
- Supply Voltage
- DC24V
Programming
- Programming Software
- Auto Shop
- Language support
- LD, SFC, ST, FB/FC (supports encryption functionality)
Mechanical
- Dimensions
- 40mm x 100mm x 83mm
Mechanical drawing
Compact housing dimensions
40mm x 100mm x 83mm
