Industrial Camera
Allied Vision · Industrial Camera

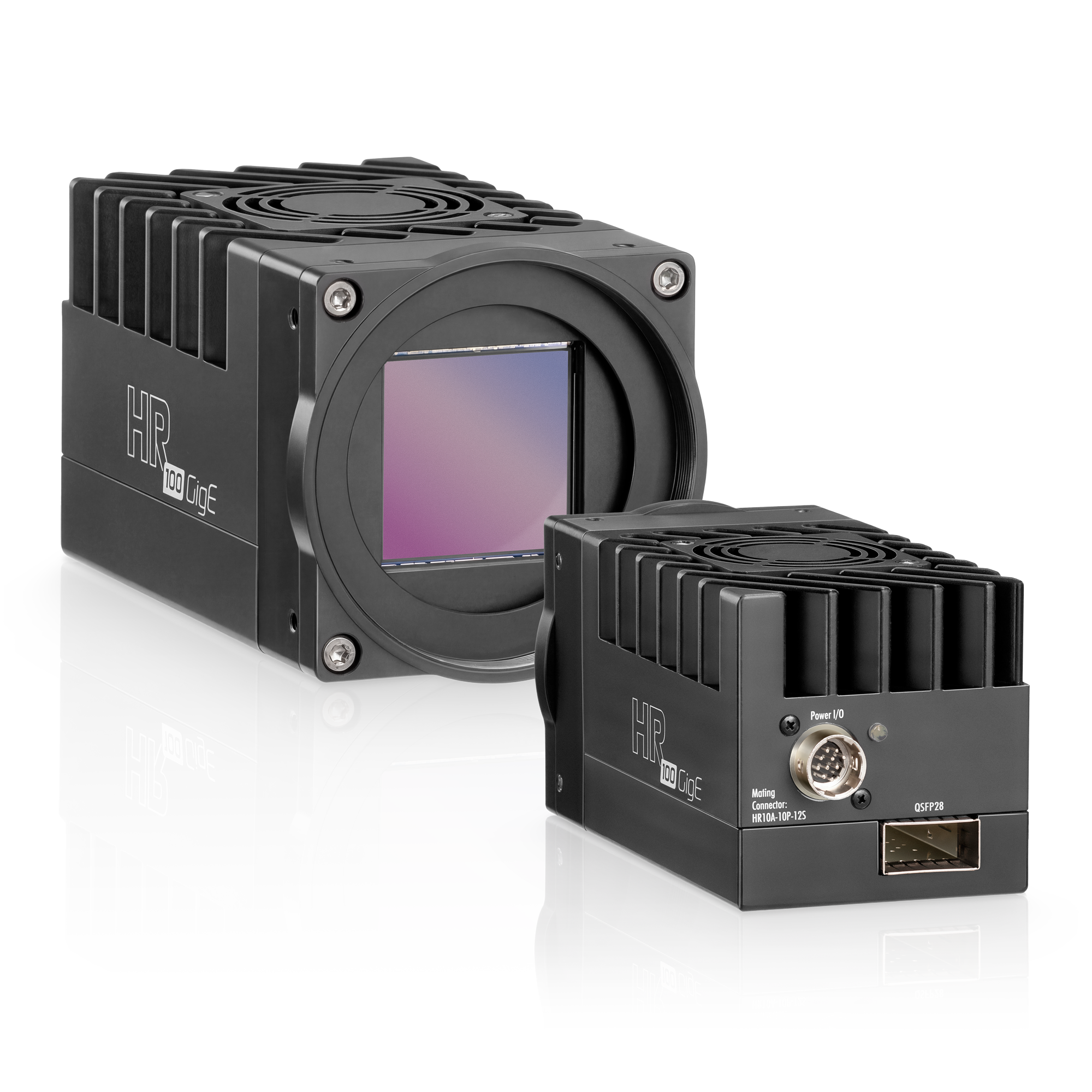

hr949C100GE
Camera 12MP
The Allied Vision hr949C100GE is a 13 MP colour GigE industrial camera. It is built on the Sony IMX949 (1.1" CMOS) sensor with a global shutter and reads out 4112 x 3088 at 811 fps. It takes M58 x0.75 optics and connects over GigE (100gige (QSFP28)), outputting bayer8, bayer10, bayer12 at up to 12 bits. It runs on 24 to 25VDC and operates from -10 °C to 60 °C. The body measures 93 × 62 × 62mm and weighs 550 g.
- Series Type
- Area Camera
- Sensor
- 1.1" CMOS
- Image Sensor
- Sony IMX949
- Shutter
- Global
In stockModel: hr949C100GE
Performance highlights
Engineered for precise industrial imaging
- Ultra-fast Sony sensors
- Advanced thermal design
- Flexible QSFP28 interface
- Reliable RDMA streaming
Technical data
Product parameters
The HR 100GigE Series delivers tangible advantages that directly translate into higher performance, greater reliability, and more flexible system design
Basic
- Series Type
- Area Camera
- Sensor
- 1.1" CMOS
- Image Sensor
- Sony IMX949
- Shutter
- Global
- Resolution
- 4112 x 3088
- Frame Rate
- 811 fps
- Bit Depth
- 12
- Type
- Color
- Pixel Size
- 5.48 µm × 5.48 µm
- Image Format
- bayer8, bayer10, bayer12
- ROI
- Support
- X Flip
- Support
- Y Flip
- Support
- Gain
- 0.0 dB to 48.0 dB
- Exposure Time
- 8 µs to 60 s
Performance
- Image Buffer
- 4032 MByte
Communication
- Interface
- 100gige (QSFP28)
- Digital IO
- 12-pin Hirose HR10A-10P-12S
- Mount
- M58 x0.75
Power Supply
- Input Voltage
- 24 to 25VDC
- Power
- External: 30 W (typical)
Environment
- Operating Temperature
- -10 °C to 60 °C
- Protection Class
- IP 30
Mechanical
- Dimensions
- 93 × 62 × 62mm
- Weight
- 550 g
Mechanical drawing
Compact housing dimensions
93 × 62 × 62mm
