Industrial Camera
Allied Vision · Industrial Camera

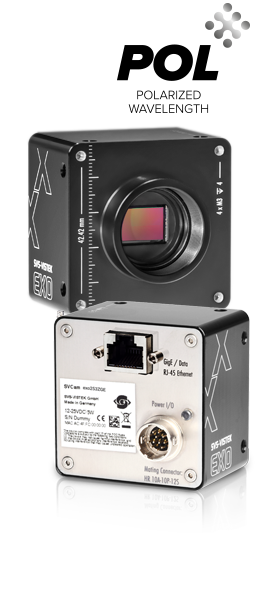

exo264ZGE
EXO Polarized
The Allied Vision exo264ZGE is a 5 MP monochrome GigE industrial camera. It is built on the Sony IMX264 Polarizer (2/3" - CMOS) sensor with a global shutter and reads out 2448 x 2048 at 24.5 fps. It takes C-mount optics and connects over GigE, outputting mono8, mono12packed at up to 12 bits. It runs on 10 to 25VDC, Power over Ethernet and operates from -10 °C to 60 °C. The body measures 43mm × 50mm × 50mm and weighs 140 g.
- Series Type
- Area Camera
- Sensor
- 2/3" - CMOS
- Image Sensor
- Sony IMX264 Polarizer
- Shutter
- Global
In stockModel: exo264ZGE
Performance highlights
Engineered for precise industrial imaging
- GenICam 3.0, GigE Vision, and USB3 Vision interface
- LUT, ROI, burst mode
- Electrical and optical inputs
- Up to 60°C operating temperature
- Integrated 4-channel strobe controller
- Industrial TTL-24V I/O interface with SafeTrigger, logic functions, programmable sequencers and timers, RS232 interface
Technical data
Product parameters
Our polarized industrial cameras set new standards in industrial image processing by offering the unique ability to filter reflected light, thereby revealing hidden details
Basic
- Series Type
- Area Camera
- Sensor
- 2/3" - CMOS
- Image Sensor
- Sony IMX264 Polarizer
- Shutter
- Global
- Resolution
- 2448 x 2048
- Frame Rate
- 24.5 fps
- Bit Depth
- 12
- Type
- Mono
- Pixel Size
- 3.45 µm × 3.45 µm
- Image Format
- mono8, mono12packed
- Gain
- 0.0 dB to 42.0 dB
- Exposure Time
- 27 µs to 60 s
- Trigger Mode
- internal, software, external
Performance
- Image Buffer
- 192 MByte
Communication
- Interface
- GigE
- Digital IO
- 0 x LVDS input, 0 x LVDS output, 0 x TTL input, 0 x TTL output, 2 x 24V input, 4 x Open drain output
- Mount
- C-mount
Power Supply
- Input Voltage
- 10 to 25VDC, Power over Ethernet
- Power
- External: 4.5 W (typical)
Environment
- Operating Temperature
- -10 °C to 60 °C
Mechanical
- Dimensions
- 43mm × 50mm × 50mm
- Weight
- 140 g
Mechanical drawing
Compact housing dimensions
43mm × 50mm × 50mm
