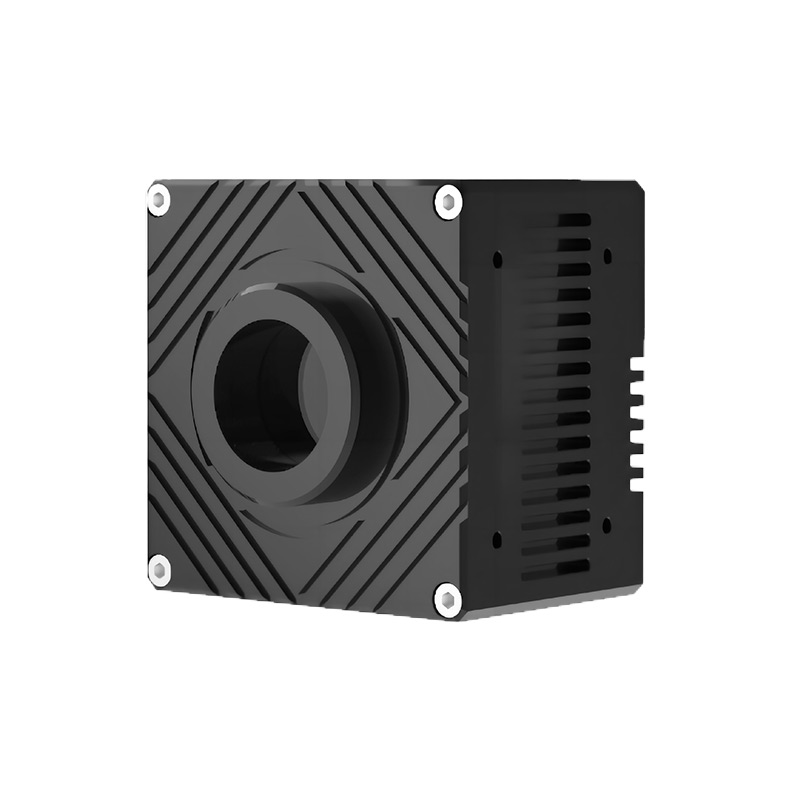

SM-SP13-F72-GMG-0C
SP13
The Mind Vision SM-SP13-F72-GMG-0C is a monochrome GigE industrial camera. It is built on the Sony - IMX990 (1/2" - InGaAs) sensor with a global shutter and reads out 1280 X 1024 at 72 fps. It takes C-mount optics and connects over GigE. It draws <12 W and operates from 0~50℃. The body measures 69mm x 69mm x 44mm and weighs <250g.
- Series Type
- SWIR Camera
- Sensor
- 1/2" - InGaAs
- Image Sensor
- Sony - IMX990
- Shutter
- Global
Out of stockModel: SM-SP13-F72-GMG-0C
Performance highlights
Engineered for precise industrial imaging
- Wide spectral response: Typically operates from 900–1700 nm, depending on the sensor.
- Flexible illumination: Can be combined with SWIR LED illumination at wavelengths such as 1050 nm, 1200 nm, 1300 nm, 1450 nm, 1550 nm and 1650 nm.
- Material-dependent contrast: Different materials have different absorption and reflection characteristics in the SWIR range.
Technical data
Product parameters
SWIR (Short-Wave Infrared) Camera is an industrial camera designed to capture images in the Short-Wave Infrared wavelength range, typically from approximately 900 nm to 1700 nm. Unlike conventional visible-light cameras, SWIR cameras can capture information that is invisible to the human eye.
Basic
- Series Type
- SWIR Camera
- Sensor
- 1/2" - InGaAs
- Image Sensor
- Sony - IMX990
- Shutter
- Global
- Resolution
- 1280 X 1024
- Frame Rate
- 72 fps
- Bit Depth
- 12
- Type
- Mono
- Pixel Size
- 5 μm × 5 μm
- Exposure Time
- 0.0130~7987.2ms
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
Performance
- Image Buffer
- 256MB
Communication
- Interface
- GigE
- Digital IO
- 2 optocoupler isolated inputs, 2 optocoupler isolated outputs, and 1 bidirectional non-isolated IO
- Mount
- C-mount
Power Supply
- Input Voltage
- Support 12 - 24V with a tolerance of plus or minus 10%, typical value: 12V
- Power
- <12 W
Environment
- Operating Temperature
- 0~50℃
- Storage Temperature
- -30~60℃
- Relative Humidity
- 20~95%(No Condensation)
Mechanical
- Dimensions
- 69mm x 69mm x 44mm (without lens and rearcase connectors)
- Weight
- <250g
Mechanical drawing
Compact housing dimensions
69mm x 69mm x 44mm
