Industrial CameraUV Camera - MV-SUC800GU
Mind Vision · Industrial Camera

MV-SUC800GU

UV Camera

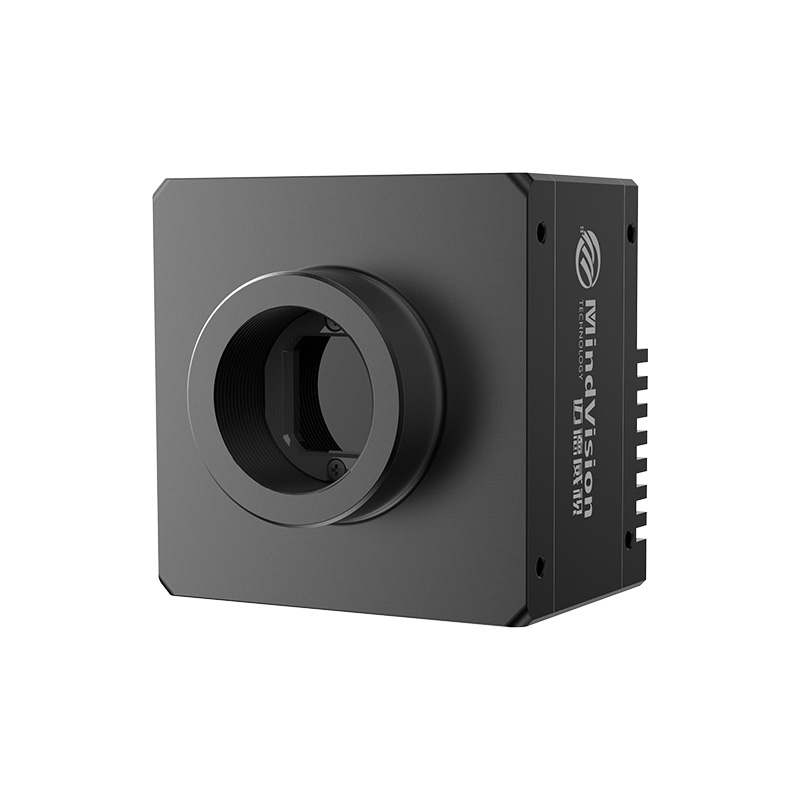

The Mind Vision MV-SUC800GU is an 8.1 MP monochrome USB3 industrial camera. It is built on the Sony (2/3" - CMOS) sensor with a global shutter and reads out 2840 x 2840 at 44.75 fps. It takes C-mount optics and connects over USB3 (USB 3.0), outputting mono8 at up to 12 bits. It draws <3.5 W from Power supply 12VDC and operates from 0℃~+50℃. The body measures 59.5mm × 59.5mm × 38.5mm and weighs <200 g.

Series Type
Area Camera
Sensor
2/3" - CMOS
Image Sensor
Sony
Shutter
Global
In stockModel: MV-SUC800GU
Get a quote
Performance highlights

Engineered for precise industrial imaging

  • Support UV wavelength shooting and global shutter.
  • The camera comes with programmable I/O.
  • Support external trigger strobe to take photos synchronously.
  • Support 8-bit data output.
  • Fully compatible with GIGE camera's SDK for seamless replacement.
  • Multiple cameras on one computer can work stably without dropping or losing frames for a long time.
  • Support PC Linux system and ARM Linux system, available to be integrated into embedded devices.
  • Compatible with Vision protocol, seamlessly compatible with Halcon, VisionPro, LabVIEW and other vision software.
MV-SUC800GUGet a quote
