SS5050PCG-12M-WGG01E
Smart Camera 5000
The iRayple SS5050PCG-12M-WGG01E is a 5 MP colour smart camera. It uses a global shutter and reads out 2592 × 1944 at 50 fps. It takes M10 optics. It draws <6 W(light included) and operates from -20 °C to 65 °C. The body measures 57mm×37mm×39mm(not including connector) and weighs <160 g.
- Series Type
- SS5000
- Resolution
- 2592 × 1944
- Frame Rate
- 50 fps
- Shutter
- Global
In stockModel: SS5050PCG-12M-WGG01E
Performance highlights
Engineered for precise industrial imaging
- Built-in ultra-high-performance AI processing chip, taking into account ease of use and flexibility while further improving processing efficiency
- Integrated design, full range of built-in motorized lenses, one-click focusing is easy and convenient
- Integrated high-power light source module, adapting to various near/medium/far detection scenarios
- Cross-platform Web access, guided configuration process, easy and convenient for users
- 100M Ethernet interface, IP67 protection level
- Abundant IO interfaces such as Ethernet, RS232, GPIO, support multiple communication protocols
- Built-in rich algorithm tools, can achieve object positioning, feature recognition, defect inspection and classification based on deep learning, and more
Technical data
Product parameters
Superior AI processing capabilities, suitable for a variety of complex detection scenarios at medium and long distances.
Basic
- Series Type
- SS5000
- Resolution
- 2592 × 1944
- Frame Rate
- 50 fps
- Shutter
- Global
- Type
- Color
- Function
- Location Tools: PatternMatch AI Tools: AI classification Exist Tools: FindLine; FindCircle; BlobExist Count Tools: BlobCount Measure Tools: Grayscale area; Contrast; Brightness; EdgeWidthTool Detection Tools: ContourCompare Recognition Tools: DataCode; BarCode; OCR Logic Tools: LogicCheck; ConditionCheck; Mathematical; StringComparison
- Focal Length
- 12mm
- Focus Control
- Auto Focus
- Light Source
- White, Polarized/Non-polarized/diffuse light
- Trigger Mode
- Internal Trigger/External Trigger/Ethernet/Serial/Industrial Ethernet.
- Software
- EasyVS, Web
View
- Working Distance
- 50-2000mm
- Field of View
- 21mm×16mm-929mm×697mm
Processing
- AI Accelerator
- Support
Communication
- Communication
- RS232, Ethernet
- Connector Port
- 2 Industrial M12 connectors support GigE and GPIO
- Network Port
- 100M Ethernet
- GPIO Interface
- RS232, 2 Opto-isolated inputs and 3 Opto-isolated outputs
- Communicate Protocol
- TCP Client, TCP Server, UDP, FTP, RS232, Profinet; Modbus TCP; EtherNet/IP
- Mount
- M10
Power Supply
- Input Voltage
- Support 16~26VDC, 1A input, suitable for industrial environment
- Power
- <6 W(light included)
Environment
- Operating Temperature
- -20 °C to 65 °C
- Storage Temperature
- -30~70℃
- Relative Humidity
- 20~95%(No Condensation)
Mechanical
- Dimensions
- 57mm×37mm×39mm(not including connector)
- Weight
- <160 g
- Protection
- IP67

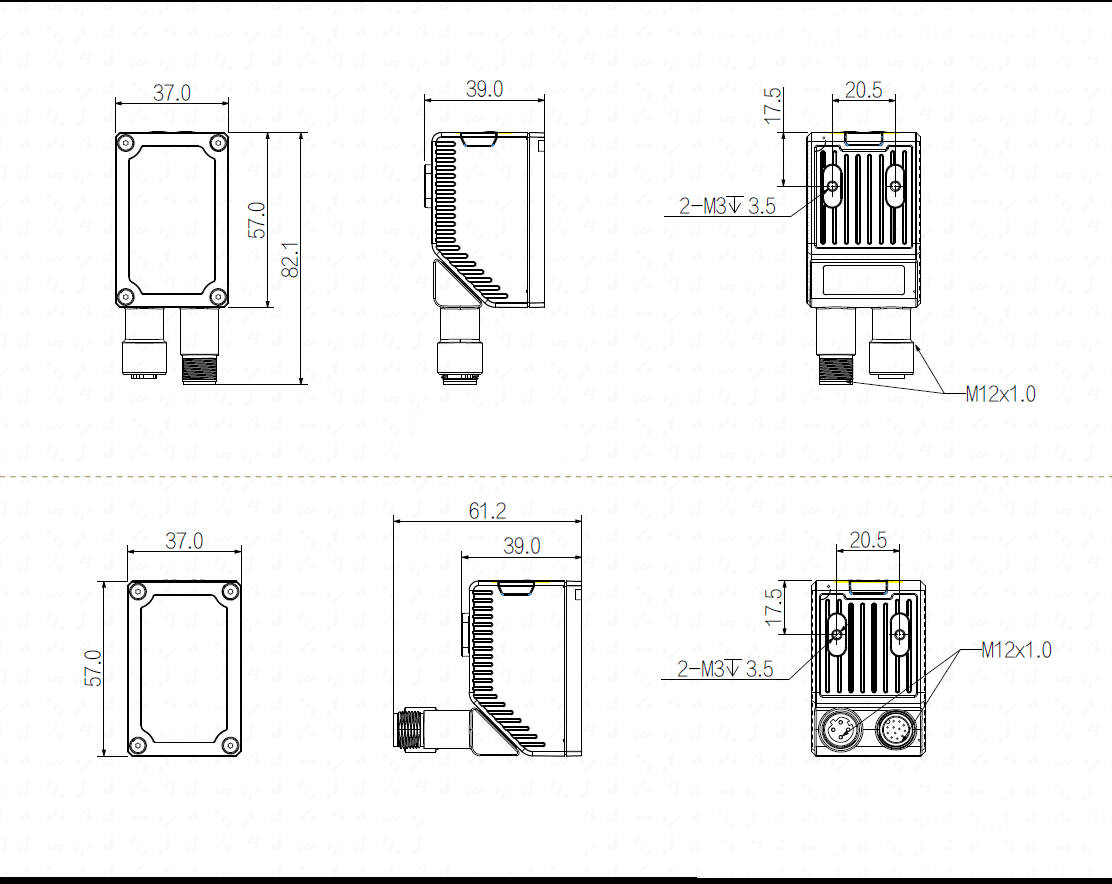

Mechanical drawing
Compact housing dimensions
57mm×37mm×39mm
