Smart Camera
iRayple · Smart Camera
SS3016PMG-07H-RGF01E
Smart Camera 3000

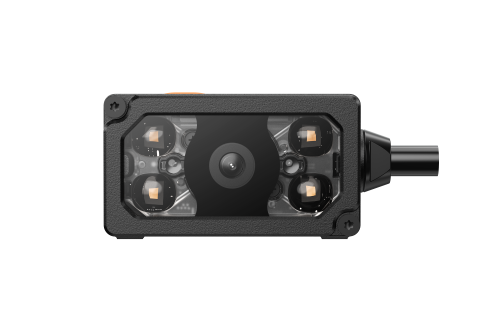

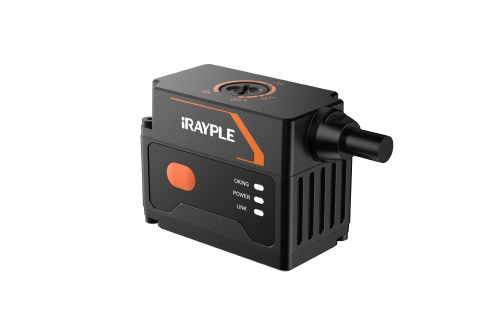

The iRayple SS3016PMG-07H-RGF01E is a 1.6 MP monochrome smart camera. It uses a global shutter and reads out 1440 × 1080 at 60 fps. It draws <8.8 W and operates from -20 °C to 65 °C. The body measures 45.0mm × 35.0mm × 25.5mm(Without cable) and weighs <110 g.
- Series Type
- SS 3000
- Resolution
- 1440 × 1080
- Frame Rate
- 60 fps
- Shutter
- Global
In stockModel: SS3016PMG-07H-RGF01E
Performance highlights
Engineered for precise industrial imaging
- Ultra-compact body design, can adapt to a variety of narrow installation space, and perfect integration with the machine equipment

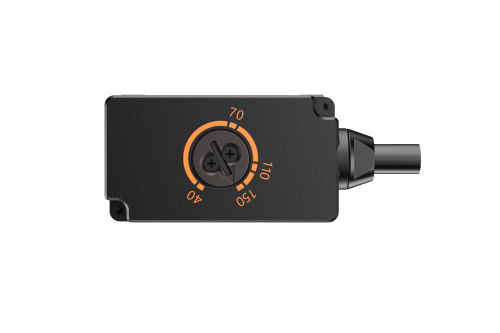

- Flexible and convenient manual focusing mode, which can cope with various close-range application scenarios
- 100m industrial Ethernet interface, IP65 protection grade
- Cross-platform Web access, guided configuration process, more convenient equipment debugging
- Rich IO interface, Ethernet, RS232, GPIO interface, supporting multiple communication protocols
- Built-in various easy-to-use operator tools can quickly realize various detection such as presence/absence, positive/negative, measurement, identification, etc.
Technical data
Product parameters
Ultra-compact body design, with a rich set of built-in algorithm tools for positioning, presence detection, measurement, counting, identification, and logical operations.
Basic
- Series Type
- SS 3000
- Resolution
- 1440 × 1080
- Frame Rate
- 60 fps
- Shutter
- Global
- Type
- Mono
- Function
- Location Tools: PatternMatch AI Tools: AI classification Exist Tools: FindLine、 FindCircle、 BlobExist Count Tools: BlobCount Measure Tools: Grayscale area 、Contrast、Brightness、EdgeWidthTool Detection Tools: ContourCompare Recognition Tools: DataCode、BarCode、OCR Logic Tools: LogicCheck、ConditionCheck、Mathematical、StringComparison
- Focal Length
- 7mm
- Focus Control
- Manual Focus
- Light Source
- Red polarization
- Trigger Mode
- Internal Trigger/External Trigger/Ethernet/Serial/Industrial Ethernet.
- Software
- EasyVS, Web
View
- Working Distance
- 40 mm - 150 mm
- Field of View
- 30 mm × 22 mm - 111 mm × 83 mm
Processing
- AI Accelerator
- Support
Communication
- Communication
- RS232, Ethernet
- Connector Port
- Industrial-grade M12 connectors are Ethernet and GPIO interfaces
- Network Port
- 100M Ethernet
- GPIO Interface
- 1x RS232 interface, 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
- Communicate Protocol
- TCP Client, TCP Server, UDP, FTP, RS232, Profinet、Modbus TCP、EtherNet/IP
Power Supply
- Input Voltage
- Support 9~26VDC, 1A input, suitable for industrial environment
- Power
- <8.8 W
Environment
- Operating Temperature
- -20 °C to 65 °C
- Storage Temperature
- -30~70℃
- Relative Humidity
- 20~95%(No Condensation)
Mechanical
- Dimensions
- 45.0mm × 35.0mm × 25.5mm(Without cable)
- Weight
- <110 g
- Protection
- IP65
Mechanical drawing

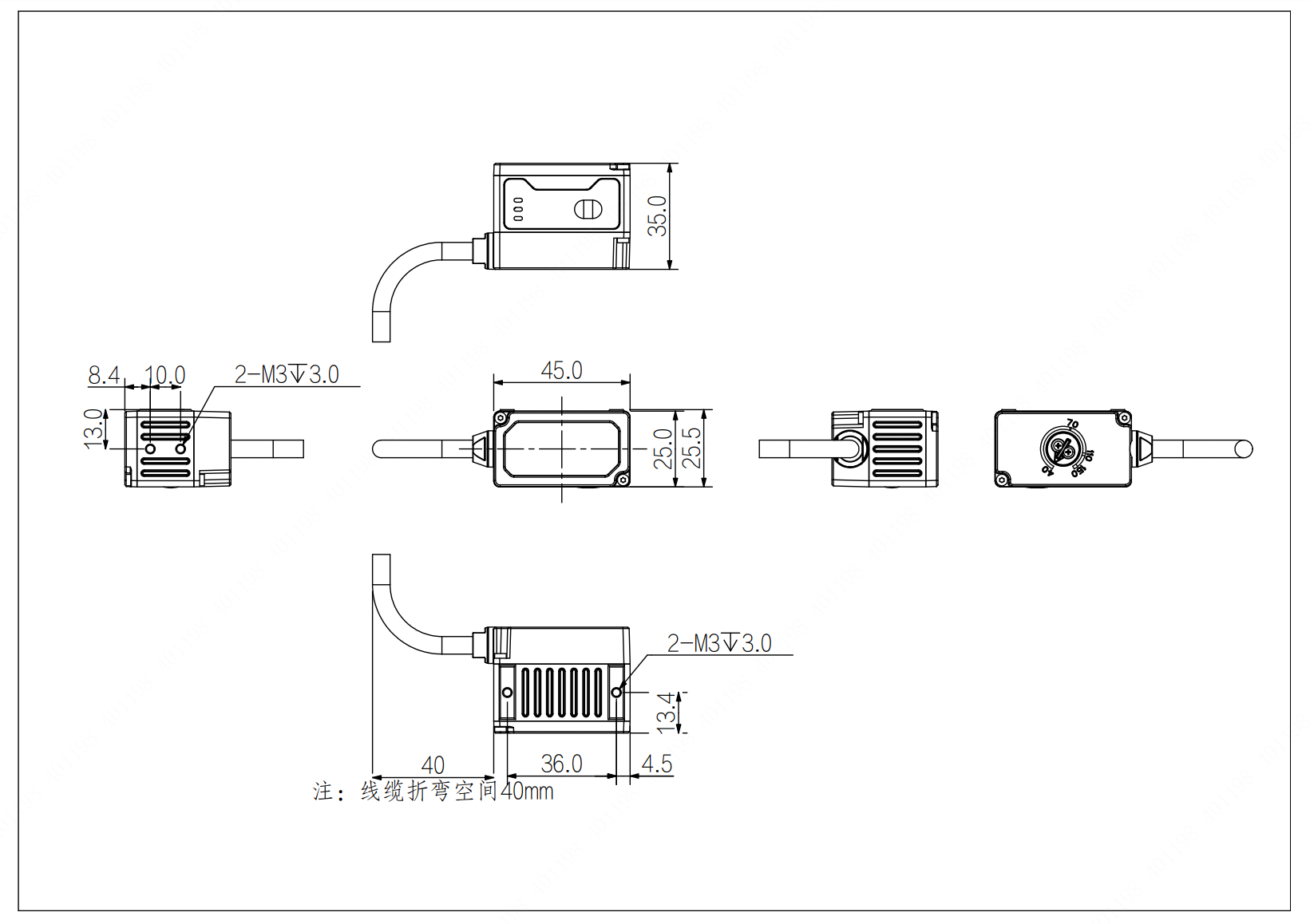

Compact housing dimensions
45.0mm × 35.0mm × 25.5mm
