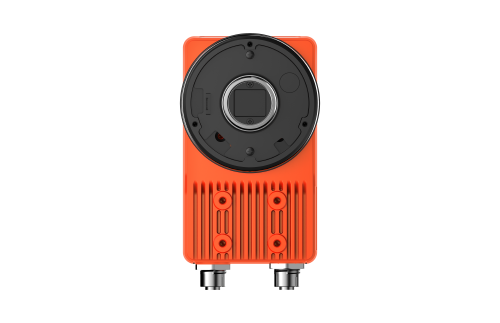

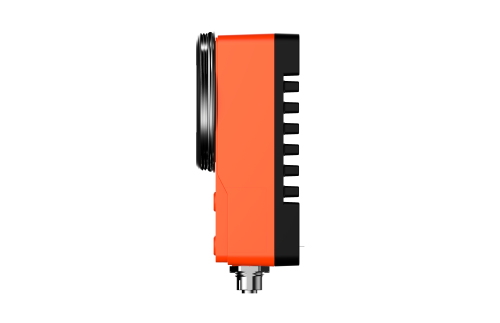

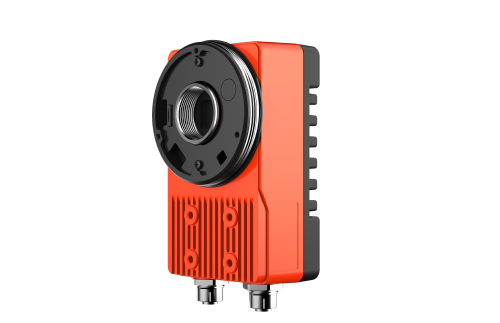

R7250MG-00C-NGG01E
Code Reader 7000
The iRayple R7250MG-00C-NGG01E is a 26 MP monochrome smart code. It uses a global shutter and reads out 5120 × 5104 at 12 fps. It draws <8.0W@DC24V (light not included) and operates from -20℃～+50℃. The body measures 117 mm × 69 mm × 43 mm and weighs ＜550 g.
- Series Type
- R7000
- Resolution
- 5120 × 5104
- Frame Rate
- 12 fps
- Shutter
- Global
In stockModel: R7250MG-00C-NGG01E
Performance highlights
Engineered for precise industrial imaging
- CMOS series product, high-speed capture
- Built-in deep learning algorithm, efficient and powerful algorithms
- GigE, up to 1Gbps bandwidth
- Industrial M12 connector, IP67
Technical data
Product parameters
AI-enabled R7000 series code readers achieve high decoding rates and support various 1D and 2D codes in complex scenarios. Ultra-high 20MP and 25MP resolutions can decode extremely small codes, as well as cover a large field of view (FOV) and depth of field (DOF) to decode multiple codes with sequential output. The C-mount design provides flexibility for customers to design the most suitable optical solution according to their applications.
Basic
- Series Type
- R7000
- Resolution
- 5120 × 5104
- Frame Rate
- 12 fps
- Shutter
- Global
- Type
- Mono
- Function
- lD: Code 39，Code 93，Code 128，CodaBar，EAN8，EAN13，UPCA，UPCE，ITF25，2of5（Industrial 2of5），standard25，GS1-128 etc. and 2D: QR/DM/MQR/GS1 DM/GS1 QR; Quality Evaluation: 1S0/IEC 29158(AIM-DPM), 1S0/IEC 15415, 1S0/IEC 15416
- Focal Length
- C-mount & Custom
- Focus Control
- Manual Focus
- Light Source
- Intergrate & Custom
- Trigger Mode
- Software trigger/External trigger/Free run modes
- Software
- EasyID
Decoding
- Reading Distance
- Customization
- Reading Field
- Customization
- Read Speed
- 90 codes/s
Communication
- Communication
- RS232, Ethernet
- Connector Port
- 2 Industrial connectors support GigE and GPIO
- Network Port
- Code-A,GigE
- GPIO Interface
- 12Pins GPIO，RS232, 2 Opto-isolated inputs and 3 Opto-isolated outputs
- Communicate Protocol
- SmartSDK, TCP Client, Serial, FTP, HTTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, Fins, USB(HID), RS-232, Bluetooth
Power Supply
- Input Voltage
- 24VDC, 1A input, suitable for industrial environment
- Power
- <8.0W@DC24V (light not included)
Environment
- Operating Temperature
- -20℃～+50℃
- Storage Temperature
- -30℃～+70℃
- Relative Humidity
- 20%～95%(no condensation)
Mechanical
- Dimensions
- 117 mm × 69 mm × 43 mm(lens mount & connector not included)
- Weight
- ＜550 g
- Protection
- IP67 (with lens cover)

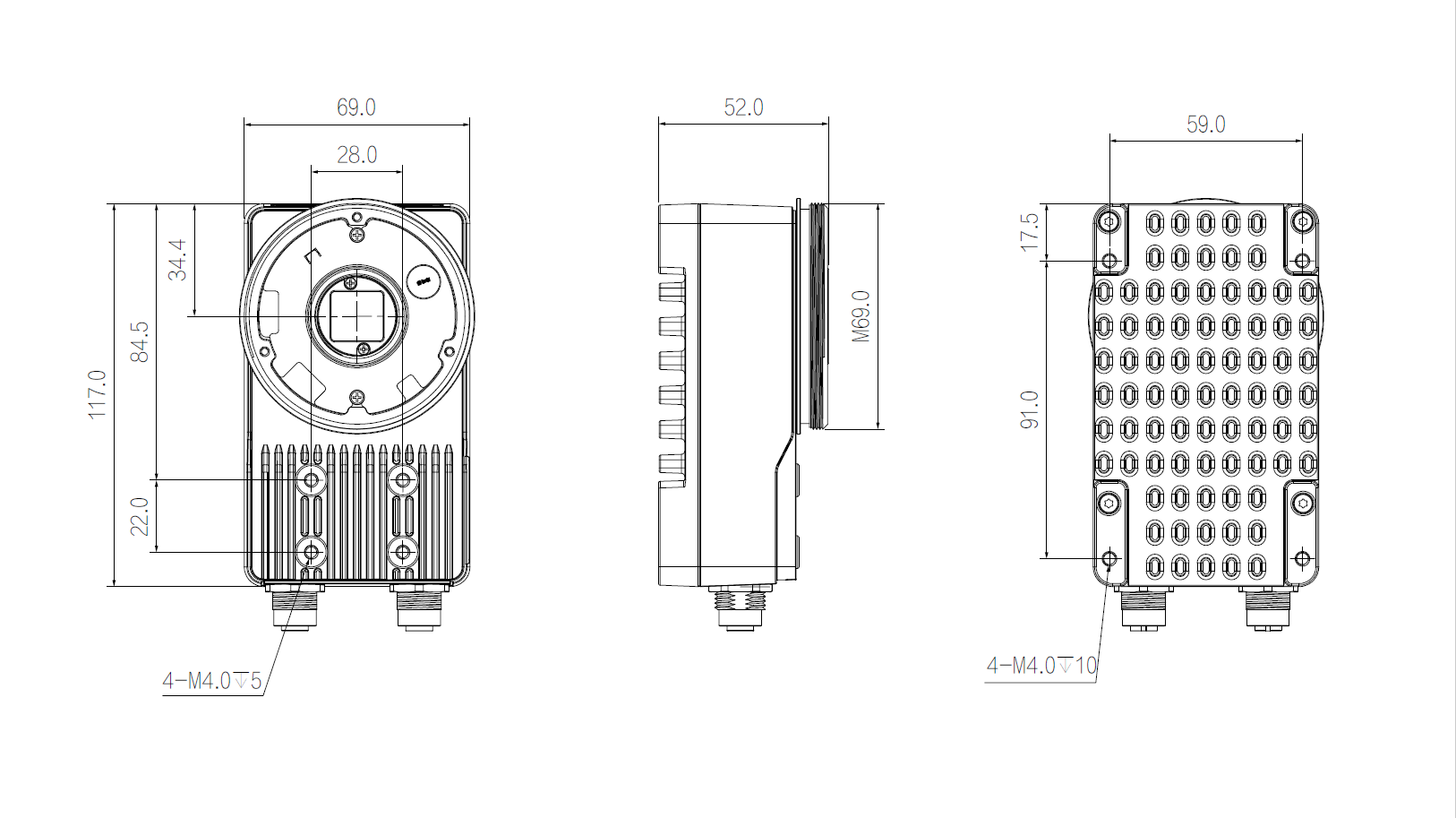

Mechanical drawing
Compact housing dimensions
117 mm × 69 mm × 43 mm
