R4013MG-12M-RGG01E
Smart Code 4000

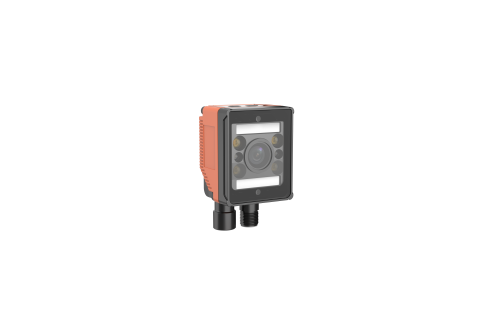

The iRayple R4013MG-12M-RGG01E is a 1.3 MP monochrome smart code. It uses a global shutter and reads out 1280 × 1024 at 60 fps. It draws <5W and operates from -20℃～+50℃. The body measures 47mm×58mm×38mm(not including connector) and weighs <180 g.
- Series Type
- R4000
- Resolution
- 1280 × 1024
- Frame Rate
- 60 fps
- Shutter
- Global
In stockModel: R4013MG-12M-RGG01E
Performance highlights
Engineered for precise industrial imaging
- Light-integrated design makes red/white/blue illumination optional, support control separately
- Support different focal lengths, electrical auto focus and one-click auto training
- 100M Ethernet interface, IP65 protection level
- Abundant IO interfaces such as Ethernet, RS232, GPIO, support multiple communication protocols
- Support various code formats and evaluations of code quality
- Built-in deep-learning based code reading algorithms and multi-parameters polling to ensure effects of complex applications
Technical data
Product parameters
AI-enabled R4000 series code readers achieve high decoding rates and support various 1D and 2D codes, even in complex scenarios. They feature three fully integrated illumination options: transparent, polarized, and diffused lights, each with R, G, and B color options, making them adaptable to a wide range of applications. Rotatable connectors and a compact design allow for easy installation in space-constrained areas.
Basic
- Series Type
- R4000
- Resolution
- 1280 × 1024
- Frame Rate
- 60 fps
- Shutter
- Global
- Type
- Mono
- Function
- lD: Code 39/Code 93/Code128/CodaBar/EAN8/EAN13/UPCA/UPCE/ITF25/2of5（Industrial2of5）/standard25/GS1-128 etc. and 2D: Data Matrix/MQR/GS1 DM/GS1QR etc.; Quality Evaluation: ISO/IEC 29158(AIM-DPM), ISO/IEC 15415, ISO/IEC 15416）
- Focal Length
- M12 - 12mm
- Focus Control
- Auto Focus
- Light Source
- Red (Difused/Polarized/Non-polarized）
- Trigger Mode
- Software trigger/External trigger/Free run modes
- Software
- EasyID
Decoding
- Code Type
- 1D - 2D
- Reading Distance
- 50-500mm
- Reading Field
- 64×51 mm (working distance:150mm）
- Read Speed
- 60 codes/s
Communication
- Communication
- RS232, Ethernet
- Connector Port
- 2 Industrial connectors support Ethernet and GPIO
- Network Port
- 100M Ethernet
- GPIO Interface
- RS232, 2 Opto-isolated inputs and 3 Opto-isolated outputs
- Communicate Protocol
- SDK,TCP Client,TCP Server,FTP,RS232,Profinet,Modbus,EtherNet/IP,MC(SLMP),FINS/UDP,FINS/TCP
Power Supply
- Input Voltage
- 9~26V DC, 1.5A input, suitable for industrial environment
- Power
- <5W
Environment
- Operating Temperature
- -20℃～+50℃
- Storage Temperature
- -30℃～+70℃
- Relative Humidity
- 20%～95%(no condensation)
Mechanical
- Dimensions
- 47mm×58mm×38mm(not including connector)
- Weight
- <180 g
- Protection
- IP65

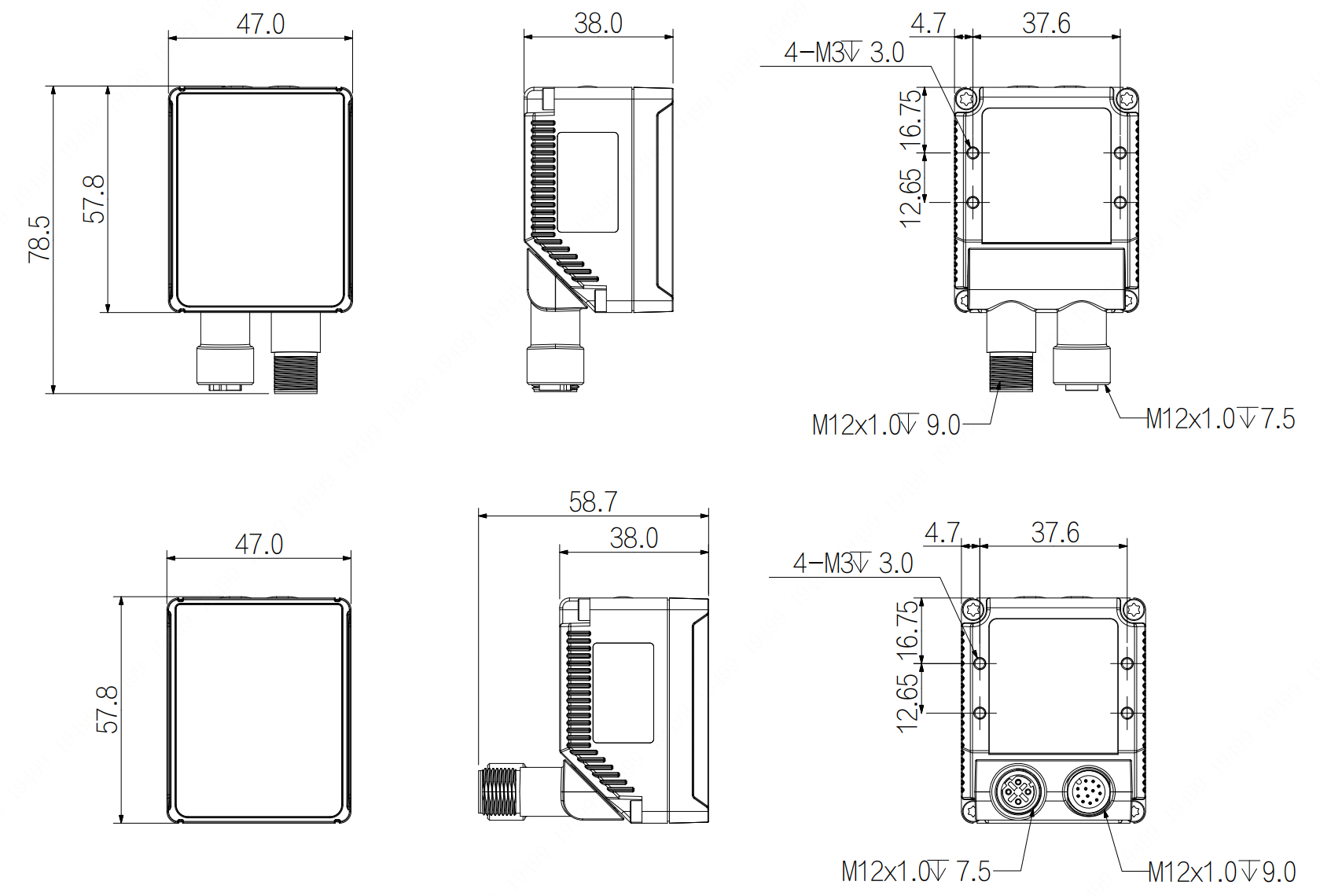

Mechanical drawing
Compact housing dimensions
47mm×58mm×38mm
