Smart CodeAGV Code - R3138MG010E
iRayple · Smart Code

R3138MG010E

AGV Code

The iRayple R3138MG010E is an AGV Code smart code. Rated specifications: Reading Field 110 mm × 93 mm, Reading Distance 100 mm - DoF: ±20mm, Light Source WhiteLed, Frame Rate 120 fps. It runs on DC24V±10% and operates from -20℃～+50℃. It weighs Net: <225 g - Gross: <350 g.

Series Type
AGV Code
Frame Rate
120 fps
Shutter
Global
Type
Mono
In stockModel: R3138MG010E
Get a quote
Performance highlights

Engineered for precise industrial imaging

  • High performance decode algorithm, can be applied when DM code is under condition of dirty/defect/low contrast during operation.
  • Embedded decode algorithm. High speed/accuracy.
  • Support DM-12&DM-14 and DM code array.
  • Embedded aviation plug, abundant IO interfaces.

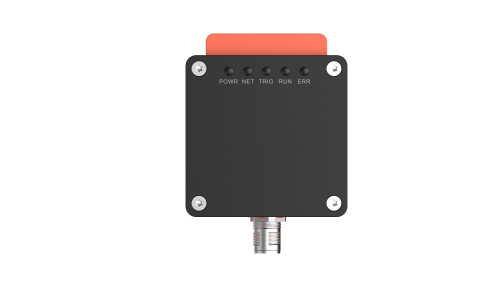

  • 5-way indicator for debug and camera status monitoring.
  • Support multiple UserSet parameter save/load/switch.
  • Apply M12 FA lens, supports locating DM code in large FOV.
