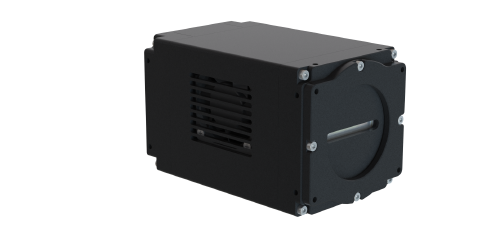

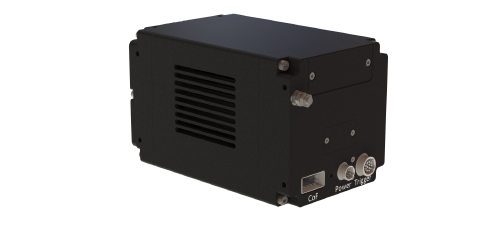

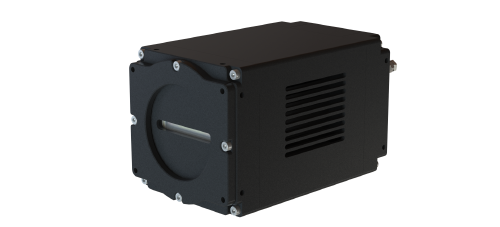

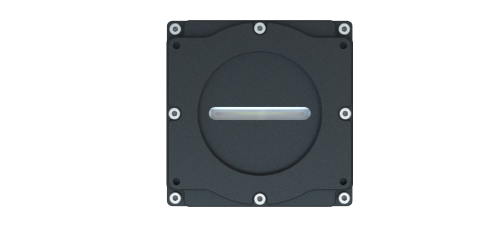

MV-L087MQ-T
Line Scan 8K
The iRayple MV-L087MQ-T is a 2.1 MP monochrome industrial camera. It is built on the TDI (8K - CMOS) sensor with a global shutter and reads out 8192 × 256 at 50kHz~1MHz. It takes M58 x 0.75 optics and connects over QSFP28, outputting Mono8/Mono10/Mono12 at up to 12 bits. It draws <60W and operates from 0℃~+50℃. The body measures 92mm×92mm×140mm and weighs ≤2kg.
- Series Type
- Line Scan Camera
- Sensor
- 8K - CMOS
- Image Sensor
- TDI
- Shutter
- Global
Engineered for precise industrial imaging
- BSI TDI CMOS Sensor
- Pixel size 5um × 5um
- Support 256-TDI mode
- Maximum line rate of 1MHz
- Suitable for semiconductor, scientific experiments and other fields
Product parameters
The iRAYPLE line scan camera provides resolutions from 2K,4K, 8K to 16K. Supports data interfaces GigE, Camera Link, 10GigE, and CXP-6, enabling efficient transmission of high-frequency data and suitable for fast-paced production lines. It supports various ISPs and algorithms, making it versatile for use in industries like PV, EV, display panels, and printing.
Basic
- Series Type
- Line Scan Camera
- Sensor
- 8K - CMOS
- Image Sensor
- TDI
- Shutter
- Global
- Resolution
- 8192 × 256
- Frame Rate
- 50kHz~1MHz
- Bit Depth
- 12
- Type
- Mono
- Pixel Size
- 5 μm × 5 μm
- Image Format
- Mono8/Mono10/Mono12
- Dynamic Range
- 60.5 dB
- ROI
- One ROI in the horizontal direction, with a minimum ROI width of 128 pixels, and a single CXPoF setting step size of 64 pixels
- Gain
- ×1~×16
- Trigger Mode
- Free run, software, and external trigger
Communication
- Interface
- QSFP28
- Mount
- M58 x 0.75
Power Supply
- Input Voltage
- 24V DC±2V power supply via 6-pin Hirose interface
- Power
- <60W
Environment
- Operating Temperature
- 0℃~+50℃
Mechanical
- Dimensions
- 92mm×92mm×140mm
- Weight
- ≤2kg

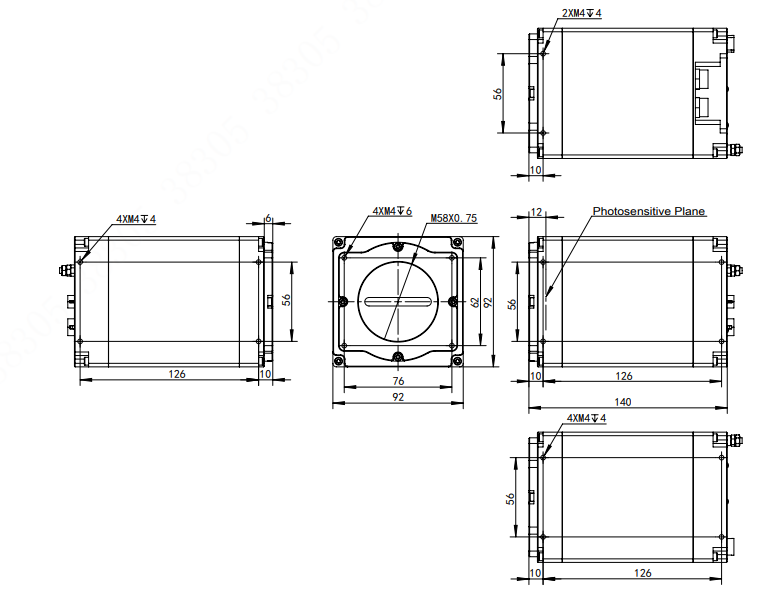

Compact housing dimensions
92mm×92mm×140mm
