L5167MPA90E
Line Scan 16K
The iRayple L5167MPA90E is a 0.3 MP monochrome CoaXPress industrial camera. It is built on the (16K - CMOS) sensor with a global shutter at 16384 × 16. It connects over CoaXPress (CXP-12), outputting Mono8/Mono10/Mono12 at up to 12 bits. It draws 23W @24 VDC and operates from -30℃~+50℃. The body measures 99 mm × 99 mm × 65 mm and weighs About 930g.
- Series Type
- Line Scan Camera
- Sensor
- 16K - CMOS
- Shutter
- Global
- Resolution
- 16384 × 16
In stockModel: L5167MPA90E
Performance highlights
Engineered for precise industrial imaging
- CoaxPress uses CXP-12, with a theoretical bandwidth of 4*12.5Gbps
- Support 2TD, 4TDI, 8TDI, 16TDI modes
- Support Software Trigger/Hardware Trigger/Free Run mode
- Support user-defined ROI, horizontal mirror
- Support PoCXP and DC 24V power supply
- Conforms to CoaXPress protocol and GenICam standard
- Conform to CE、KC and RoHS
Technical data
Product parameters
The iRAYPLE line scan camera provides resolutions from 2K,4K, 8K to 16K. Supports data interfaces GigE, Camera Link, 10GigE, and CXP-6, enabling efficient transmission of high-frequency data and suitable for fast-paced production lines. It supports various ISPs and algorithms, making it versatile for use in industries like PV, EV, display panels, and printing.
Basic
- Series Type
- Line Scan Camera
- Sensor
- 16K - CMOS
- Shutter
- Global
- Resolution
- 16384 × 16
- Frame Rate
- 265kHz(1-Line), 132 kHz(2-TDI), 66 kHz(4-TDI), 33 kHz(8-TDI), 16 kHz(16-TDI)
- Bit Depth
- 12
- Type
- Mono
- Pixel Size
- 5 μm × 5 μm
- Image Format
- Mono8/Mono10/Mono12
- Binning
- Support
- Dynamic Range
- 57.7 dB
- ROI
- Support
- X Flip
- Support
- Gain
- 1～32
- Exposure Time
- 3μS~100mS
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
Performance
- User Setting
- Support three sets of user-defined configurations
Communication
- Interface
- CXP-12
- Digital IO
- 4 differential input, output, and 1 GPIO input, output
- Mount
- M90*1, flange back focus 12 mm; can be transferred to F-mount lens via adapter ring
Power Supply
- Input Voltage
- Powered by 12-pin Hirose interface, DC24V, supports PoCXP
- Power
- 23W @24 VDC
Environment
- Operating Temperature
- -30℃~+50℃
- Storage Temperature
- -30~80℃
Mechanical
- Dimensions
- 99 mm × 99 mm × 65 mm (Non including rear case connector)
- Weight
- About 930g

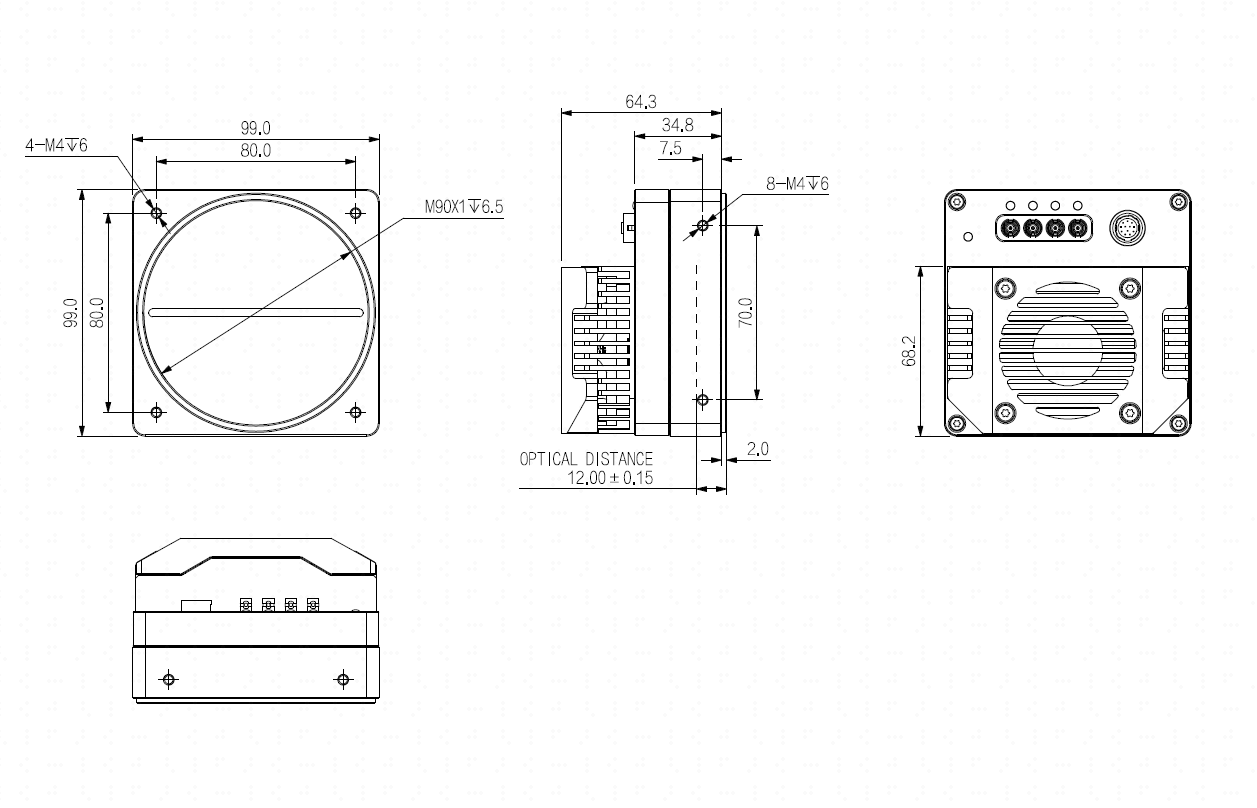

Mechanical drawing
Compact housing dimensions
99 mm × 99 mm × 65 mm
