L5167CPA90
Line Scan 16K
The iRayple L5167CPA90 is a 0.2 MP colour CoaXPress industrial camera. It is built on the (16K - CMOS) sensor with a global shutter and reads out 16384 × 12 at 92 kHz(1-Line), 45.3 kHz(2-TDI), 23.1 kHz(4-TDI). It connects over CoaXPress (CXP-12), outputting RGB8 at up to 12 bits. It draws 21W @24 VDC and operates from -30℃~+50℃. The body measures 99 mm × 99 mm × 65 mm and weighs About 930g.
- Series Type
- Line Scan Camera
- Sensor
- 16K - CMOS
- Shutter
- Global
- Resolution
- 16384 × 12
Engineered for precise industrial imaging
- Uses CoaXPress CXP-12, with a theoretical bandwidth of 4 × 12.5 Gbps.
- Supports 16-line true-color imaging, with 2TDI and 4TDI modes.
- Supports multiple trigger modes, including software trigger, hardware trigger, and free-running mode.
- Supports custom ROI and horizontal image mirroring.
- Supports PoCXP power supply and external 24 V DC power supply.
- Compatible with the CoaXPress protocol and GenICam standard.
- Compliant with CE, KC, and RoHS standards.
Product parameters
The iRAYPLE line scan camera provides resolutions from 2K,4K, 8K to 16K. Supports data interfaces GigE, Camera Link, 10GigE, and CXP-6, enabling efficient transmission of high-frequency data and suitable for fast-paced production lines. It supports various ISPs and algorithms, making it versatile for use in industries like PV, EV, display panels, and printing.
Basic
- Series Type
- Line Scan Camera
- Sensor
- 16K - CMOS
- Shutter
- Global
- Resolution
- 16384 × 12
- Frame Rate
- 92 kHz(1-Line), 45.3 kHz(2-TDI), 23.1 kHz(4-TDI)
- Bit Depth
- 12
- Type
- Color
- Pixel Size
- 5 μm × 5 μm
- Image Format
- RGB8
- Binning
- Support
- Dynamic Range
- 68.5 dB
- ROI
- Support
- X Flip
- Support
- Gain
- 1～32
- Exposure Time
- 4μS~100mS
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
Performance
- User Setting
- Support three sets of user-defined configurations
Communication
- Interface
- CXP-12
- Digital IO
- 4 differential input, output, and 1 GPIO input, output
- Mount
- M90*1, flange back focus 12 mm; can be transferred to F-mount lens via adapter ring
Power Supply
- Input Voltage
- Powered by 12-pin Hirose interface, DC24V, supports PoCXP
- Power
- 21W @24 VDC
Environment
- Operating Temperature
- -30℃~+50℃
- Storage Temperature
- -30~80℃
Mechanical
- Dimensions
- 99 mm × 99 mm × 65 mm (Non including rear case connector)
- Weight
- About 930g

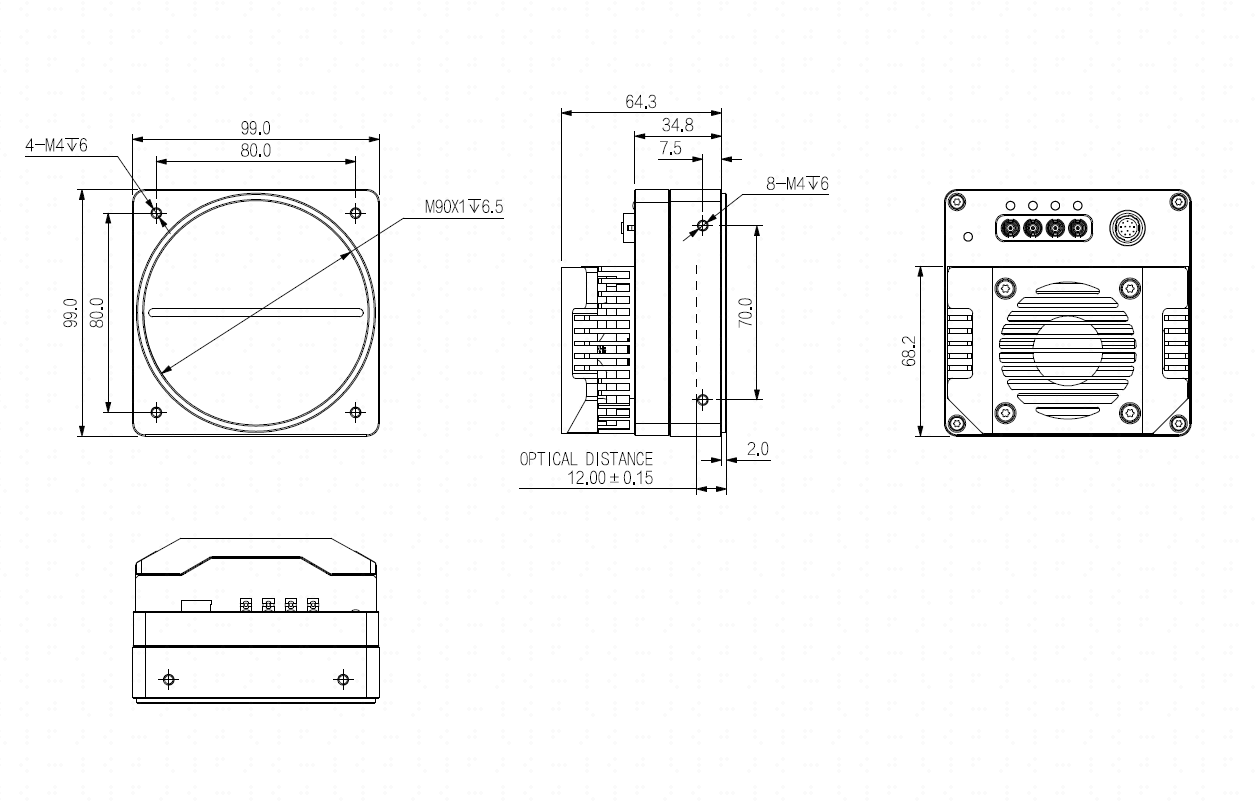

Compact housing dimensions
99 mm × 99 mm × 65 mm
