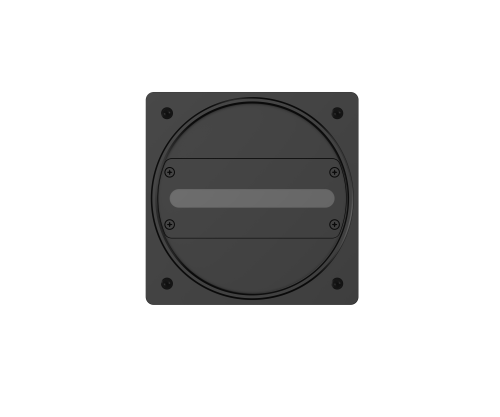

L5087MX470E
Line Scan 8K
The iRayple L5087MX470E is a monochrome CoaXPress industrial camera. It is built on the (8K - CMOS) sensor with a global shutter and reads out 8192 × 4 at 200 kHz. It takes M72 x 0.75 optics and connects over CoaXPress (CXP-6), outputting Mono8/Mono10 at up to 10 bits. It draws 24V ≈ 9W and operates from -30℃~+50℃. It weighs 520 g.
- Series Type
- Line Scan Camera
- Sensor
- 8K - CMOS
- Shutter
- Global
- Resolution
- 8192 × 4
In stockModel: L5087MX470E
Performance highlights
Engineered for precise industrial imaging
- 8K resolution，Maximum 200K line rate，4 x 6.25Gbps theoretical transfer bandwidth
- High dynamic range, good signal-to-noise ratio, excellent image quality
- Supports multi-ROI FPN correction
- Support ISP functions such as Gamma, LUT, white balance, etc. Support software trigger/capture card trigger/free run multiple trigger modes
- Conforms to CoaXPress protocol and GenICam standard
- Support PoCXP and DC 24V power supply
Technical data
Product parameters
The iRAYPLE line scan camera provides resolutions from 2K,4K, 8K to 16K. Supports data interfaces GigE, Camera Link, 10GigE, and CXP-6, enabling efficient transmission of high-frequency data and suitable for fast-paced production lines. It supports various ISPs and algorithms, making it versatile for use in industries like PV, EV, display panels, and printing.
Basic
- Series Type
- Line Scan Camera
- Sensor
- 8K - CMOS
- Shutter
- Global
- Resolution
- 8192 × 4
- Frame Rate
- 200 kHz
- Bit Depth
- 10
- Type
- Mono
- Pixel Size
- 7 μm × 7 μm
- Image Format
- Mono8/Mono10
- Dynamic Range
- 63.3 dB
- ROI
- Support
- X Flip
- Support
- Gain
- 1～32
- Exposure Time
- 4μS~100mS
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
Performance
- User Setting
- Support two sets of user-defined configurations
Communication
- Interface
- CXP-6
- Mount
- M72 x 0.75
Power Supply
- Input Voltage
- DC 24V power supply via the 12-pin Hirose interface
- Power
- 24V ≈ 9W
Environment
- Operating Temperature
- -30℃~+50℃
- Storage Temperature
- -30~80℃
Mechanical
- Dimensions
- 80mm×80mm×57.1mm（Not including rear case connector）
- Weight
- 520 g

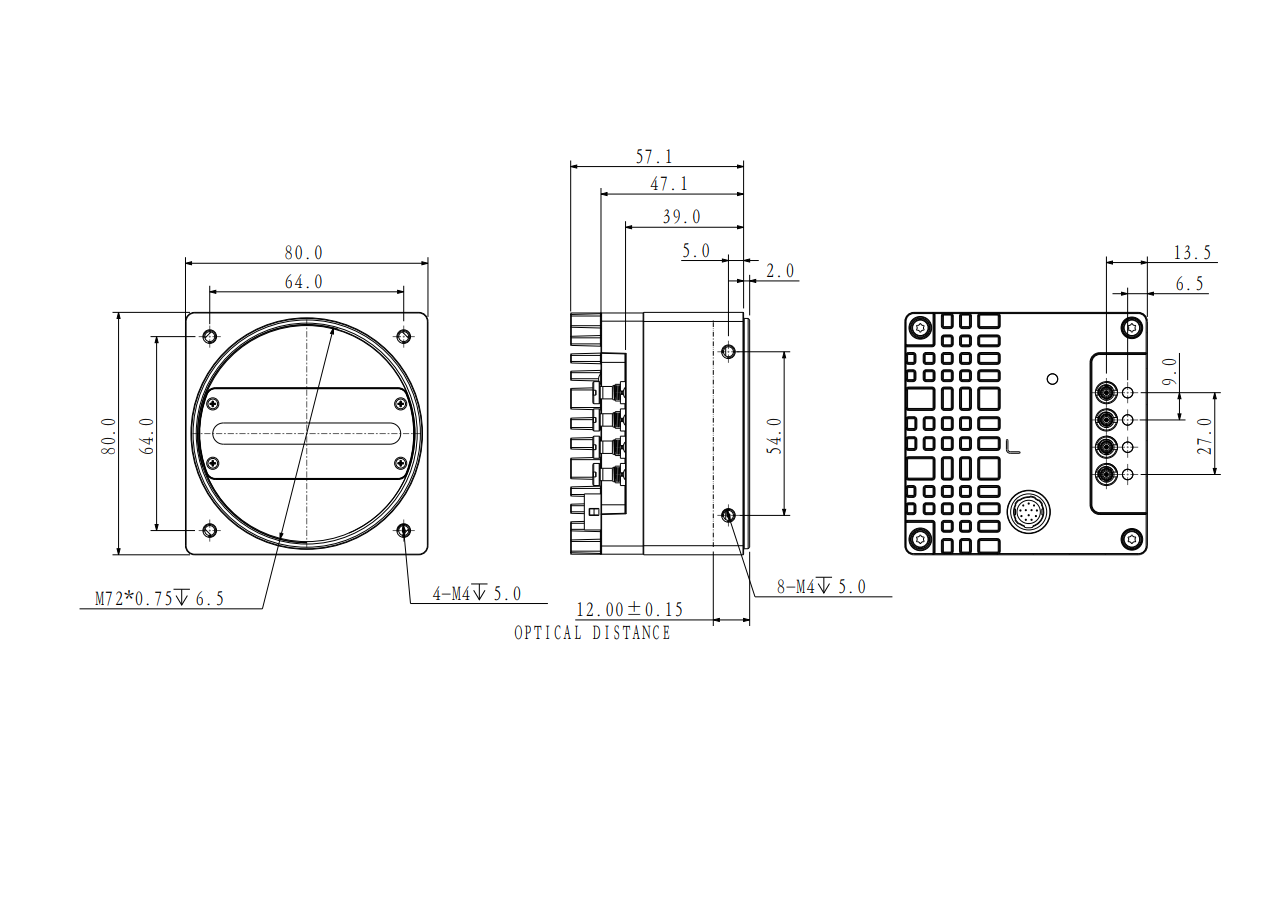

Mechanical drawing
Compact housing dimensions
80mm×80mm×57.1mm
