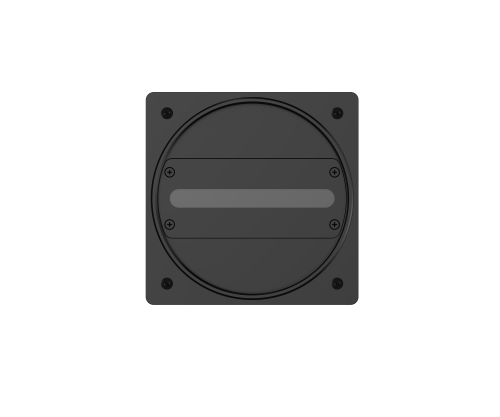

L5087MT270E
Line Scan 8K
The iRayple L5087MT270E is a monochrome 10GigE industrial camera. It is built on the (8K - CMOS) sensor with a global shutter and reads out 8192 × 2 at 148.8 kHz. It takes M72 optics and connects over 10GigE (10 GigE), outputting Mono8/10 at up to 12 bits. It draws 14 W and operates from 0℃~+50℃. The body measures 80mm×80mm×48.2mm and weighs 520 g.
- Series Type
- Line Scan Camera
- Sensor
- 8K - CMOS
- Shutter
- Global
- Resolution
- 8192 × 2
In stockModel: L5087MT270E
Performance highlights
Engineered for precise industrial imaging
- 10GigE interface, provides up to 10Gbps effective bandwidth
- Supports external trigger, free run mode and multiple modes
- Supports Gamma correction, LUT and other ISP functions
- Conform to GigE Vision protocol and GenICam standard
- Applies DC 24V power supply
- Comply with CE, UL, RoHS certifications
- True color RGB mode .
Technical data
Product parameters
The iRAYPLE line scan camera provides resolutions from 2K,4K, 8K to 16K. Supports data interfaces GigE, Camera Link, 10GigE, and CXP-6, enabling efficient transmission of high-frequency data and suitable for fast-paced production lines. It supports various ISPs and algorithms, making it versatile for use in industries like PV, EV, display panels, and printing.
Basic
- Series Type
- Line Scan Camera
- Sensor
- 8K - CMOS
- Shutter
- Global
- Resolution
- 8192 × 2
- Frame Rate
- 148.8 kHz
- Bit Depth
- 12
- Type
- Mono
- Pixel Size
- 7 μm × 7 μm
- Image Format
- Mono8/10
- Binning
- Support
- Dynamic Range
- 63.3 dB
- ROI
- Support
- X Flip
- Support
- Gain
- 1～32
- Exposure Time
- 4μS~100mS
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
Performance
- User Setting
- Support two sets of user-defined configurations
Communication
- Interface
- 10 GigE
- Digital IO
- 4 differential input, output, and 1 GPIO input, output
- Mount
- M72
Power Supply
- Input Voltage
- DC 12 ~ 24V power supply via the 12-pin Hirose interface
- Power
- 14 W
Environment
- Operating Temperature
- 0℃~+50℃
- Storage Temperature
- -30~80℃
Mechanical
- Dimensions
- 80mm×80mm×48.2mm(Not including rear case connector)
- Weight
- 520 g

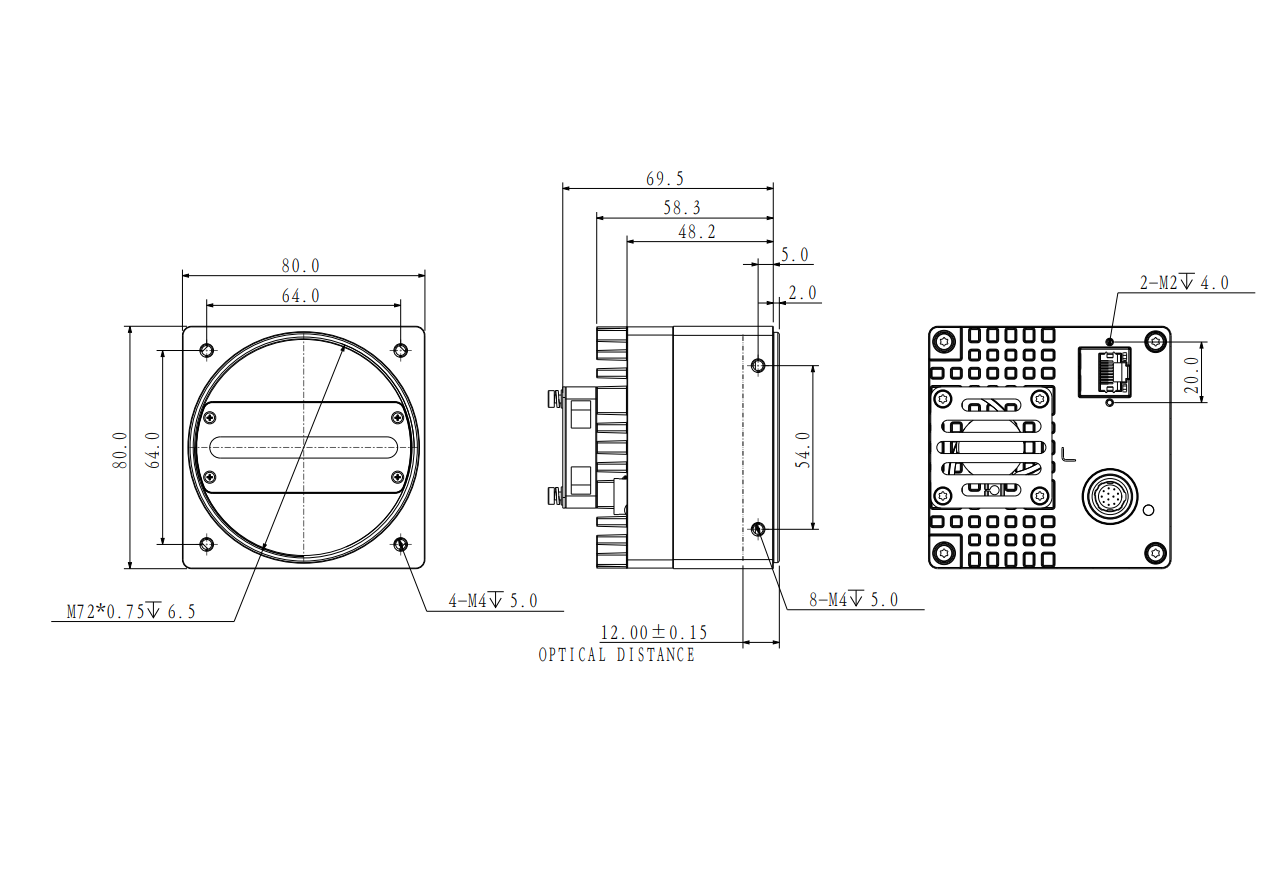

Mechanical drawing
Compact housing dimensions
80mm×80mm×48.2mm
