L5087MKA70E
Line Scan 8K
The iRayple L5087MKA70E is a monochrome Camera Link industrial camera. It is built on the (8K - CMOS) sensor with a global shutter and reads out 8192 × 4 at 100 kHz. It takes M72 optics and connects over Camera Link, outputting Mono8/10 at up to 12 bits. It draws 11.5 W and operates from -30℃~+50℃. The body measures 80 mm×80 mm×57.8 mm and weighs 520 g.
- Series Type
- Line Scan Camera
- Sensor
- 8K - CMOS
- Shutter
- Global
- Resolution
- 8192 × 4
In stockModel: L5087MKA70E
Performance highlights
Engineered for precise industrial imaging
- CameraLink supports Full, Medium, Base and Deca mode with maximum 6.8Gbps bandwidth
- Supports external trigger, free run mode and multiple modes
- Supports Gamma correction, LUT and other ISP functions
- Applies DC 24V power supply
- Compatible with Cameralink protocol and GenICam standard
- Comply with CE, UL, RoHS certifications.
Technical data
Product parameters
The iRAYPLE line scan camera provides resolutions from 2K,4K, 8K to 16K. Supports data interfaces GigE, Camera Link, 10GigE, and CXP-6, enabling efficient transmission of high-frequency data and suitable for fast-paced production lines. It supports various ISPs and algorithms, making it versatile for use in industries like PV, EV, display panels, and printing.
Basic
- Series Type
- Line Scan Camera
- Sensor
- 8K - CMOS
- Shutter
- Global
- Resolution
- 8192 × 4
- Frame Rate
- 100 kHz
- Bit Depth
- 12
- Type
- Mono
- Pixel Size
- 5 μm × 5 μm
- Image Format
- Mono8/10
- Dynamic Range
- 62 dB
- ROI
- Support
- X Flip
- Support
- Gain
- 1～32
- Exposure Time
- 3μS~100mS
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
Performance
- User Setting
- Support two sets of user-defined configurations
Communication
- Interface
- CameraLink,use to camera control and data transmission, support base, medium, full mode.
- Digital IO
- 4 differential input, output, and 1 GPIO input, output
- Mount
- M72
Power Supply
- Input Voltage
- DC 12 ~ 24V power supply via the 12-pin Hirose interface
- Power
- 11.5 W
Environment
- Operating Temperature
- -30℃~+50℃
- Storage Temperature
- -30~80℃
Mechanical
- Dimensions
- 80 mm×80 mm×57.8 mm(Not including rear case connector)
- Weight
- 520 g

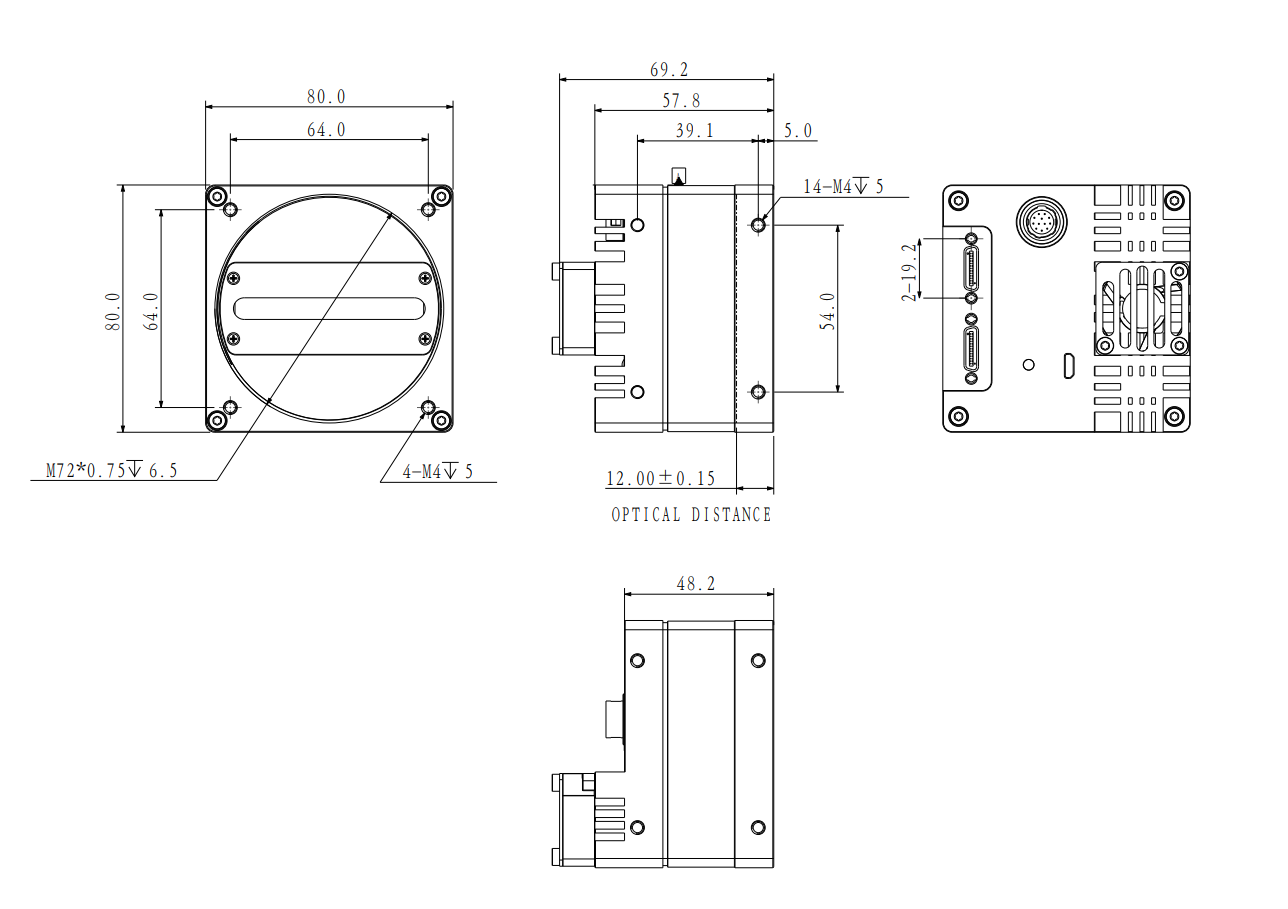

Mechanical drawing
Compact housing dimensions
80 mm×80 mm×57.8 mm
