L5047MK141E
Line Scan 4K
The iRayple L5047MK141E is a monochrome Camera Link industrial camera. It is built on the (4K - CMOS) sensor with a global shutter and reads out 4096 × 2 at 180 kHz. It takes M42 optics and connects over Camera Link (CameraLink), outputting Mono8/10 at up to 12 bits. It draws 4.5W from 12 ~ 24V VDC power supply and operates from -30℃~+50℃. The body measures 62 mm × 62 mm × 33.7 mm and weighs 200 g.
- Series Type
- Line Scan Camera
- Sensor
- 4K - CMOS
- Shutter
- Global
- Resolution
- 4096 × 2
Engineered for precise industrial imaging
- Support brightness enhancement, gamma correction, LUT and other ISP functions
- Support PRNU correction in target bright field
- Support various image formats of output data
- Support DC12~24V wide-range power supply
- Conform to CE, UL, RoHS certifications
Product parameters
The iRAYPLE line scan camera provides resolutions from 2K,4K, 8K to 16K. Supports data interfaces GigE, Camera Link, 10GigE, and CXP-6, enabling efficient transmission of high-frequency data and suitable for fast-paced production lines. It supports various ISPs and algorithms, making it versatile for use in industries like PV, EV, display panels, and printing.
Basic
- Series Type
- Line Scan Camera
- Sensor
- 4K - CMOS
- Shutter
- Global
- Resolution
- 4096 × 2
- Frame Rate
- 180 kHz
- Bit Depth
- 12
- Type
- Mono
- Pixel Size
- 7 μm × 7 μm
- Image Format
- Mono8/10
- Binning
- Support
- Dynamic Range
- 66 dB
- ROI
- Support
- X Flip
- Support
- Gain
- 1～32
- Exposure Time
- 4μS~100mS
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
- SPC
- Support
Performance
- User Setting
- Support two sets of user-defined configurations
Communication
- Interface
- CameraLink
- Mount
- M42
Power Supply
- Input Voltage
- 12 ~ 24V VDC power supply
- Power
- 4.5W
Environment
- Operating Temperature
- -30℃~+50℃
- Storage Temperature
- -30~80℃
Mechanical
- Dimensions
- 62 mm × 62 mm × 33.7 mm (Not including rear case connector)
- Weight
- 200 g

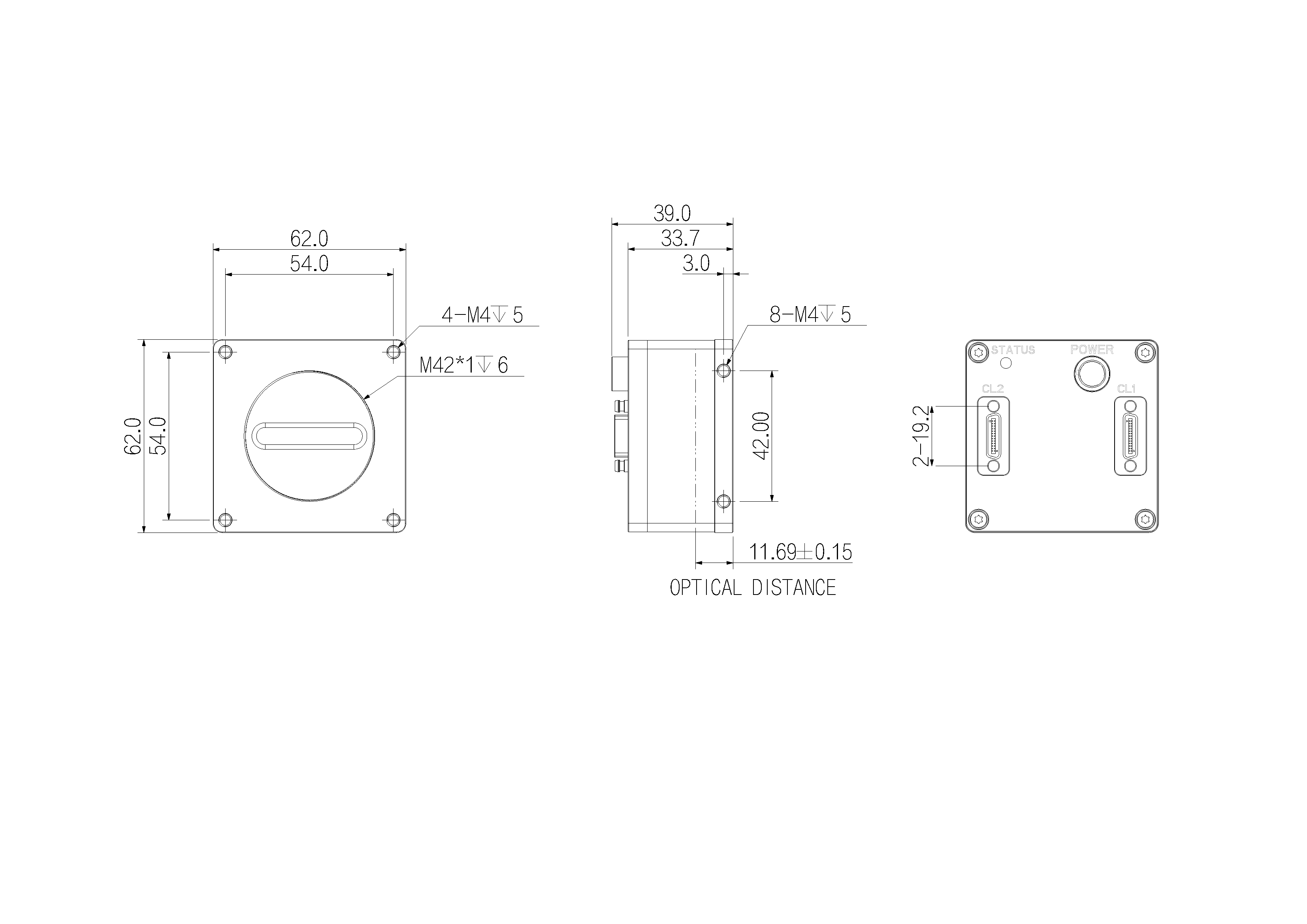

Compact housing dimensions
62 mm × 62 mm × 33.7 mm
