L5047MG100E
Line Scan 4K
The iRayple L5047MG100E is a monochrome GigE industrial camera. It is built on the (4K - CMOS) sensor with a global shutter and reads out 4096 × 2 at 29 kHz. It takes C-mount optics and connects over GigE, outputting Mono8/10/12/10P/12P at up to 12 bits. It draws 4.2 W from DC 12 ~ 24V power supply and operates from 0℃~+50℃. The body measures 29 mm × 44 mm × 57.5 mm and weighs 100 g.
- Series Type
- Line Scan Camera
- Sensor
- 4K - CMOS
- Shutter
- Global
- Resolution
- 4096 × 2
Engineered for precise industrial imaging
- The iRAYPLE line scan camera provides resolutions from 2K,4K, 8K to 16K. Supports data interfaces GigE, Camera Link, 10GigE, and CXP-6, enabling efficient transmission of high-frequency data and suitable for fast-paced production lines. It supports various ISPs and algorithms, making it versatile for use in industries like PV, EV, display panels, and printing.
- Stable hardware triggering for demanding inline inspection.
- Compact metal housing designed for industrial integration.
- Compatible with standard machine vision software workflows.
Product parameters
The resolution is 4K, the pixel size is 3.5μm, and the maximum line frequency can reach 29K; High dynamic range, good signal-to-noise ratio, and excellent image quality; Support a variety of image data format output; Support 2TDI; Support multiple ROI, FPN correction; Support Gamma, LUT, automatic black level and other ISP functions; Support software trigger/hardware trigger/free run and other trigger modes; Compatible with GigE Vision V2.0 protocol and GenICam standard; Support DC12-24V wide voltage power supply;
Basic
- Series Type
- Line Scan Camera
- Sensor
- 4K - CMOS
- Shutter
- Global
- Resolution
- 4096 × 2
- Frame Rate
- 29 kHz
- Bit Depth
- 12
- Type
- Mono
- Pixel Size
- 3.5 μm × 3.5 μm
- Image Format
- Mono8/10/12/10P/12P
- Binning
- Support
- Dynamic Range
- 65.5 dB
- ROI
- Support
- X Flip
- Support
- Gain
- 1～32
- Exposure Time
- 8μS~100mS
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
- SPC
- Support
Performance
- User Setting
- Support two sets of user-defined configurations
- Image Buffer
- 64MB image cache，64MB data cache
Communication
- Interface
- GigE
- Digital IO
- 12-pin Hirose interface for external power supply and external triggering; 2 differential/single-ended inputs, 1 differential configurable input or output, 1 high-speed optocoupler single-ended input, 1 GPIO configurable input or output
- Mount
- C-mount
Power Supply
- Input Voltage
- DC 12 ~ 24V power supply
- Power
- 4.2 W
Environment
- Operating Temperature
- 0℃~+50℃
- Storage Temperature
- -30~80℃
Mechanical
- Dimensions
- 29 mm × 44 mm × 57.5 mm (Not including rear case connector)
- Weight
- 100 g

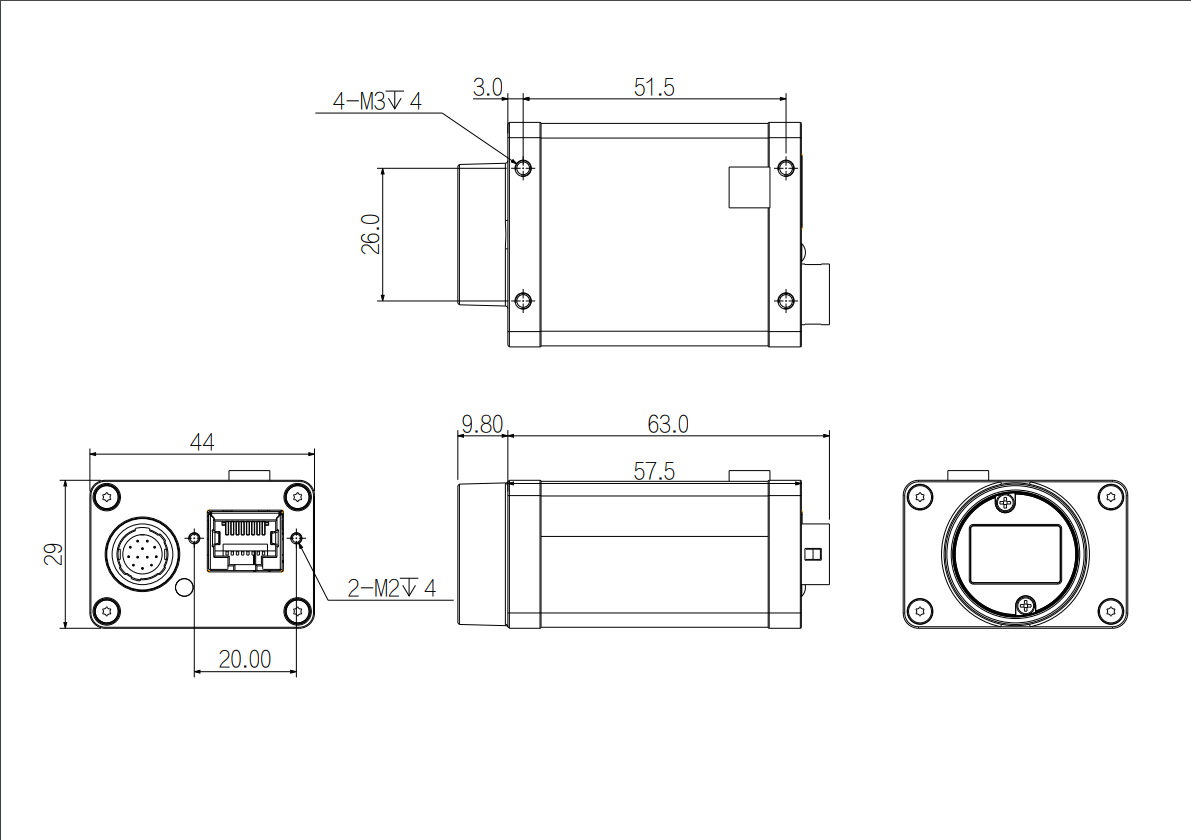

Compact housing dimensions
29 mm × 44 mm × 57.5 mm
