L5047CK440E
Line Scan 4K
The iRayple L5047CK440E is a colour Camera Link industrial camera. It is built on the (4K - CMOS) sensor with a global shutter and reads out 4096×3 at 67 kHz. It takes M42 optics and connects over Camera Link (CameraLink), outputting RGB8 at up to 12 bits. It draws 8.5 W and operates from -30℃~+50℃. The body measures 62 mm×62 mm×28 mm and weighs 155 g.
- Series Type
- Line Scan Camera
- Sensor
- 4K - CMOS
- Shutter
- Global
- Resolution
- 4096×3
In stockModel: L5047CK440E
Performance highlights
Engineered for precise industrial imaging
- CameraLink supports Full, Medium, Base and Deca mode with maximum 6.8Gbps bandwidth
- Supports external trigger, free run mode and multiple modes
- Supports Gamma correction, LUT and other ISP functions
- Applies DC 24V power supply
- Compatible with Cameralink protocol and GenICam standard
- Comply with CE, UL, RoHS certifications
- True color RGB mode .
Technical data
Product parameters
The iRAYPLE line scan camera provides resolutions from 2K,4K, 8K to 16K. Supports data interfaces GigE, Camera Link, 10GigE, and CXP-6, enabling efficient transmission of high-frequency data and suitable for fast-paced production lines. It supports various ISPs and algorithms, making it versatile for use in industries like PV, EV, display panels, and printing.
Basic
- Series Type
- Line Scan Camera
- Sensor
- 4K - CMOS
- Shutter
- Global
- Resolution
- 4096×3
- Frame Rate
- 67 kHz
- Bit Depth
- 12
- Type
- Color
- Pixel Size
- 7 μm × 7 μm
- Image Format
- RGB8
- Binning
- Support
- Dynamic Range
- 63.3 dB
- ROI
- Support
- X Flip
- Support
- Gain
- 1～32
- Exposure Time
- 4μS~100mS
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
Performance
- User Setting
- Support two sets of user-defined configurations
Communication
- Interface
- CameraLink
- Mount
- M42
Power Supply
- Input Voltage
- DC 12 ~ 24V power supply via the 12-pin Hirose interface
- Power
- 8.5 W
Environment
- Operating Temperature
- -30℃~+50℃
- Storage Temperature
- -30~80℃
Mechanical
- Dimensions
- 62 mm×62 mm×28 mm(Not including rear case connector)
- Weight
- 155 g

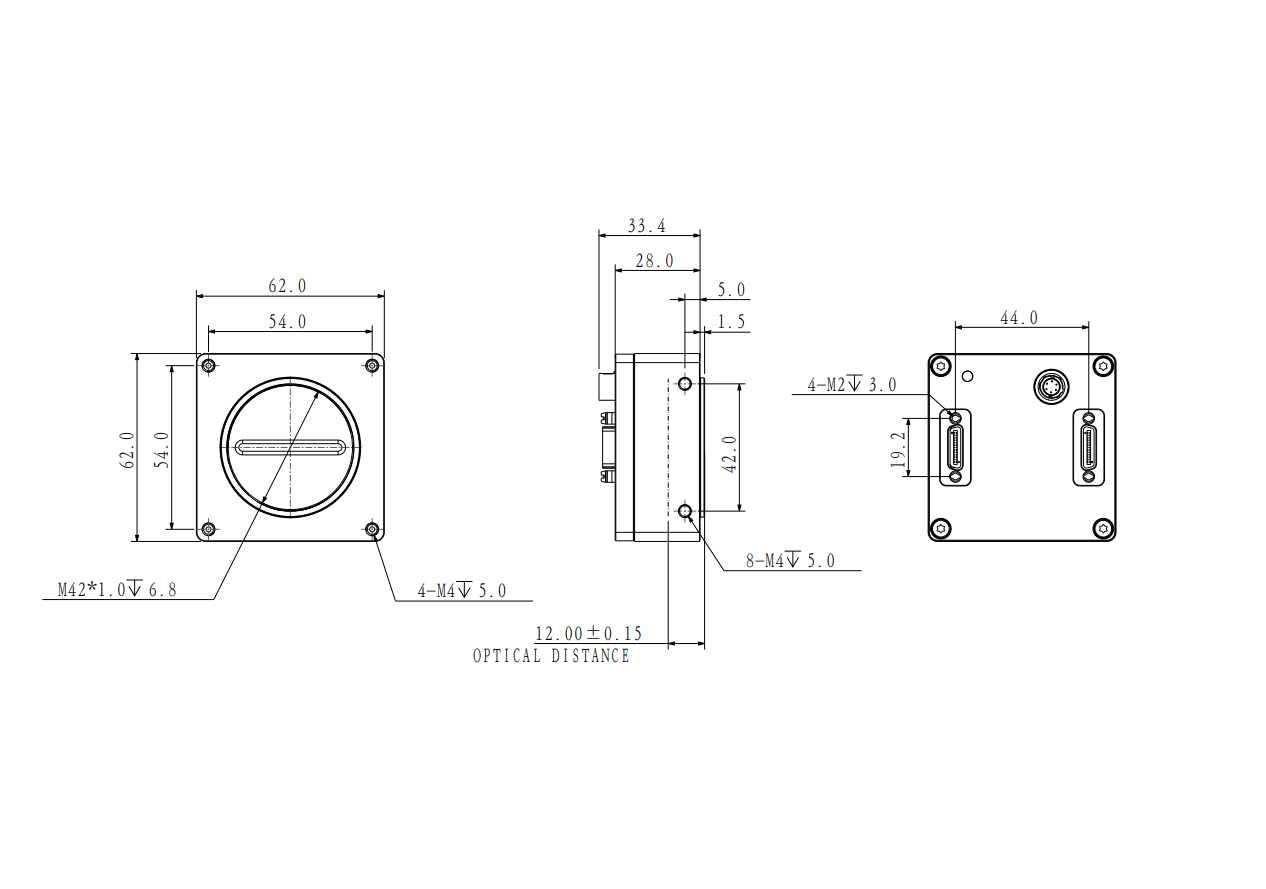

Mechanical drawing
Compact housing dimensions
62 mm×62 mm×28 mm
