Industrial Camera
iRayple · Industrial Camera
L5047CK141E
Line Scan 4K
The iRayple L5047CK141E is a colour Camera Link industrial camera. It is built on the (4K - CMOS) sensor with a global shutter and reads out 4096 × 2 at 92 kHz. It takes M42 optics and connects over Camera Link (CameraLink), outputting BayerRG8,RGB8 at up to 12 bits. It draws 4.5W from DC 12 ~ 24V power supply and operates from -30℃~+50℃. The body measures 62 mm × 62 mm × 33.7 mm and weighs 200 g.
- Series Type
- Line Scan Camera
- Sensor
- 4K - CMOS
- Shutter
- Global
- Resolution
- 4096 × 2
In stockModel: L5047CK141E
Performance highlights
Engineered for precise industrial imaging
- Support brightness enhancement, gamma correction, LUT and other ISP functions
- Support PRNU correction in target bright field
- Support various image formats of output data
- Support DC12~24V wide-range power supply
- Conform to CE, UL, RoHS certifications
Technical data
Product parameters
Basic
- Series Type
- Line Scan Camera
- Sensor
- 4K - CMOS
- Shutter
- Global
- Resolution
- 4096 × 2
- Frame Rate
- 92 kHz
- Bit Depth
- 12
- Type
- Color
- Pixel Size
- 7 μm × 7 μm
- Image Format
- BayerRG8,RGB8
- Binning
- Support
- Dynamic Range
- 66 dB
- ROI
- Support
- X Flip
- Support
- Gain
- 1～32
- Exposure Time
- 4μS~100mS
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
- SPC
- Support
Performance
- User Setting
- Support two sets of user-defined configurations
Communication
- Interface
- CameraLink
- Mount
- M42
Power Supply
- Input Voltage
- DC 12 ~ 24V power supply
- Power
- 4.5W
Environment
- Operating Temperature
- -30℃~+50℃
- Storage Temperature
- -30~80℃
Mechanical
- Dimensions
- 62 mm × 62 mm × 33.7 mm (Not including rear case connector)
- Weight
- 200 g

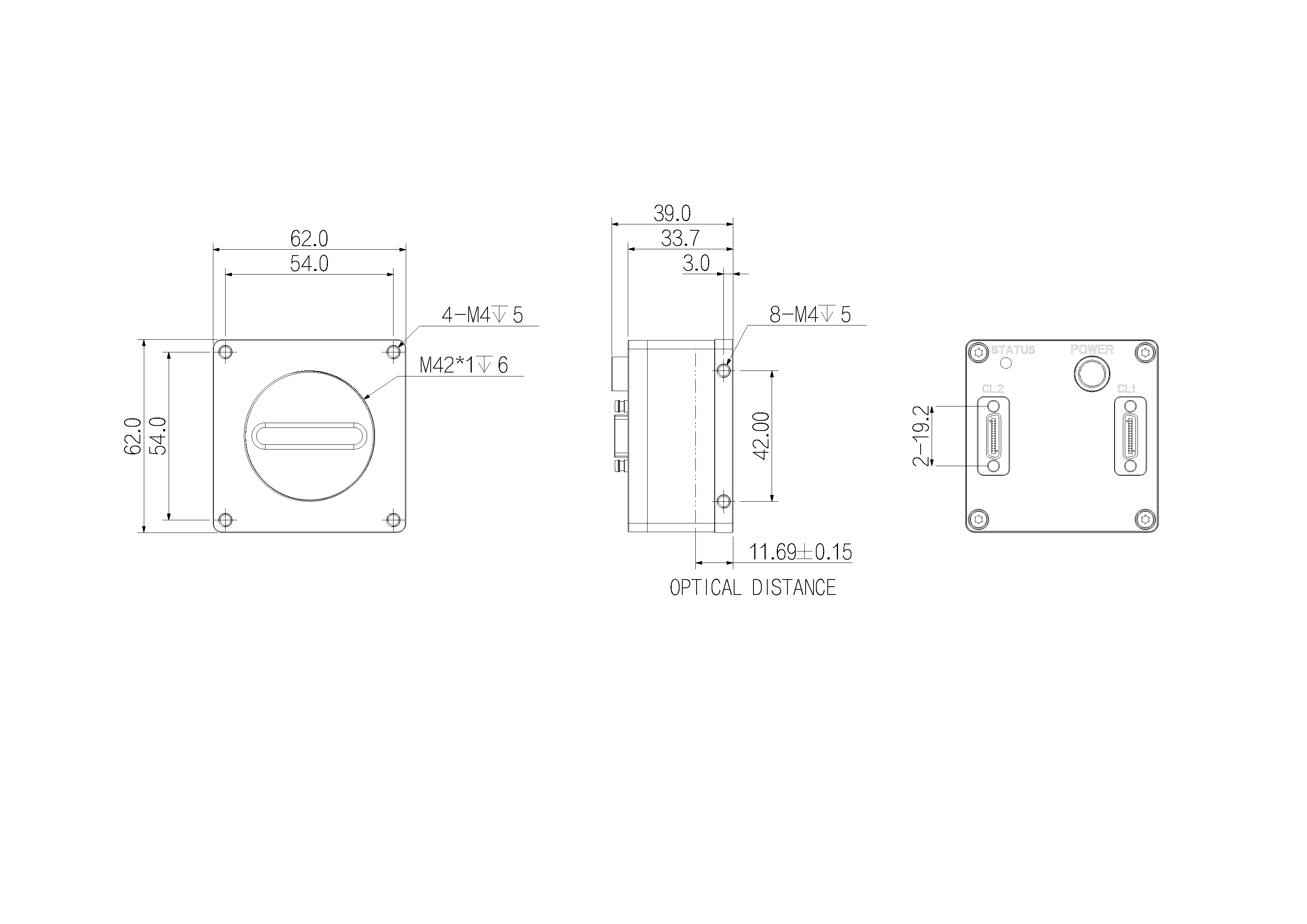

Mechanical drawing
Compact housing dimensions
62 mm × 62 mm × 33.7 mm
