L5047CG140E
Line Scan 4K
The iRayple L5047CG140E is a monochrome GigE industrial camera. It is built on the (4K - CMOS) sensor with a global shutter and reads out 4096 × 2 at 28 kHz. It takes M42 x 1 optics and connects over GigE. It draws 4.5 W and operates from 0℃~+50℃. The body measures 62 mm × 62 mm × 44 mm and weighs 245 g.
- Series Type
- Line Scan Camera
- Sensor
- 4K - CMOS
- Shutter
- Global
- Resolution
- 4096 × 2
In stockModel: L5047CG140E
Performance highlights
Engineered for precise industrial imaging
- Support brightness enhancement, gamma correction, LUT and other ISP functions
- Support PRNU correction in target bright field
- Support various image formats of output data
- Support DC12~24V wide-range power supply
- Conform to CE, UL, RoHS certifications
Technical data
Product parameters
The iRAYPLE line scan camera provides resolutions from 2K,4K, 8K to 16K. Supports data interfaces GigE, Camera Link, 10GigE, and CXP-6, enabling efficient transmission of high-frequency data and suitable for fast-paced production lines. It supports various ISPs and algorithms, making it versatile for use in industries like PV, EV, display panels, and printing.
Basic
- Series Type
- Line Scan Camera
- Sensor
- 4K - CMOS
- Shutter
- Global
- Resolution
- 4096 × 2
- Frame Rate
- 28 kHz
- Bit Depth
- 12
- Type
- Mono
- Pixel Size
- 3.5 μm × 3.5 μm
- Image Format
- BayerRG8/BayerRG10/BayerRG12/RGB8Packed/YUV422Packed
- Binning
- Support
- Dynamic Range
- 65.5 dB
- ROI
- Support
- X Flip
- Support
- Gain
- 1～32
- Exposure Time
- 8μS~100mS
- Trigger Mode
- Software Trigger/Hardware Trigger/Free Run Mode
- SPC
- Support
Performance
- User Setting
- Support two sets of user-defined configurations
- Image Buffer
- 64MB image cache，64MB data cache
Communication
- Interface
- GigE
- Digital IO
- 12-pin Hirose interface for external power supply and external triggering; 2 differential/single-ended inputs, 1 differential configurable input or output, 1 high-speed optocoupler single-ended input, 1 GPIO configurable input or output
- Mount
- M42 x 1
Power Supply
- Input Voltage
- DC 12 ~ 24V power supply via the 12-pin Hirose interface
- Power
- 4.5 W
Environment
- Operating Temperature
- 0℃~+50℃
- Storage Temperature
- -30~80℃
Mechanical
- Dimensions
- 62 mm × 62 mm × 44 mm (Not including rear case connector)
- Weight
- 245 g

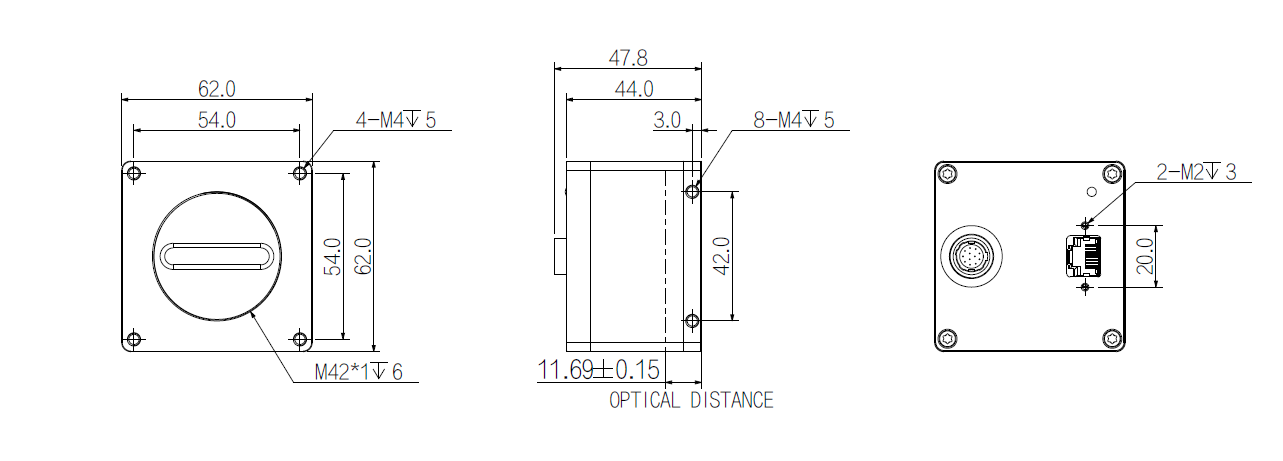

Mechanical drawing
Compact housing dimensions
62 mm × 62 mm × 44 mm
