GX-7HD40E

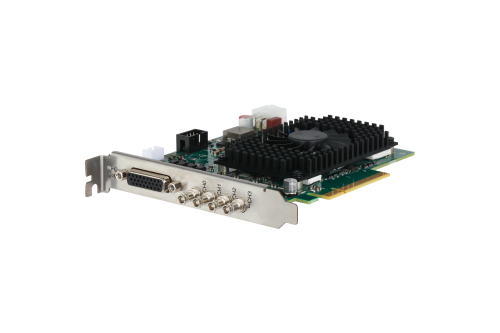

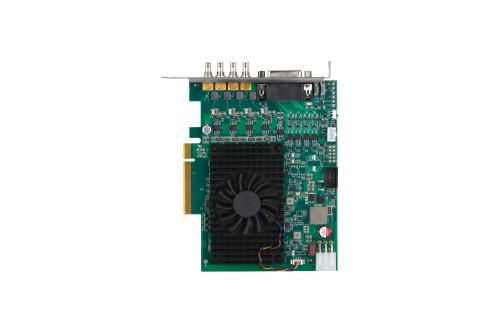

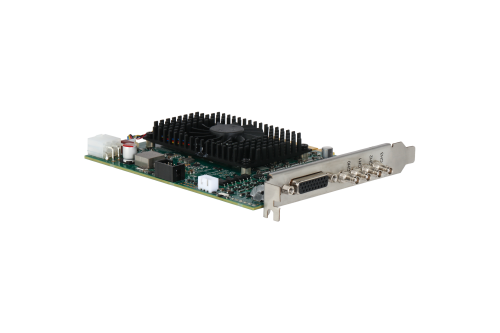

Coa-Xpress Card
The iRayple GX-7HD40E is a CXP-12 Frame Grabber vision component. Rated specifications: Series CXP-12 Frame Grabber. It runs on PCIe Power Supply/ATX 6-pin Connector and operates from 0℃~+50℃ (+32°F~+122°F). The body measures 151.1mm×126.3mm×21.6mm and weighs 200g.
- Series
- CXP-12 Frame Grabber
- Model
- GX-7HD40E
- CPU
- 8GT/s（PCIe 3.0） - Support: 7800 MB/s (Peak Bandwidth), 6700 MB/s (Sustained Bandwidth)
- Type
- CoaXPress 2.0/2.1 - Support: CXP-12/CXP-6 Industrial Camera
In stockModel: GX-7HD40E
Performance highlights
Engineered for precise industrial imaging
- Supports up to 4 cameras connected simultaneously - 4x HD-BNC: 1.25/2.5/3.125/5/6.25/10/12.5 Gbps（CXP-1/2/3/5/6/10/12）
- Supports the CoaXPress 2.0/ 2.1.
- Pixel Format: Mono 8/10/12/16 Bayer 8/10/12/16 RGB 8
- Supports multiple IO ports.
Technical data
Product parameters
The acquisition card is an indispensable component in a machine vision system. iRAYPLE offers acquisition card products with different interfaces to provide customers with a full range of vision application solutions and product selection services.
System Parameter
- Series
- CXP-12 Frame Grabber
- Model
- GX-7HD40E
- CPU
- 8GT/s（PCIe 3.0） - Support: 7800 MB/s (Peak Bandwidth), 6700 MB/s (Sustained Bandwidth)
- Type
- CoaXPress 2.0/2.1 - Support: CXP-12/CXP-6 Industrial Camera
Internal Module
- PCIe
- PCIe Gen3 ×8
OS
- System OS
- Windows 7/10/11 64bits - Support Software: MV Viewer
Power Supply
- Input Voltage
- PCIe Power Supply/ATX 6-pin Connector
- Power
- 20W (without PoCXP) - Output: Supports the PoCXP. Each channel can supply up to 13W@24VDC power. You shall provide the 12 VDC power supply to the ATX 6-Pin connector
Certificates
- Certificates Support
- CE, UKCA, KC
Environment
- Operating Temperature
- 0℃~+50℃ (+32°F~+122°F)
- Storage Temperature
- -20℃~+70℃ (-4°F~+158°F)
- Relative Humidity
- 10% ~ 90%RH ,non-condensing
Mechanical
- Dimensions
- 151.1mm×126.3mm×21.6mm
- Weight
- 200g

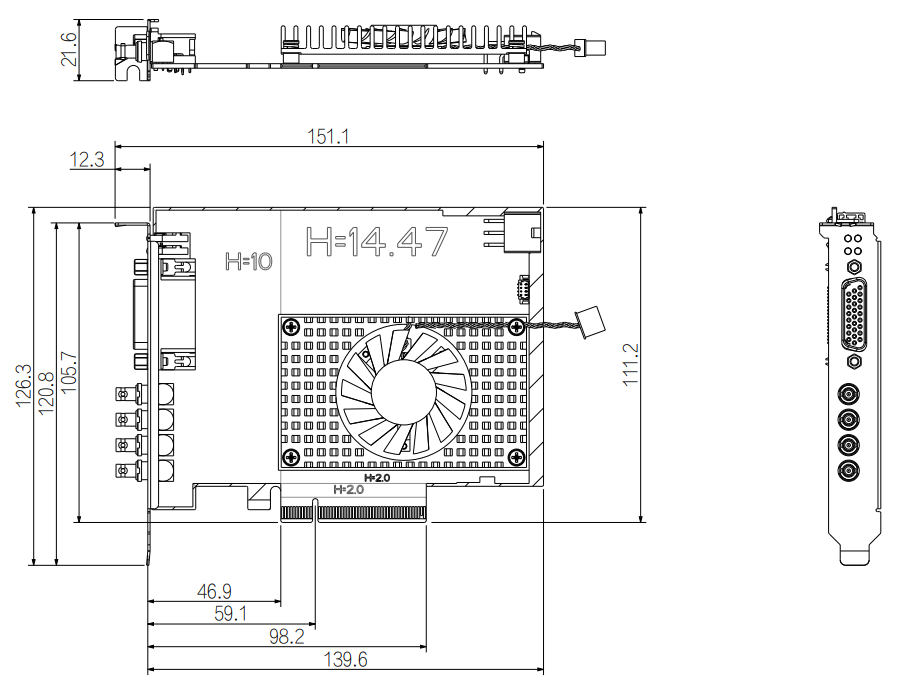

Mechanical drawing
Compact housing dimensions
151.1mm×126.3mm×21.6mm
