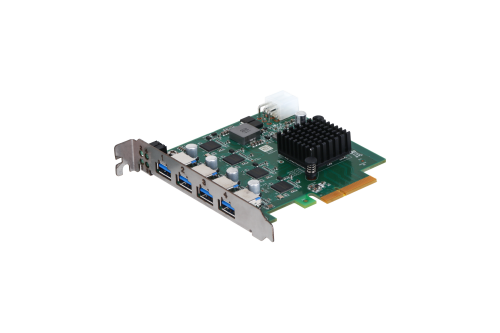

GU3-5U41RE
USB Card
The iRayple GU3-5U41RE is a USB3.0 Extend card vision component. Rated specifications: Series USB3.0 Extend card, System OS Windows7/10，linux. It draws <25W from 6-pin ATX and operates from 0~50℃. The body measures 111.2mm×120.8mm×21.6mm and weighs 78g.
- Series
- USB3.0 Extend card
- Model
- GU3-5U41RE
- CPU
- 5 Gbps（The actual speed is 2.9 Gbps）
- Type
- 4 × USB Type-A
In stockModel: GU3-5U41RE
Performance highlights
Engineered for precise industrial imaging
- 4 USB3.0 type-A ports
- Compatible with PCIE X4 CARD SLOTS
- Compatible with USB2.0, USB1.1 mode
- The maximum transfer rate can reach 5Gbps under USB3.0 mode
Technical data
Product parameters
The acquisition card is an indispensable component in a machine vision system. iRAYPLE offers acquisition card products with different interfaces to provide customers with a full range of vision application solutions and product selection services.
System Parameter
- Series
- USB3.0 Extend card
- Model
- GU3-5U41RE
- CPU
- 5 Gbps（The actual speed is 2.9 Gbps）
- Type
- 4 × USB Type-A
- USB Port
- 4 Channels
Internal Module
- PCIe
- PCIe Gen2 X4
OS
- System OS
- Windows7/10，linux
Power Supply
- Input Voltage
- 6-pin ATX
- Power
- <25W
Environment
- Operating Temperature
- 0~50℃
- Storage Temperature
- -20~70℃
- Relative Humidity
- 10% ~ 90%RH ,non-condensing
Mechanical
- Dimensions
- 111.2mm×120.8mm×21.6mm
- Weight
- 78g

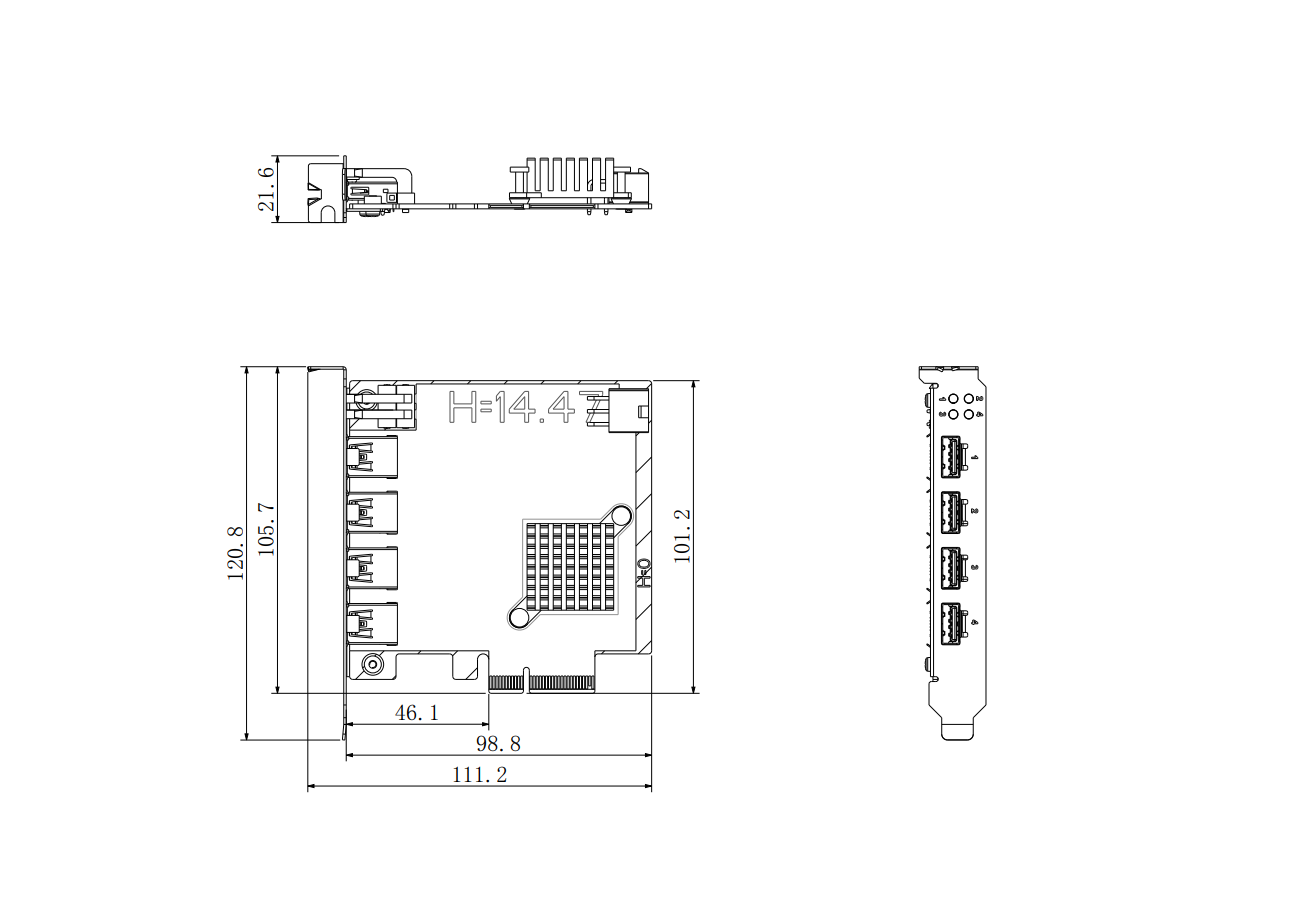

Mechanical drawing
Compact housing dimensions
111.2mm×120.8mm×21.6mm
