GT-7G10E
10 GigE

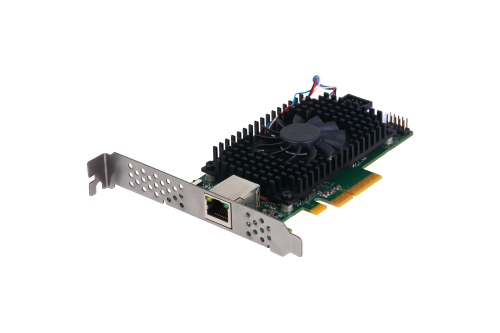

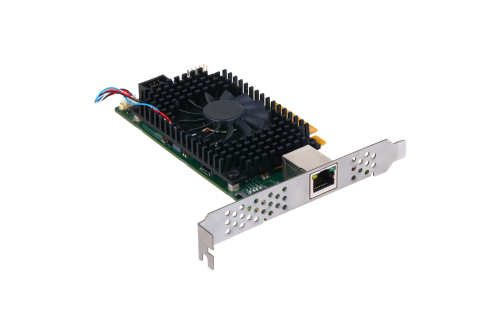

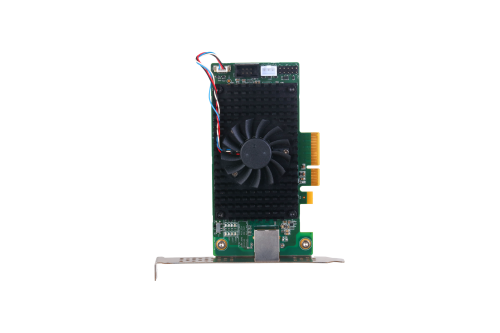

The iRayple GT-7G10E is a 10Gige Frame Grabber vision component. Rated specifications: Series 10Gige Frame Grabber, System OS Windows7/10/11 64bits. It draws 9W from PCI-e and operates from 0~50℃. The body measures 137.5mm×120.8mm×21.6mm and weighs 0.35kg.
- Series
- 10Gige Frame Grabber
- Model
- GT-7G10E
- CPU
- GigE industrial camera; 10GigE industrial camera
- Ethernet Port
- 1 channels - Support: 100Mbps; 1Gbps; 2.5Gbps; 10Gbps
In stockModel: GT-7G10E
Performance highlights
Engineered for precise industrial imaging
- Support One network interface, providing a maximum bandwidth of 10Gbps and a maximum transmission distance of 100m
- Port status indicator, real-time feedback of network port status
- Built-in data processing control chip to reduce CPU utilization
- Conform to CE, KC
Technical data
Product parameters
The acquisition card is an indispensable component in a machine vision system. iRAYPLE offers acquisition card products with different interfaces to provide customers with a full range of vision application solutions and product selection services.
System Parameter
- Series
- 10Gige Frame Grabber
- Model
- GT-7G10E
- CPU
- GigE industrial camera; 10GigE industrial camera
- Ethernet Port
- 1 channels - Support: 100Mbps; 1Gbps; 2.5Gbps; 10Gbps
Internal Module
- PCIe
- PCI-E Gen2 x4
OS
- System OS
- Windows7/10/11 64bits
Power Supply
- Input Voltage
- PCI-e
- Power
- 9W
Environment
- Operating Temperature
- 0~50℃
- Storage Temperature
- -20~70℃
- Relative Humidity
- 10% ~ 90%RH ,non-condensing
Mechanical
- Dimensions
- 137.5mm×120.8mm×21.6mm
- Weight
- 0.35kg

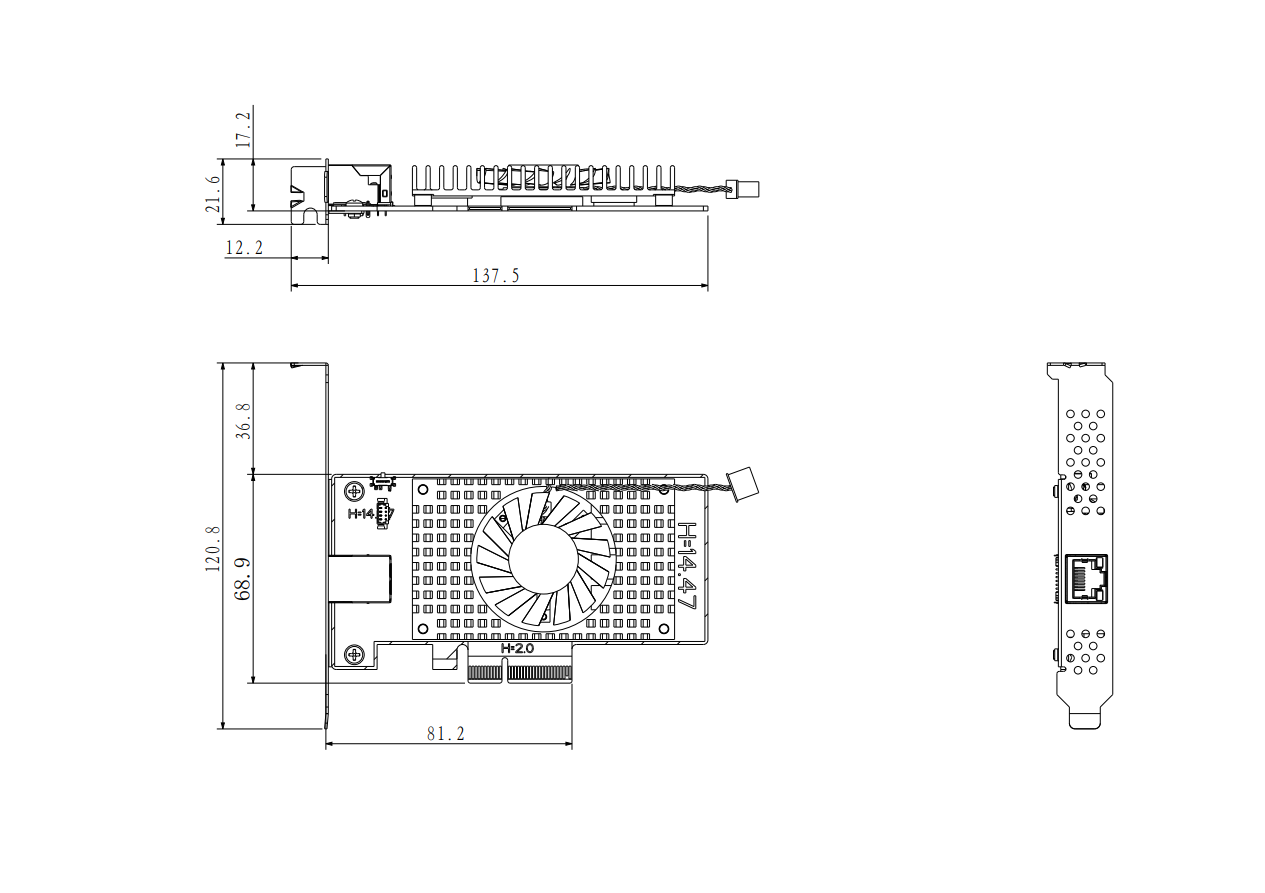

Mechanical drawing
Compact housing dimensions
137.5mm×120.8mm×21.6mm
